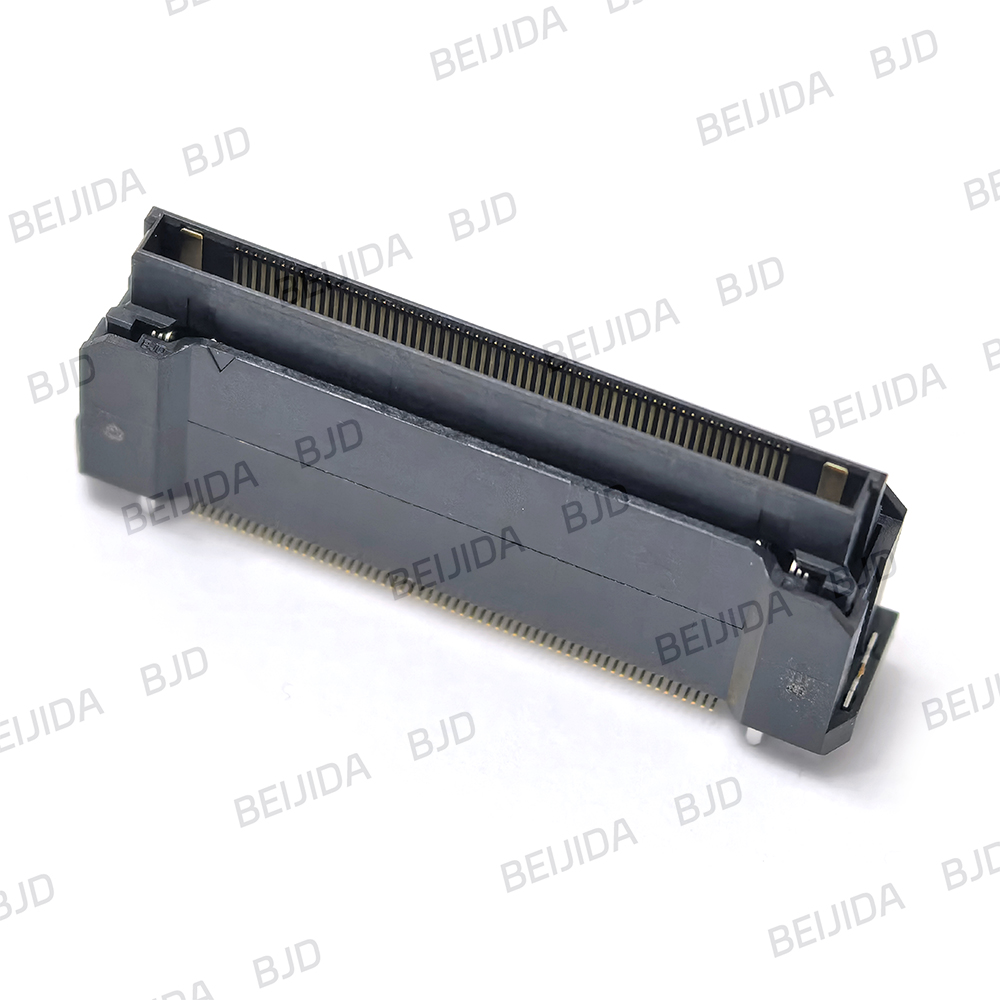

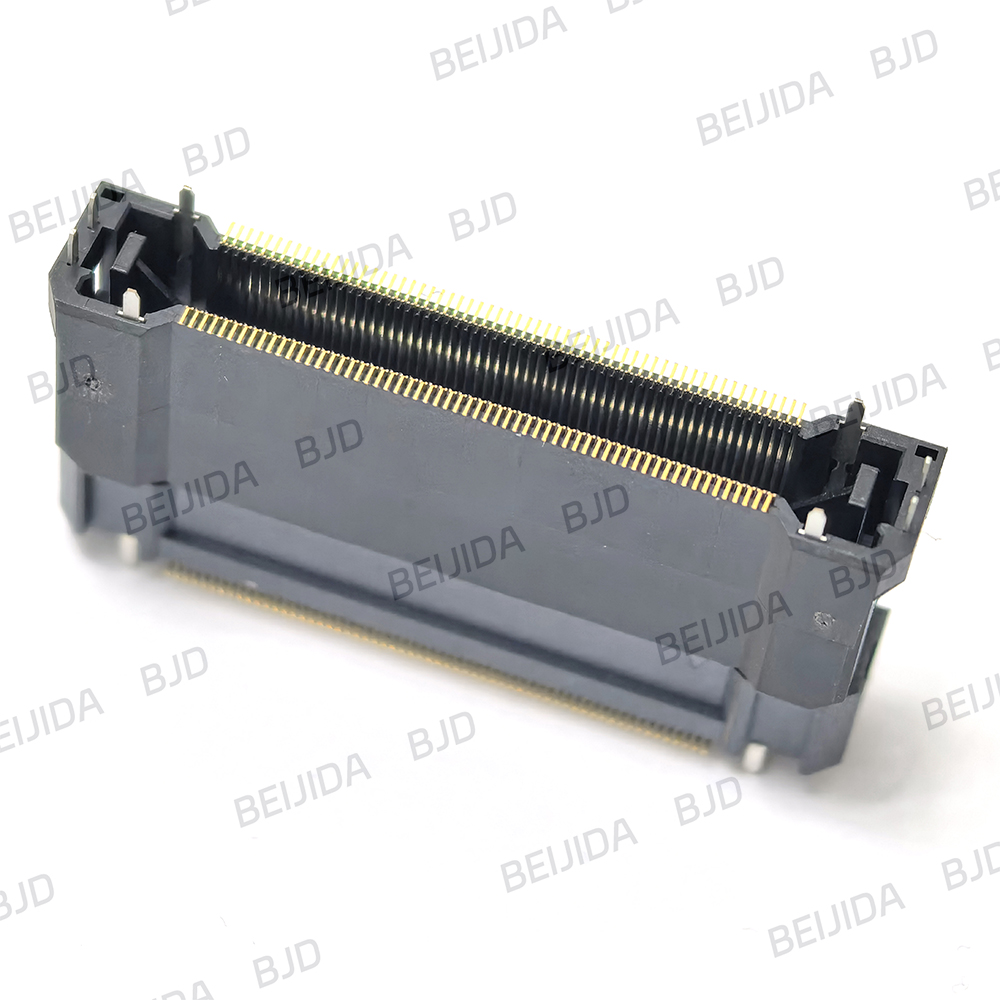

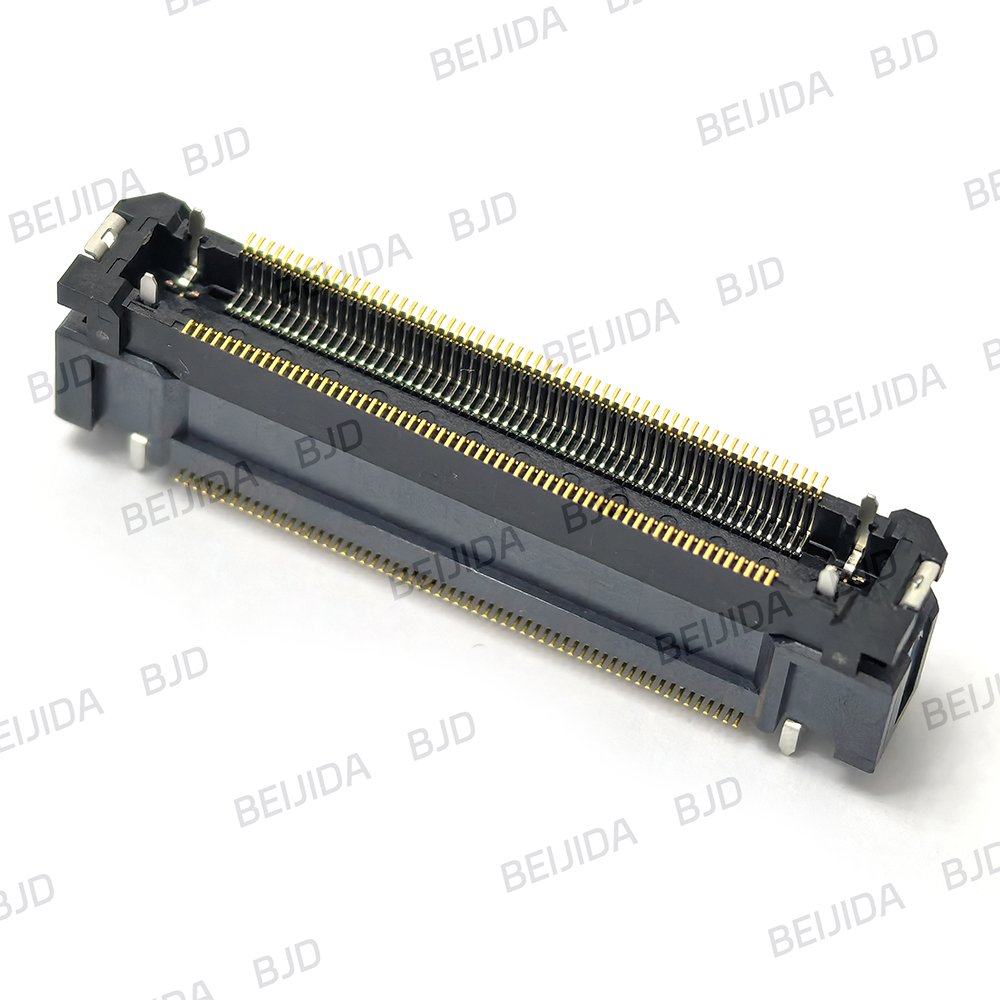

相关参数
-
PIN数
20P，30P，40P，50P，60P，80P，100P，120P
-
间距
0.5 mm
-
嵌合高度
8, 10, 12, 14, 15, 19, 20, 25, 30 mm
-
浮动范围
XY ± 0.6 mm；XY ± 1.2 mm（双浮动）
-
安装方式
THR, SMT
-
额定电流
0.5 A
-
额定电压
50 V
-
使用温度范围
-55℃ ~ 105℃
-
传输速度
8 Gbps
-
传输规格
PCI-Express 3.0
-
电源端子数
4
-
兼容替代
HRS FX23 Series；Amphenol B329，B324，B322 Series；HRS FX23L
配对选型与图纸
|
非浮动端 →
浮动端 ↓
|
0.5-5D-SMT123048-60XX50-HF 2D图纸 0.5-5D-THR123042-60XX50-HF | 0.5-5E-SMT123049-60XX50-HF 2D图纸 0.5-5E-THR123043-60XX50-HF 2D图纸 | 0.5-5B-THR123040-60XX50-HF 2D图纸 | 0.5-5F-SMT123050-60XX50-HF | 0.5-5C-THR123038-60XX50-HF 2D图纸 |
|---|---|---|---|---|---|
| 0.5-5A-SMT123045-60XX50-HF 2D图纸 0.5-5A-THR123041-60XX50-HF 2D图纸 | 0.5-5A-SMT×0.5-5D-SMT 0.5-5A-THR×0.5-5D-THR | 0.5-5A-SMT×0.5-5E-SMT 0.5-5A-THR×0.5-5E-THR | - | 0.5-5A-SMT×0.5-5F-SMT | - |
| 0.5-5G-THR123037-60XX50 2D图纸 | - | - | 0.5-5G-THR×0.5-5B-THR | 0.5-5G-THR×0.5-5C-THR | |
| 0.5-5H-THR123039-60XX50 2D图纸 | - | - | 0.5-5H-THR×0.5-5B-THR | 0.5-5H-THR×0.5-5C-THR |
