Board to Board Connector
Floating board-to-board connectors keep signal and power transmission stable under vibration, movement, and thermal expansion.
FILTER
-
Product Series
0.4 mm Floating Board-to-Board Series
BTB1.8-1 Series
B3501 Series
BTB0.8-12 Series
TB101/TB201 Series
B0813 Floating Series
0.5-8 High-speed Transmission Floating Series
0.8 Floating Series
0.635 Floating Series
0.5-6 Floating Series
0.5-5 Floating Series
-
Pitch
0.5 mm
0.8 mm
0.635 mm
0.4 mm
3.5 mm
-
Floating Range
Non-floating
—
XY ± 0.6 mm
XY ± 0.8 mm
XY ± 0.5 mm
X/Y/Z: ±1.0 mm
X/Y: ±0.8 mm; Z: ±0.5 mm
XY ± 0.7 mm
— (not applicable)
XY ± 0.4 mm
-
Connection Orientation
Straight (ST)
Right Angle (RA)
Right angle
Vertical
ST (straight)
-
Connector Type
Plug
Receptacle
Board-to-board receptacle
Apply
-
- 0.4 mm pitch with a 3 mm mating height
- XY ±0.4 mm floating tolerance helps absorb board misalignment
- 20, 30, 40, 50 and 60 contact options
- Vertical SMT connection
- Data rates up to 8 Gbps
- Operating temperature range from -40°C to 125°CExplore now
Specifications
Connector Type
Mating Part Number
Material
Pin Count
20, 30, 40, 50, 60
Pitch
0.4 mm
Mated Height
3 mm
Floating Range
XY ±0.4 mm
Connection Orientation
Soldering Process
SMT
Rated Current
0.4 A
Rated Voltage
50 V
Withstand Voltage
Operating Temperature Range
-40°C to 125°C
Transmission Rate
8 Gbps
Supported Protocol
Power Terminals
0
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
IRISO 10126S, 10126B
Note
-
The BTB1.8-1 Series comprises dual-row floating connectors with a 1.8 mm pitch. The 8-contact receptacle uses SMT mounting and provides ±0.5 mm of floating movement in both the X and Y directions to compensate for assembly misalignment with the mating plug, facilitating assembly in compact modules. The operating temperature range is −40°C to 125°C, including temperature rise due to current flow.
Explore now
Specifications
Connector Type
Board-to-board receptacle series
Mating Part Number
Material
Pin Count
Pitch
Mated Height
Floating Range
Connection Orientation
ST (straight)
Soldering Process
SMT
Rated Current
Rated Voltage
Withstand Voltage
Operating Temperature Range
Transmission Rate
Supported Protocol
Power Terminals
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
IRISO 18033
Note
-

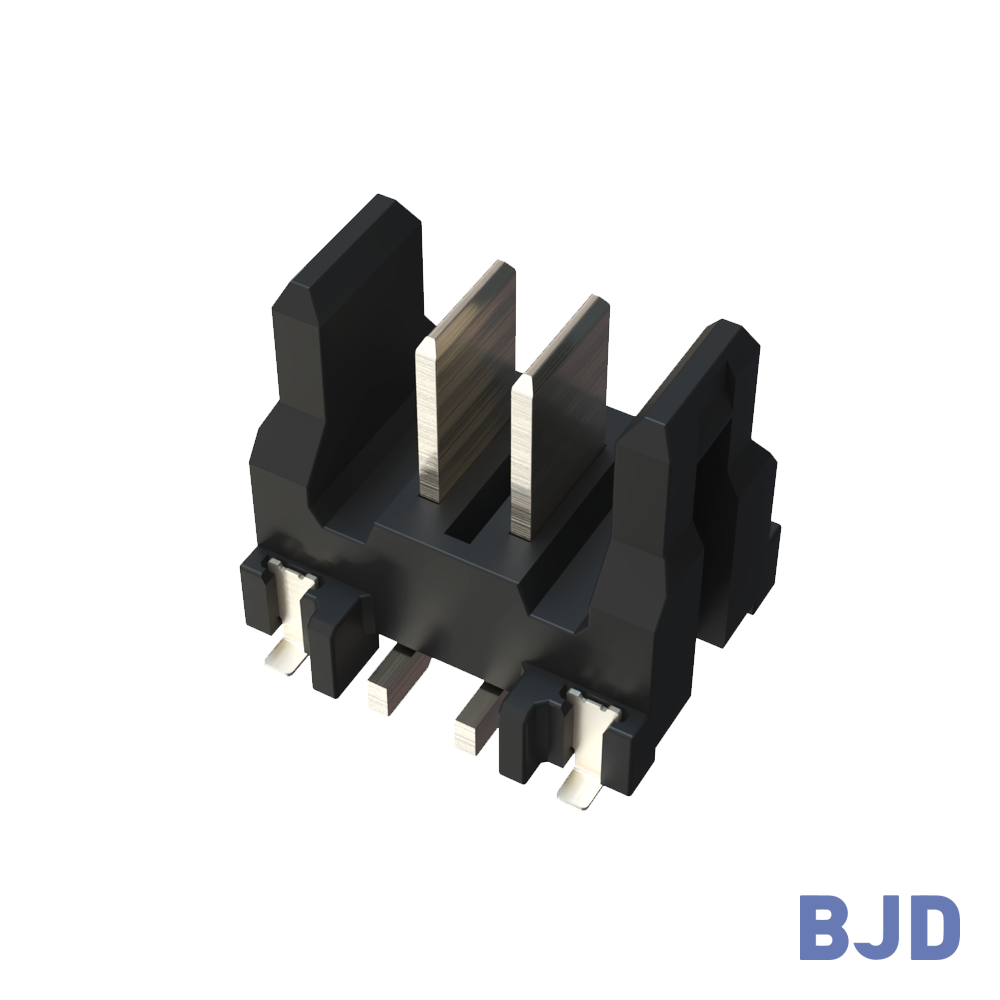

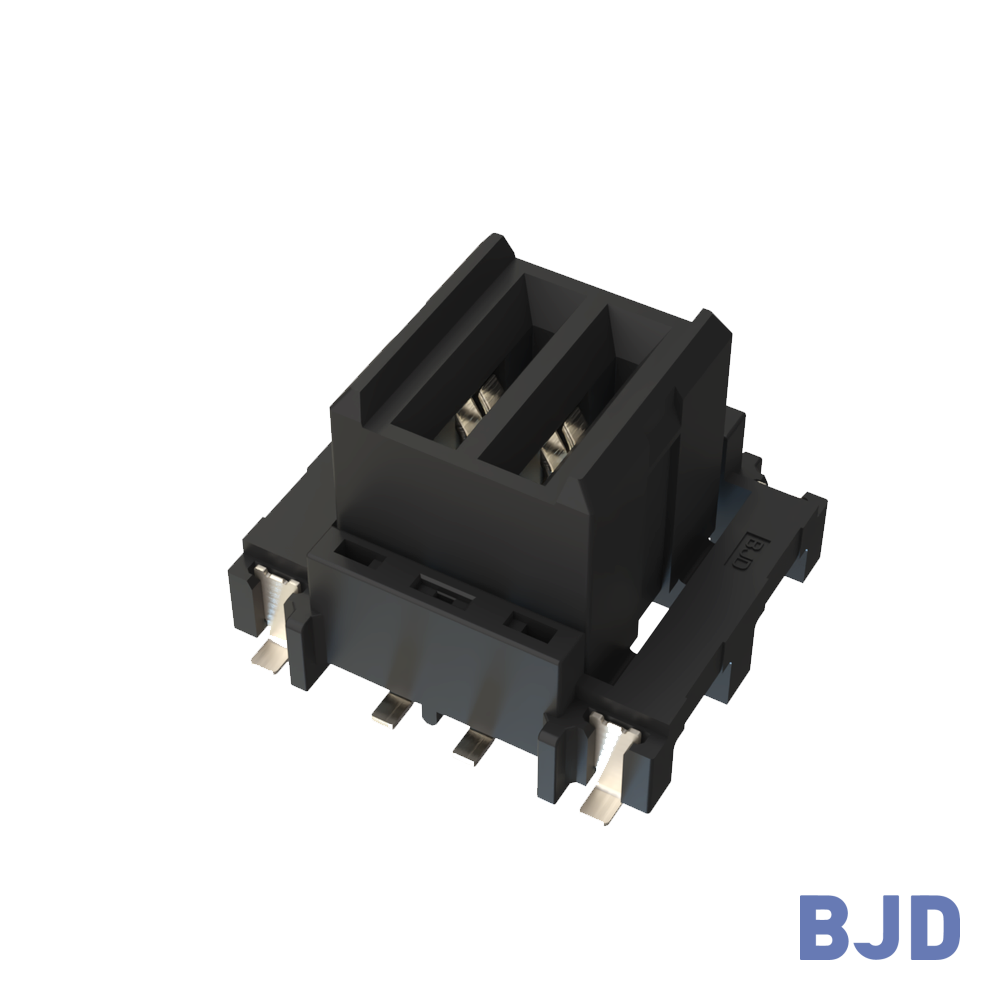

The B3501 Series is a 3.5 mm-pitch, 2-position, 25 mm mated-height, 30 A floating board-to-board connector system comprising a plug and receptacle.
Explore now
Specifications
Connector Type
Plug + receptacle
Mating Part Number
Material
Pin Count
2
Pitch
3.5 mm
Mated Height
25 mm
Floating Range
X/Y/Z: ±1.0 mm
Connection Orientation
Vertical
Soldering Process
SMT
Rated Current
30 A
Rated Voltage
400 V AC/DC
Withstand Voltage
1000 V AC/min
Operating Temperature Range
−40°C to +125°C
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
Note
-
The BTB0.8-12 Series is a 0.8 mm-pitch, 44/124-position right-angle SMT board-to-board connector system comprising a plug and receptacle.
Explore now
Specifications
Connector Type
Plug + receptacle
Mating Part Number
Material
Pin Count
44 or 124 (40 or 120 signal + 4 power)
Pitch
0.8 mm
Mated Height
Floating Range
Connection Orientation
Right-angle
Soldering Process
SMT
Rated Current
Signal: 0.5 A; power: 5 A max/pin
Rated Voltage
100 V AC max
Withstand Voltage
300 V AC/min
Operating Temperature Range
−55°C to +105°C
Transmission Rate
Supported Protocol
Power Terminals
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
Note
-

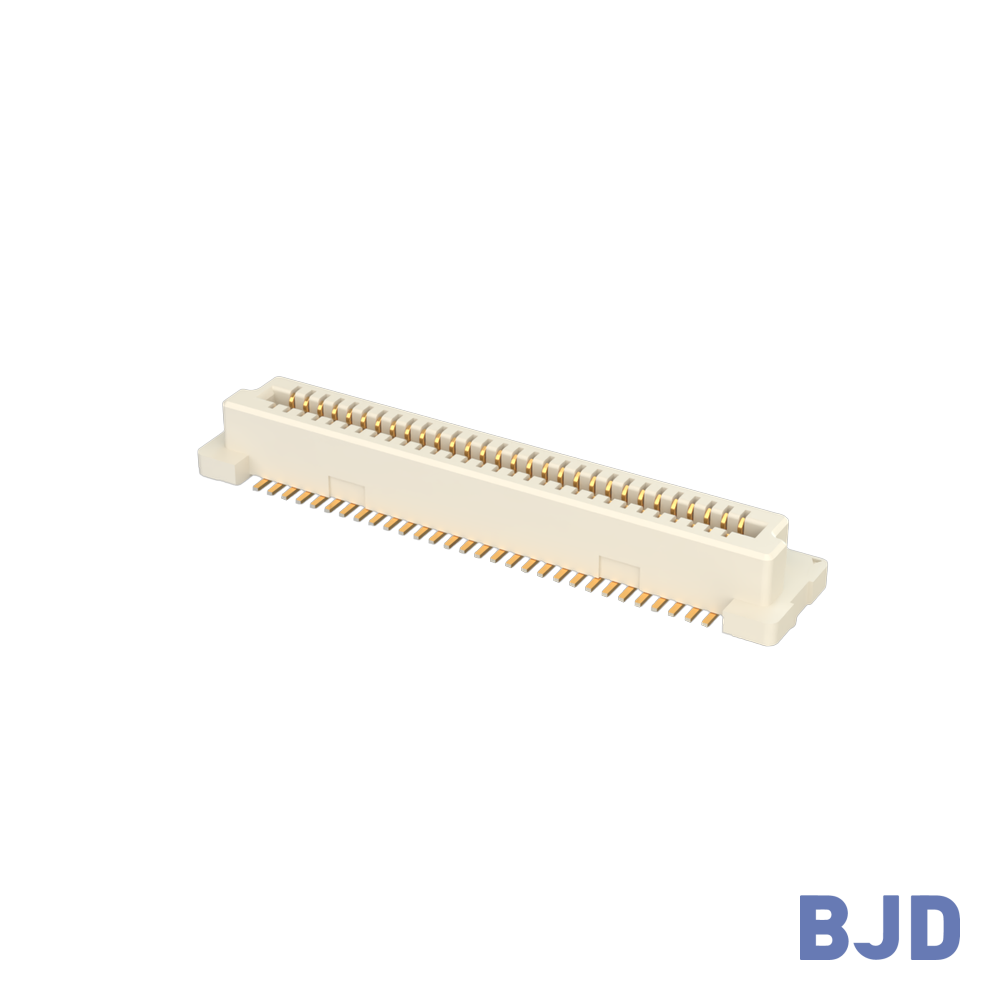

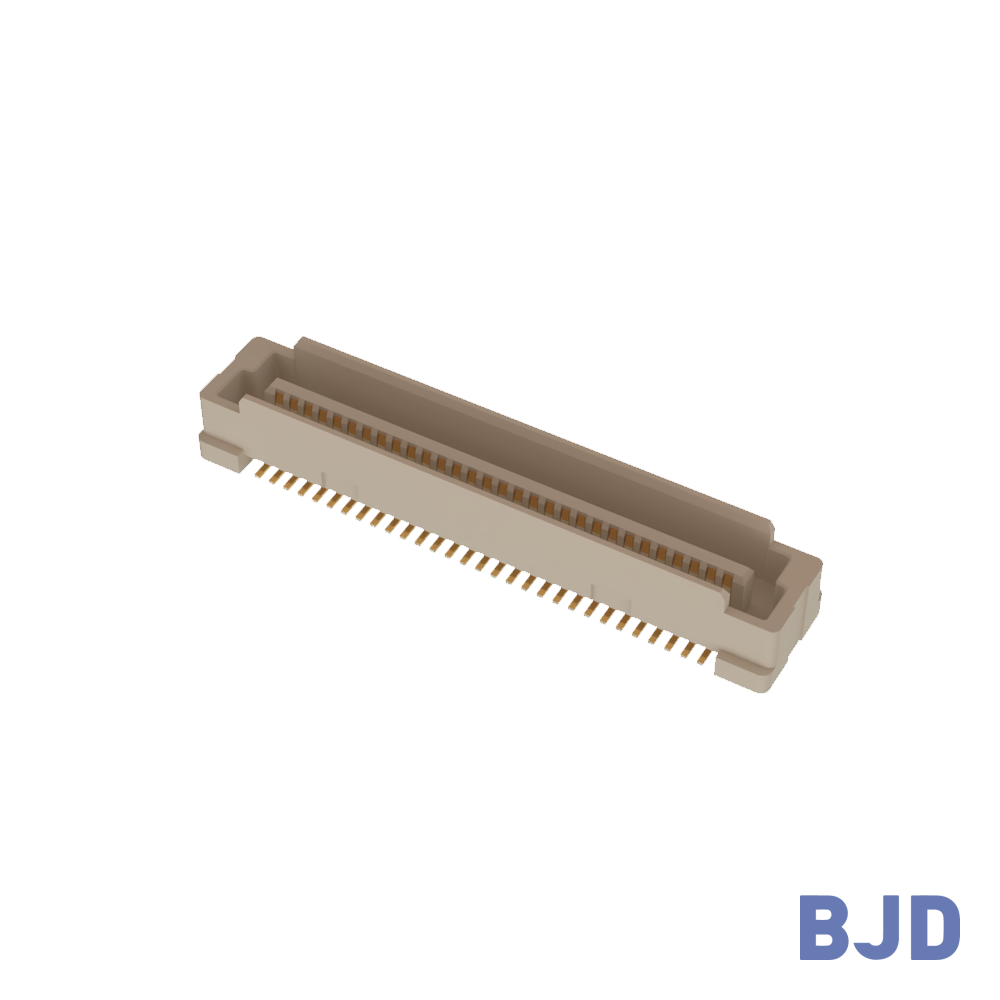

The TB101/TB201 Series is a 0.8 mm pitch, 120-position SMT board-to-board connector family with a 5 mm mated height. It comprises a TB101 plug and TB201 receptacle, rated at 0.5 A and 100 V AC/DC, with an operating temperature range of −40°C to +105°C.
Explore now
Specifications
Connector Type
Mating Part Number
Material
Pin Count
120
Pitch
0.8 mm
Mated Height
5 mm
Floating Range
Connection Orientation
Soldering Process
SMT
Rated Current
0.5 A
Rated Voltage
100 V AC/DC
Withstand Voltage
AC 500 V/min
Operating Temperature Range
−40°C to +105°C
Transmission Rate
Supported Protocol
Power Terminals
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
Note
