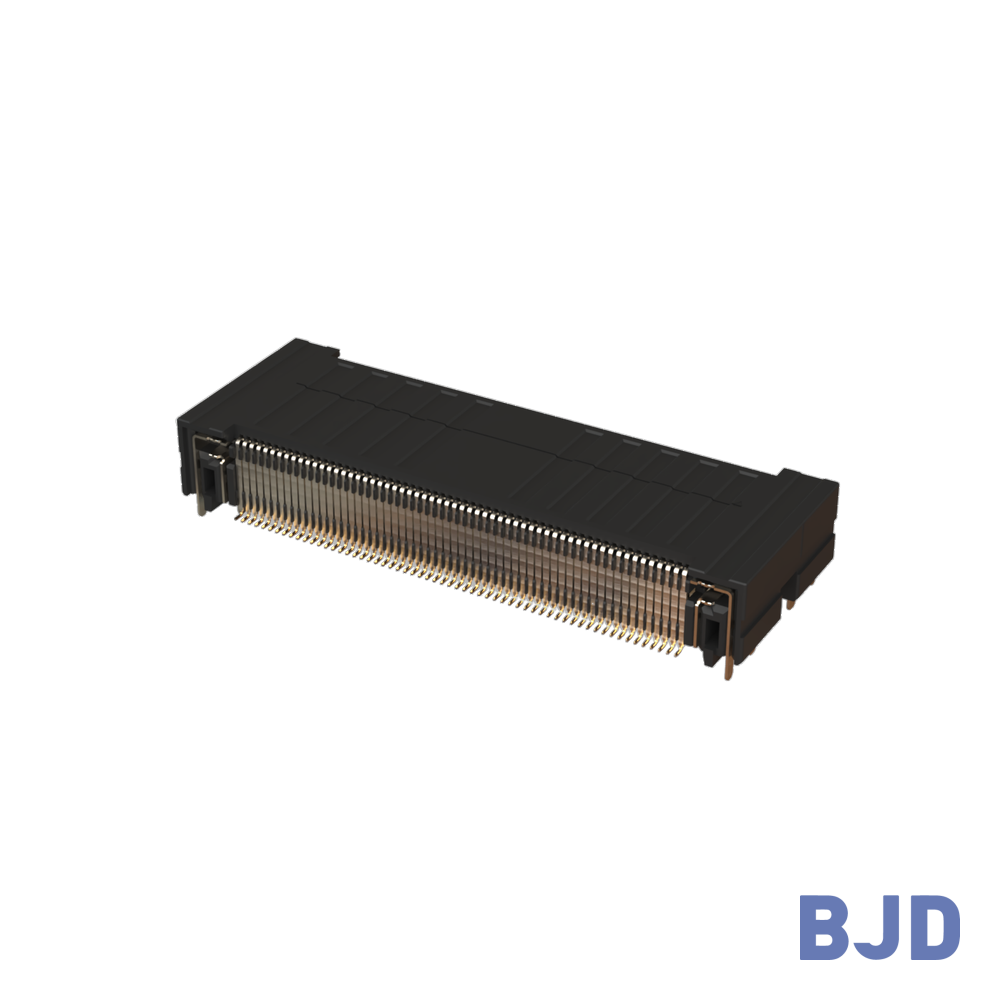

BTB0.8-12 Series
The BTB0.8-12 Series is a 0.8 mm-pitch, 44/124-position right-angle SMT board-to-board connector system comprising a plug and receptacle.
Related Parameters
-
Connector Set
Plug + receptacle
-
Pitch
0.8 mm
-
Pin Count
44 or 124 (40 or 120 signal + 4 power)
-
Mating Orientation
Right-angle
-
Rated Current
Signal: 0.5 A; power: 5 A max/pin
-
Rated Voltage
100 V AC max
-
Withstand Voltage
300 V AC/min
-
Operating Temperature Range
−55°C to +105°C
-
PCB Mounting Method
SMT
Mating Selection & Drawings
|
Plug →
Receptacle ↓
|
123057-20XX50 |
|---|---|
| 123056-20XX50 | Pending |
