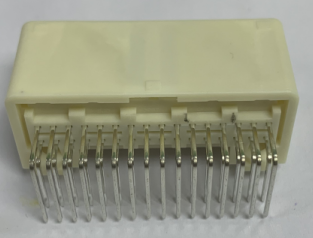

140017-40XX22
2.2 mm pitch, 32/40-position P2.2-6 Series Type B board connector.
Related parameters
-
Series
P2.2-6 Series
-
Material
PA6T+GF30
-
Rated Current
3 A max/pin
-
Withstand Voltage
AC 500 V
-
Operating Temperature Range
−40°C to 105°C
-
Contact Resistance
40 mΩ max (initial); 60 mΩ max (after test)
-
Soldering Process
PIP
-
Pin Count
32 / 40
-
Pitch
2.2 mm
