TB101/TB201 Series

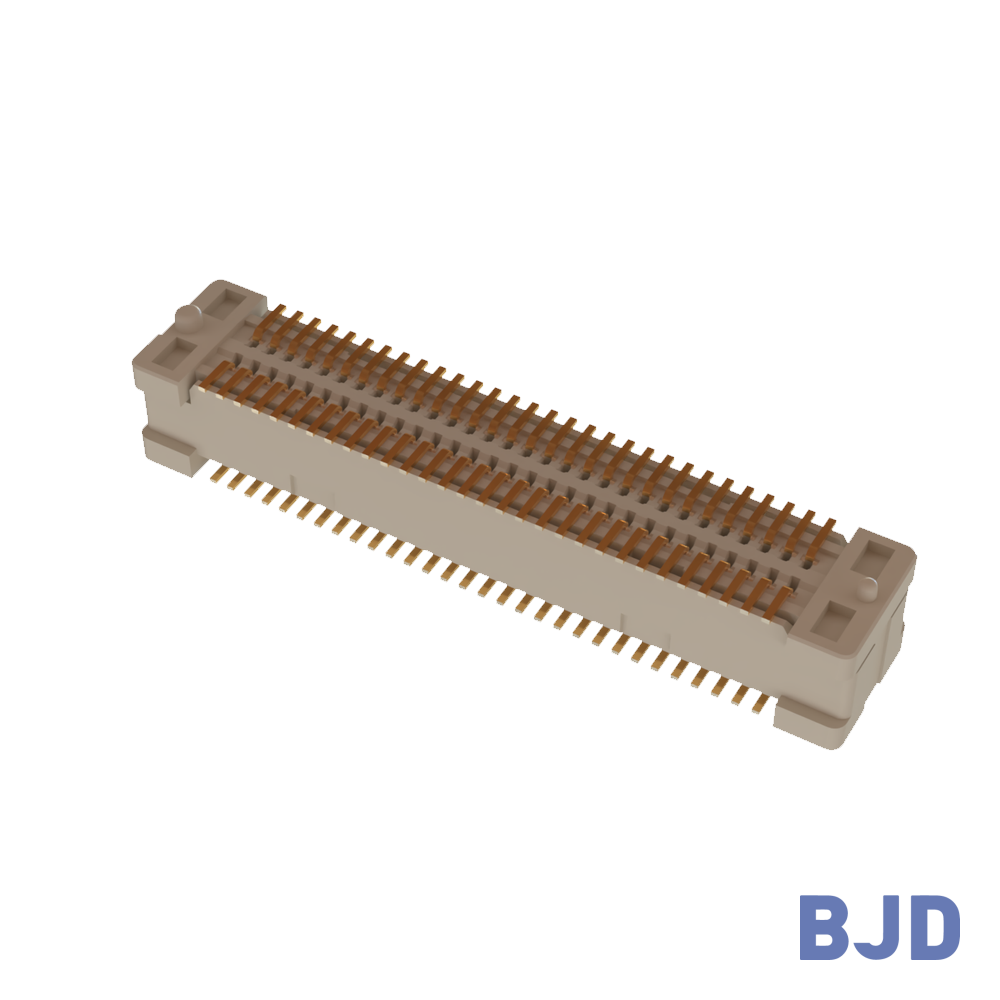

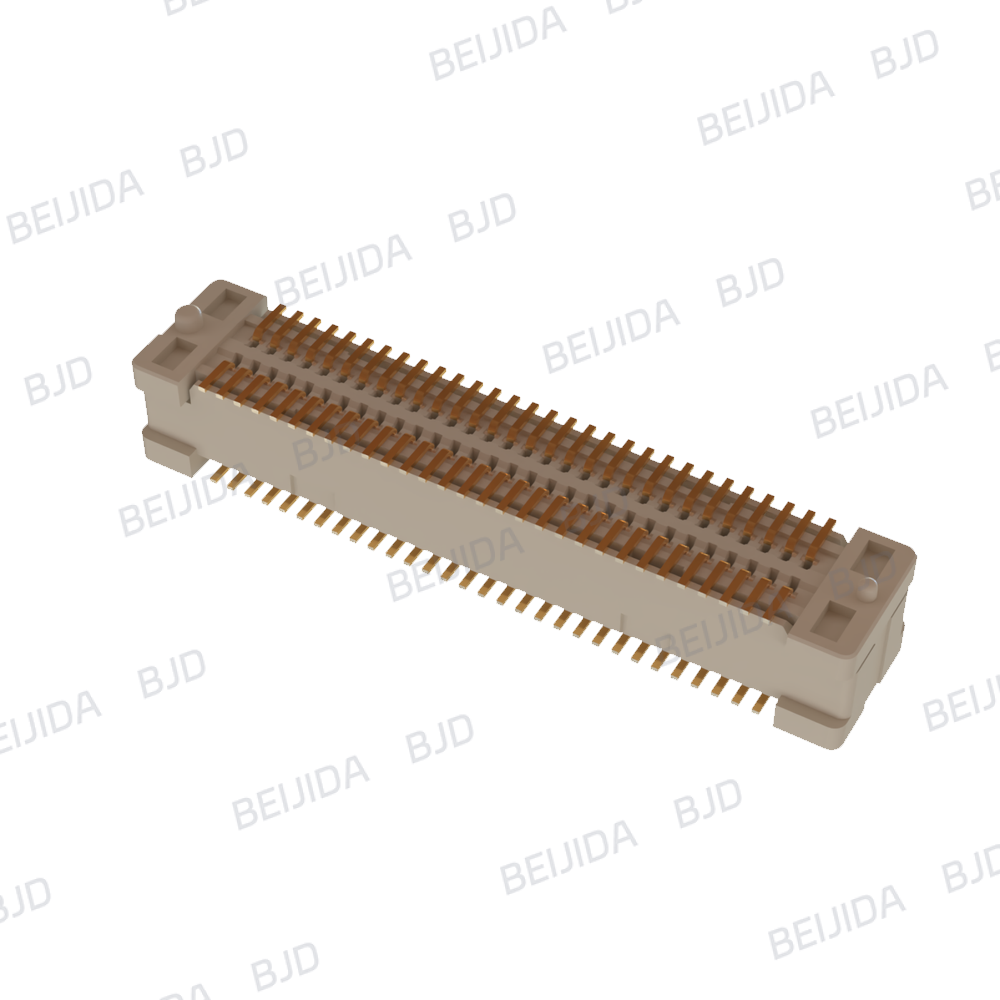

The TB101/TB201 Series is a 0.8 mm pitch, 120-position SMT board-to-board connector family with a 5 mm mated height. It comprises a TB101 plug and TB201 receptacle, rated at 0.5 A and 100 V AC/DC, with an operating temperature range of −40°C to +105°C.
Related Parameters
-
Connector Type
-
Mating Part Number
-
Material
-
Pin Count
120
-
Pitch
0.8 mm
-
Mated Height
5 mm
-
Floating Range
-
Connection Orientation
-
Soldering Process
SMT
-
Rated Current
0.5 A
-
Rated Voltage
100 V AC/DC
-
Withstand Voltage
AC 500 V/min
-
Operating Temperature Range
−40°C to +105°C
-
Transmission Rate
-
Supported Protocol
-
Power Terminals
-
Mating Cycles
-
RoHS 2
-
Halogen-Free
-
Compatible Replacement
-
Note
Mating Selection & Drawings
|
Plug →
Receptacle ↓
|
905101-10XX30 |
|---|---|
| 905201-10XX30 | 5 mm |
