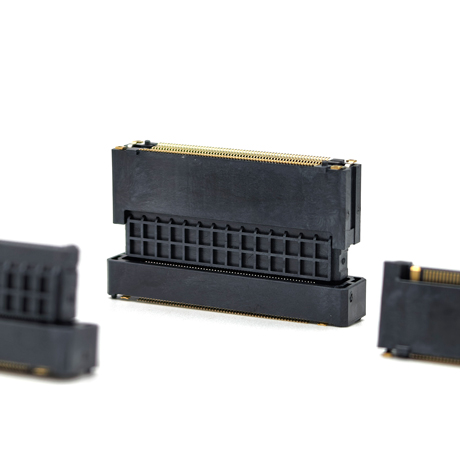

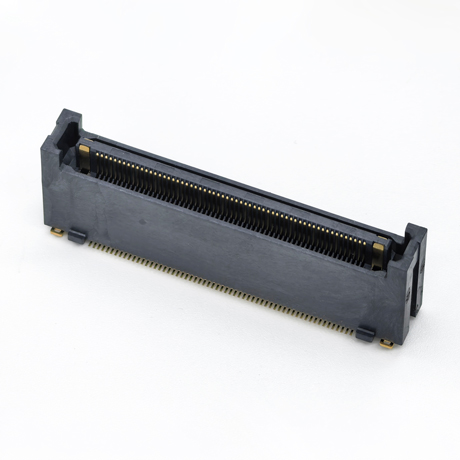

0.5-8 High-speed Transmission Floating Series
·Easy to assemble
The floating range in the X and Y directions is ±0.8mm, which is an advantage during assembly.
·High - current
A hybrid power - supply design architecture with 5 amperes per pin × 4 circuits.
·16+ Gbps high - speed transmission
Differential impedance is 85 ohms.
Supports PCI - e Gen4
Related Parameters
-
Connector Type
-
Mating Part Number
-
Material
-
Pin Count
20 ~ 160 P
-
Pitch
0.5 mm
-
Mated Height
10~30 mm
-
Floating Range
XY ± 0.8mm
-
Connection Orientation
-
Soldering Process
SMT
-
Rated Current
Signal: 0.5A/Pin, Power supply: 5A/Pin
-
Rated Voltage
50 V
-
Withstand Voltage
-
Operating Temperature Range
-40°C to 125°C
-
Transmission Rate
16Gbps
-
Supported Protocol
PCI-Express 4.0
-
Power Terminals
4
-
Mating Cycles
-
RoHS 2
-
Halogen-Free
-
Compatible Replacement
IRISO 10143 Series
-
Note
With power terminals
Mating Selection & Drawings
|
Fixed side →
Floating side ↓
|
0.5-8P10 123072-60XX50-HF | 0.5-8P11 123073-60XX50-HF | 0.5-8P16 123069-60XX50-HF 2D drawing | 0.5-8P21 123082-60XX50-HF 2D drawing |
|---|---|---|---|---|
| 0.5-8R0 123070-60XX50-HF | ||||
| 0.5-8R9 123068-60XX50-HF 2D drawing |
Series Documents
Specifications and introductions confirmed for the complete series.
