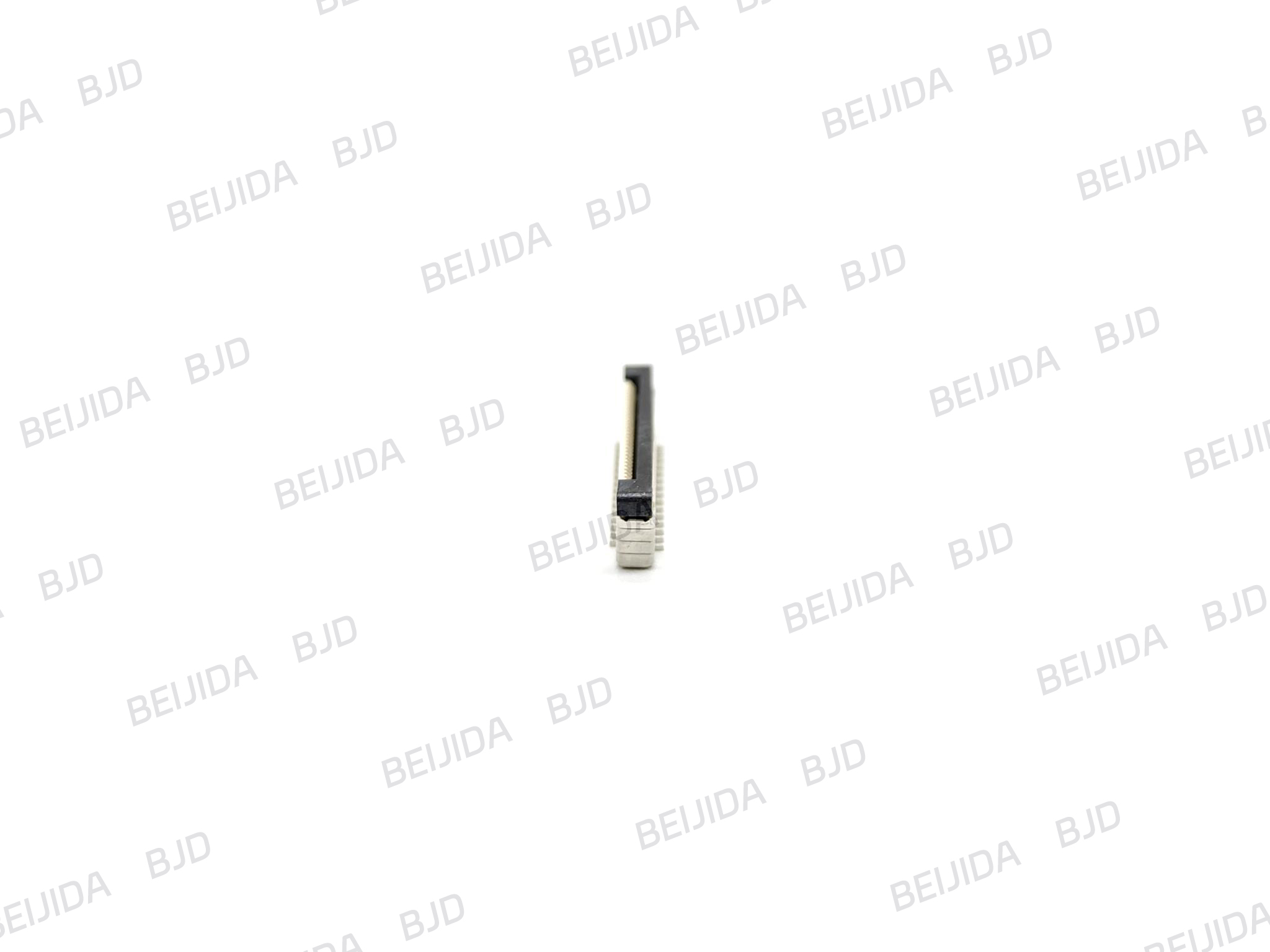

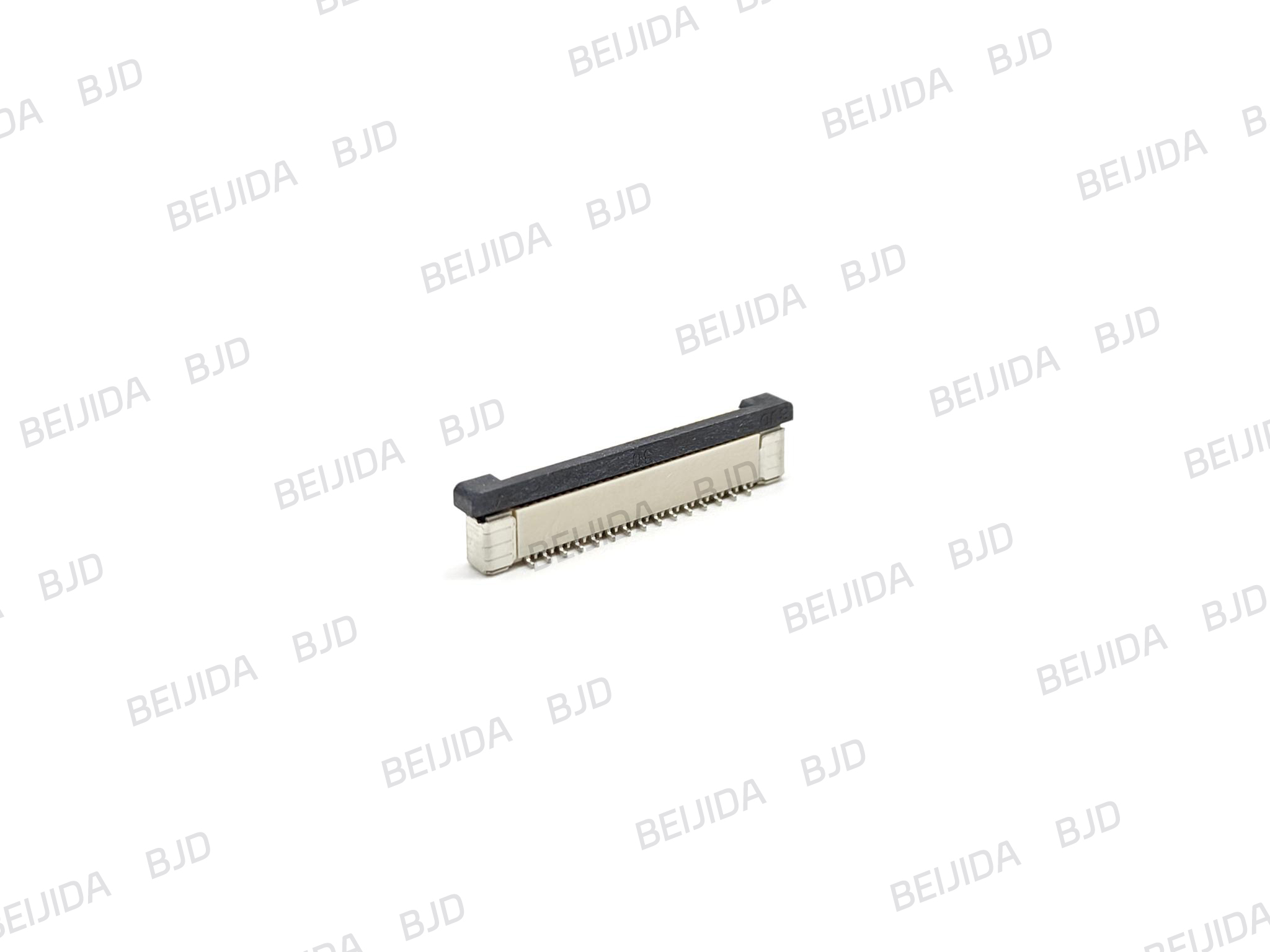

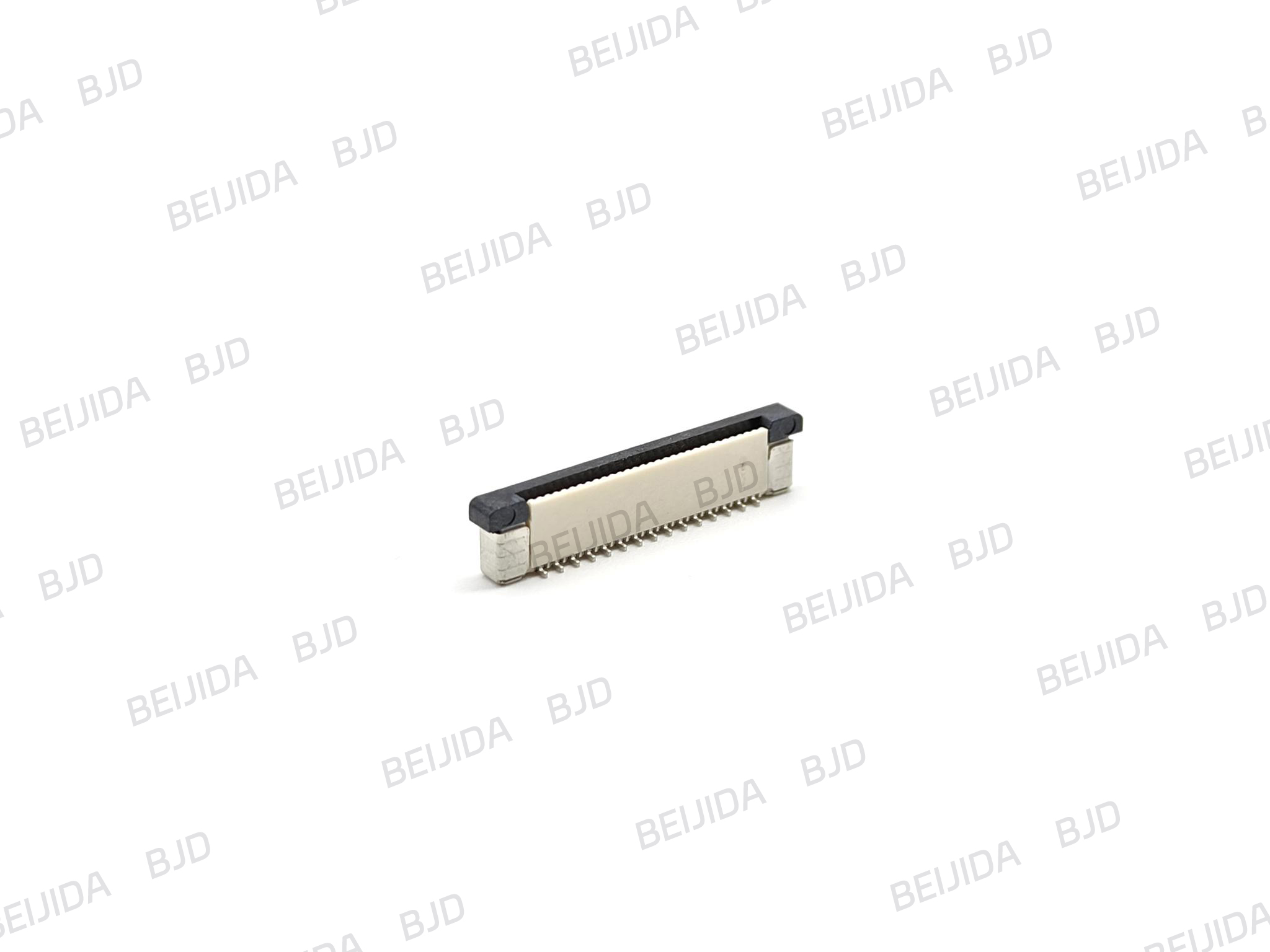

0.5-19 Series
The 0.5-19 Series uses a 0.5 mm pitch ZIF slider lock, with FPC/FFC insertion perpendicular to the PCB. Front-row-forward and rear-row-forward terminal versions are available for vertical SMT mounting and FPC/FFC without locking tabs.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
Front Row Forward / Rear Row Forward
-
Rated Current
0.5 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
——
-
FPC/FFC Insertion Direction
Vertical
-
Connector Width
-
Connector Height
4.46 mm
-
Material
-
Applicable FPC/FFC
-
Mount Type
Vertical (SMT)
-
Locking Mechanism
Slider
-
Pin Count
4–50
-
Pitch
0.5 mm
-
Compatible Replacement
-
Note
