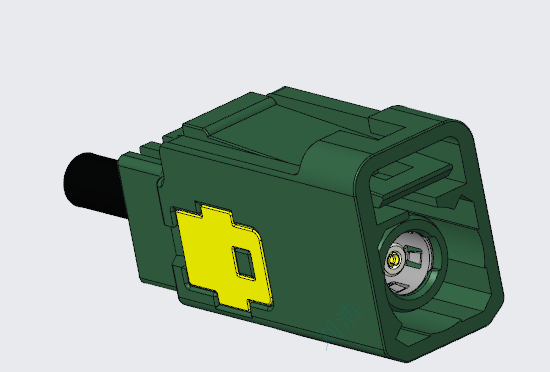

160068-3001XX

Related parameters

• Series

  HS0-2-1P FAKRA Series

• Part Type

  1-pin straight female wire-harness connector

• Pin Count

  1

• Material

  C5191-H, LCP/PBT GF30

• Contact Resistance

  Center contact: 24 mΩ max; outer contact: 5 mΩ max

• Rated Current

  1 A AC/DC max

• Withstand Voltage

  500 V AC/min

• Operating Temperature Range

  −40°C to +105°C

• Mating Product

  160069-3001XX

• Compatible Replacement

  Not specified
