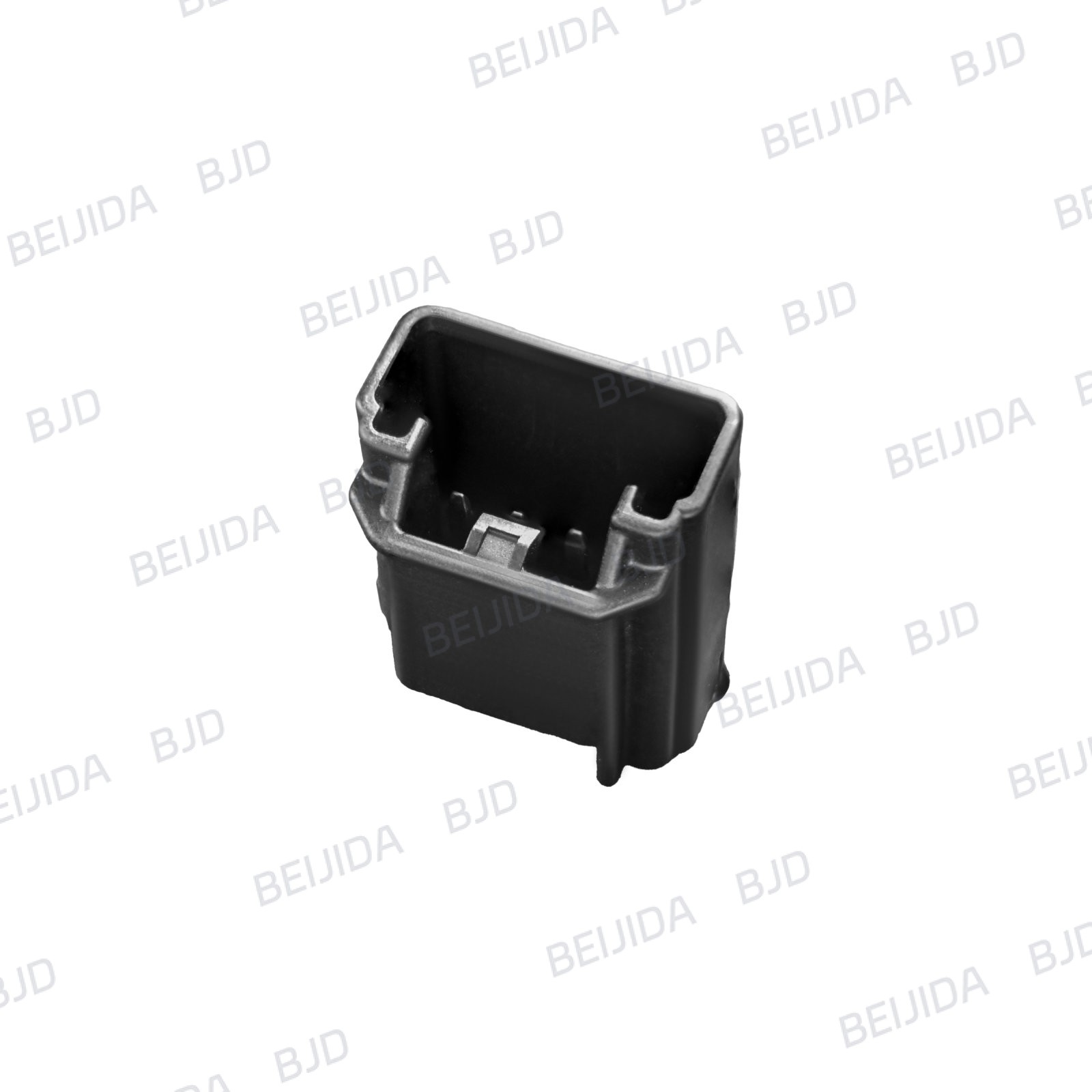

P3.5 Series
The P3.5 Series is a 3.5 mm-pitch, 4-position SMT board-side connector series rated at 3 A AC/DC max per pin and −40°C to 105°C.
Related Parameters
-
Pin Count
4
-
Pitch
3.5 mm
-
Rated Current
3 A AC/DC max/pin
-
Withstand Voltage
AC 1000 V / DC 1600 V
-
Contact Resistance
10 mΩ max (initial); 20 mΩ max (after test)
-
Operating Temperature Range
−40°C to 105°C
-
PCB Mounting Method
SMT
