141223X Series

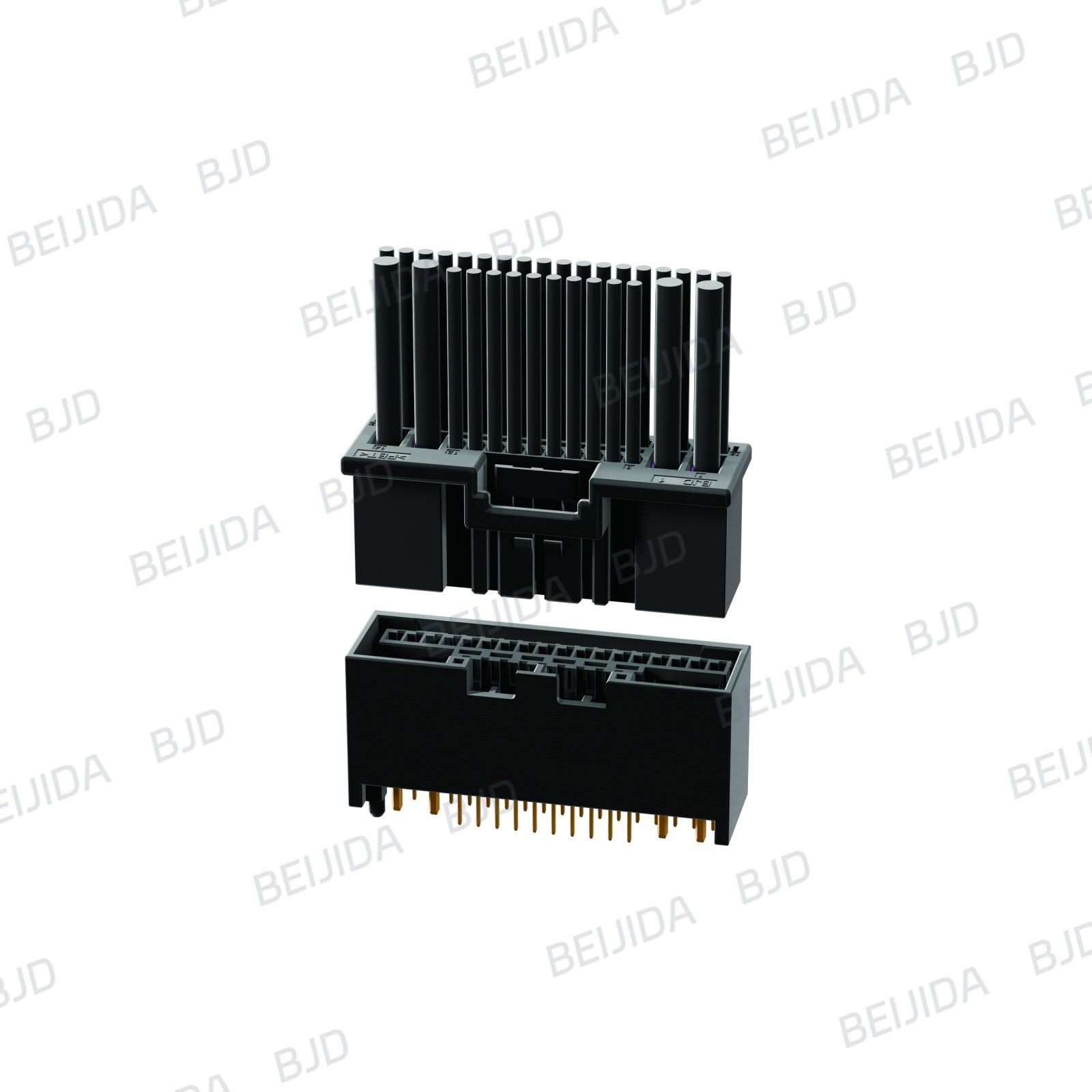

The 141223X Series is a 32-pin hybrid wire-to-board connector system with 28 signal positions and 4 power positions. It has a 2.00 mm signal pitch, a 4.00 mm power pitch, and an operating temperature range of −40°C to +125°C.
Related Parameters
-
Components
-
Component Type
-
Pin Count
32 (28 signal + 4 power)
-
Pitch
Signal: 2.00 mm; power: 4.00 mm
-
Number of Rows
-
CODE Type
-
With CPA
-
With TPA
-
PCB Mounting Method
-
Soldering Process
-
Material
PPS+GF
-
Rated Current
Signal: 3 A AC/DC max/pin; power: 12 A AC/DC max/pin
-
Rated Voltage
-
Withstand Voltage
AC 500 V/min
-
Contact Resistance
Signal: 10 mΩ max (initial), 12 mΩ max (after test); power: 6 mΩ max (initial), 7 mΩ max (after test)
-
Operating Temperature Range
−40°C to +125°C
-
Vibration Rating
-
Compatible Replacement
-
Note
