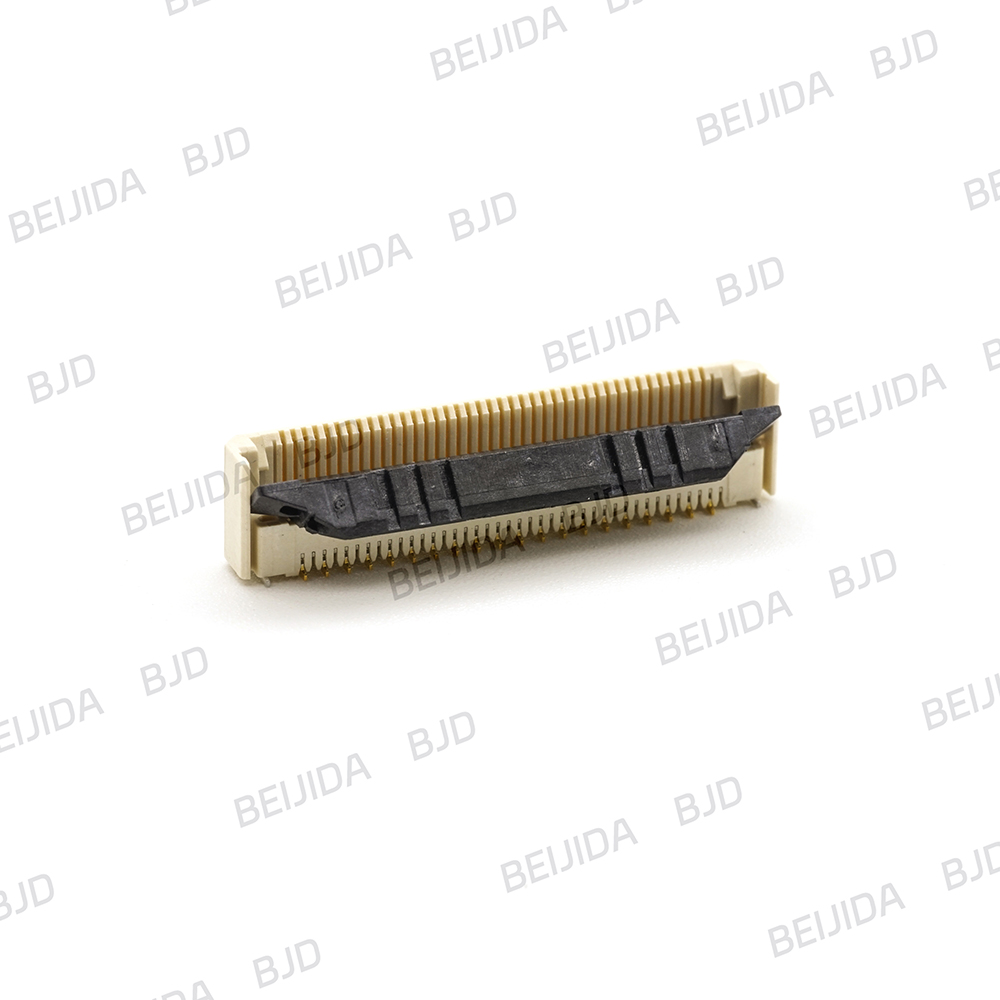

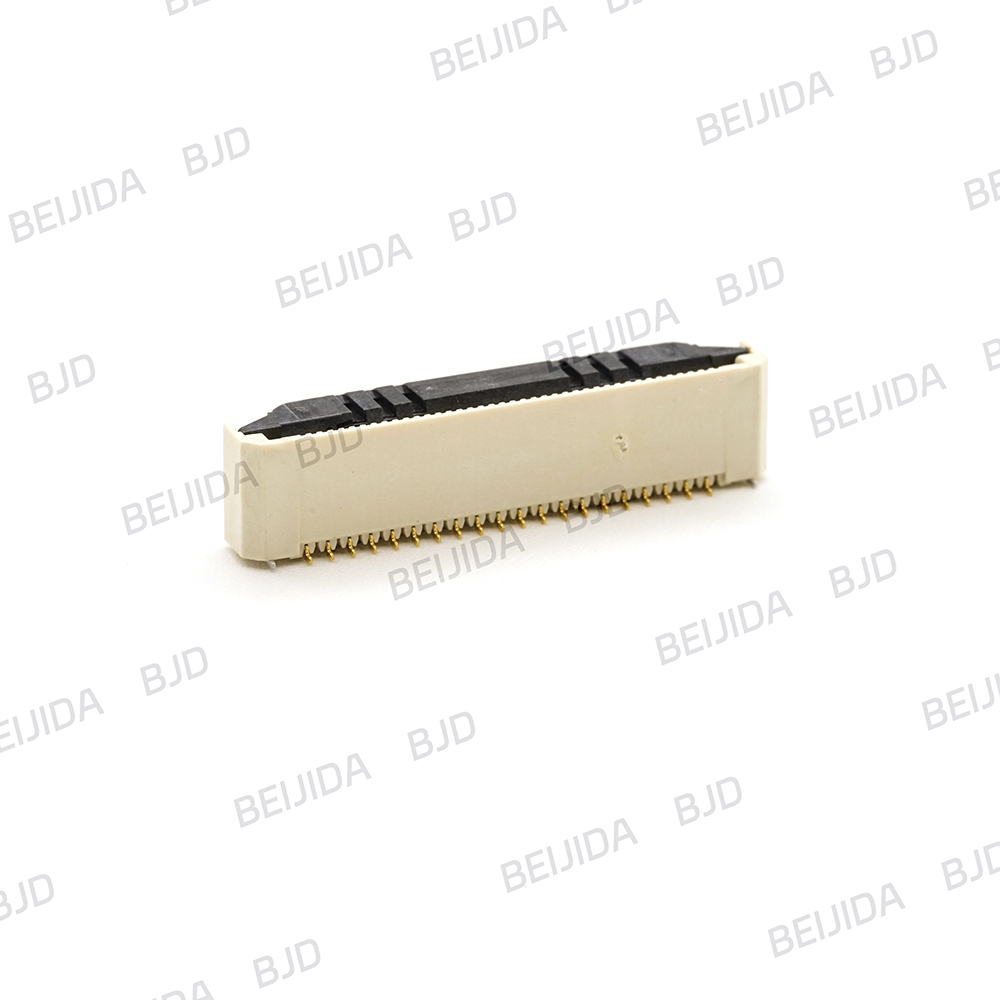

101058-20XX50
0.5-21A Series、0.5mm、ZIF、Vertical（SMT）、Side flip、Front-row
Related parameters
-
Series
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
Front Row Forward
-
Rated Current
0.5 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
—
-
FPC/FFC Insertion Direction
Vertical
-
Connector Width
-
Connector Height
5.79 mm
-
Material
LCP, PA9T, phosphor bronze (matte tin-plated)
-
Applicable FPC/FFC
FPC/FFC with tabs
-
Mount Type
Vertical (SMT)
-
Locking Mechanism
Side flip
-
Pin Count
10–70
-
Pitch
0.5 mm
-
Compatible Replacement
HRS FH40 series
-
