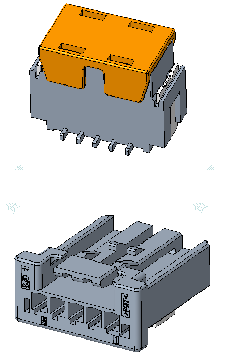

141351-220510
2.00 mm pitch, 5-position single-row vertical SMT board connector.
Related parameters
-
Series
14135X Series
-
Component Type
Single-row vertical board connector
-
Pin Count
5
-
Pitch
2.00 mm
-
Number of Rows
Single row
-
Mating Orientation
Vertical
-
PCB Mounting Method
SMT
-
Material
Housing: PA10T; terminals: copper alloy
-
Rated Current
3 A AC/DC max/pin
-
Withstand Voltage
AC 500 V/min
-
Contact Resistance
10 mΩ max (initial); 30 mΩ max (after test)
-
Operating Temperature Range
−40°C to 125°C
-
Compatible Replacement
Not specified
