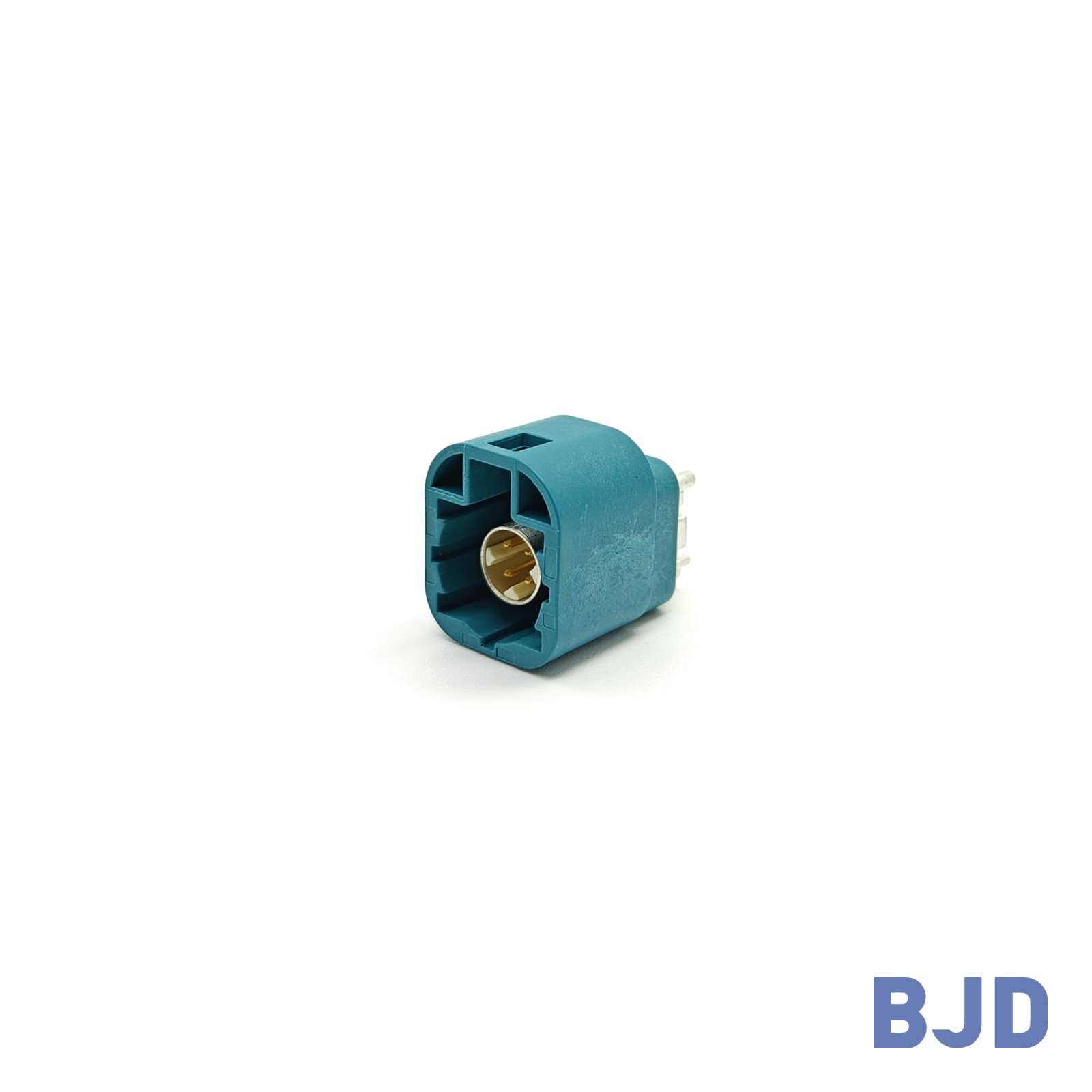

HSD Series
The HSD Series is designed for high-speed data transmission applications. It supports data rates up to 6 Gbps and uses a shielded structure to deliver excellent EMI performance and reliable connections. With multiple configurations available, the HSD Series is widely used in automotive, industrial and medical equipment.
Related Parameters
-
Component Type
-
Interface Standard
-
Pin Count
-
Configuration
-
Keying / Code
-
Housing Color
-
Connection Orientation
-
Applicable Cable
-
Soldering Process
PIP，SMT
-
Material
-
Rated Voltage
60V
-
Rated Current
1A
-
Withstand Voltage
-
Insulation Resistance
-
Contact Resistance
-
Characteristic Impedance
-
Frequency Range
-
Transmission Rate
-
Supported Protocol
-
Operating Temperature Range
-40°C - 105°C
-
Vibration Rating
USCAR V1
-
Mating Product / Part Number
-
Compatible Replacement
Rosenberger:D4S20L-40MA5-X D4S20G-400A5-X；Tyco :2291362-2 TE:2291362-1；Rosenberger:D4S10E-40MA5-X D4S12H-40MA5-X；Ampheno:HSDNXSPPCB14A Tyco:2304935-1
-
Note
