0.8 Floating Series

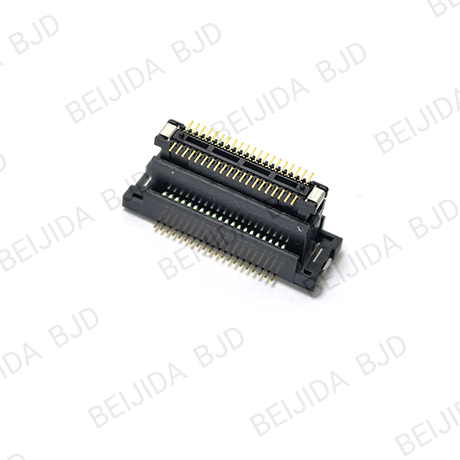

The 0.8 Floating Series is a 0.8 mm-pitch floating board-to-board connector family covering 30–80 contacts and multiple mating heights from 6 to 24.7 mm. Its floating side provides XY ±0.5 mm movement, and the family supports both straight and right-angle connection layouts. It uses SMT mounting and is rated at 0.5 A per contact and 50 V AC/DC, with an operating temperature range of -40°C to 105°C. It suits equipment requiring a wide stack-height range, flexible board orientation, and tolerance to assembly misalignment.
Related Parameters
-
Connector Type
-
Mating Part Number
-
Material
-
Pin Count
30, 40, 50, 60, 70, 80
-
Pitch
0.8 mm
-
Mated Height
6, 8, 9, 9.75, 11.75, 12.75, 14.25, 15.75, 18, 19.5, 20.95, 24.7
-
Floating Range
XY±0.7
-
Connection Orientation
-
Soldering Process
SMT
-
Rated Current
0.5A
-
Rated Voltage
50V
-
Withstand Voltage
-
Operating Temperature Range
-40℃ ~ 105℃
-
Transmission Rate
-
Supported Protocol
-
Power Terminals
0
-
Mating Cycles
-
RoHS 2
-
Halogen-Free
-
Compatible Replacement
IRISO 9827，9828，9860 Series；IRISO 9828S；IRISO 9827S；IRISO 9828B；IRISO 9827B；IRISO 9860B
-
Note
Mating Selection & Drawings
|
Fixed side →
Floating side ↓
|

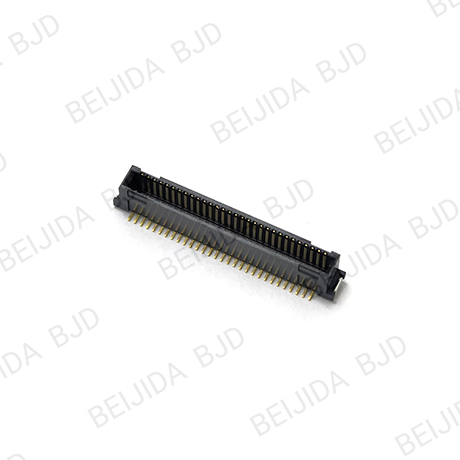

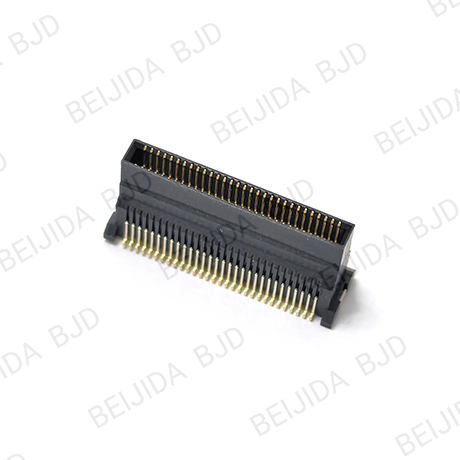

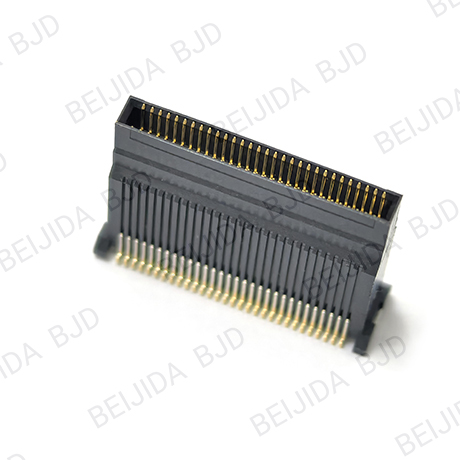

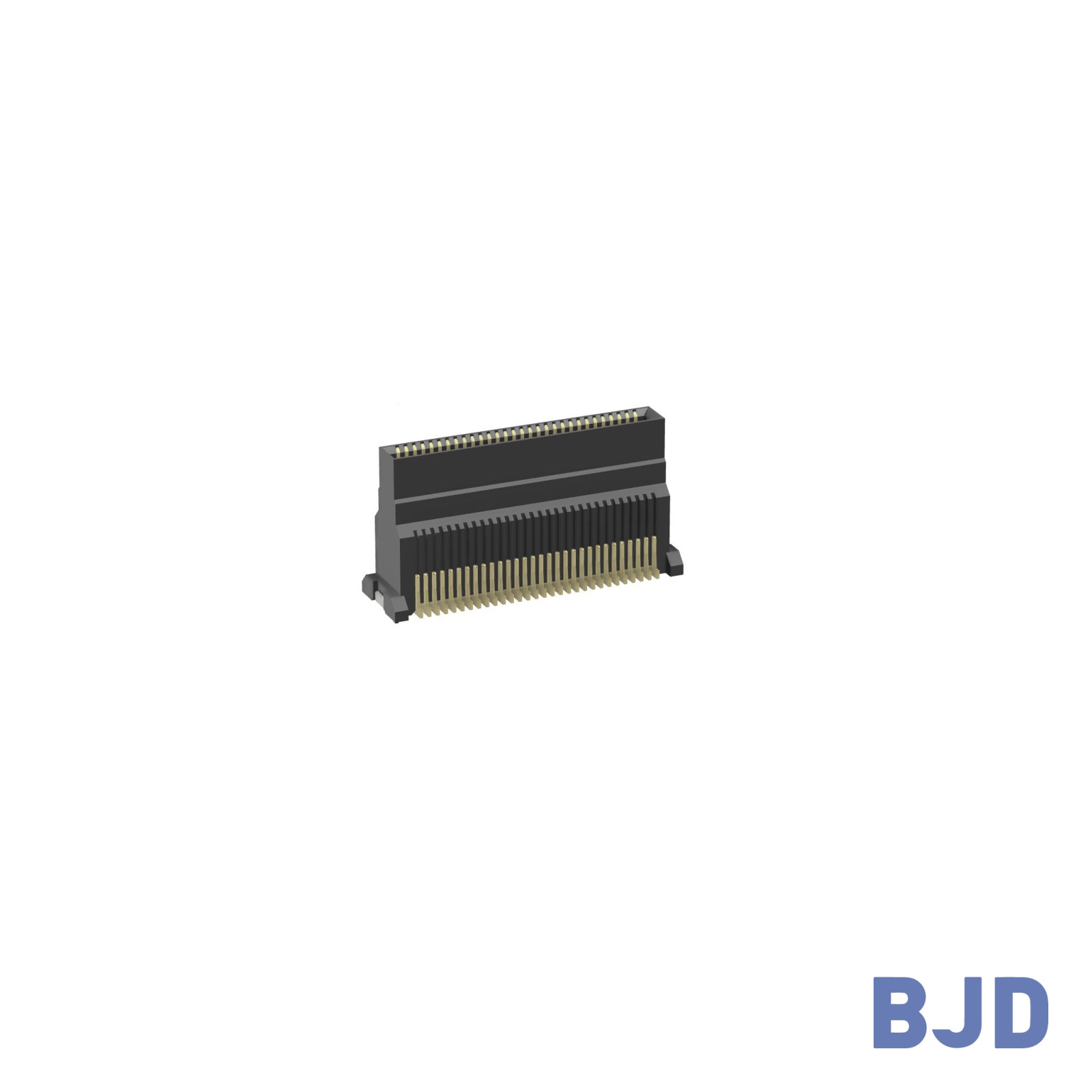

0.8-8 PLUG 123012-20XX50 2D drawing | 0.8-6 PLUG 123009-20XX50 2D drawing | 0.8-9 PLUG 123013-20XX50 2D drawing | 0.8-11 PLUG 123015-20XX50 2D drawing | 0.8-10 PLUG 123014-20XX50 2D drawing | 0.8-7 PLUG 123011-20XX50 2D drawing | 0.8-5 PLUG 90° 123004-20XX50 90° 2D drawing |
|---|---|---|---|---|---|---|---|
| 0.8-6 REC 123010-20XX50 2D drawing | - | ||||||

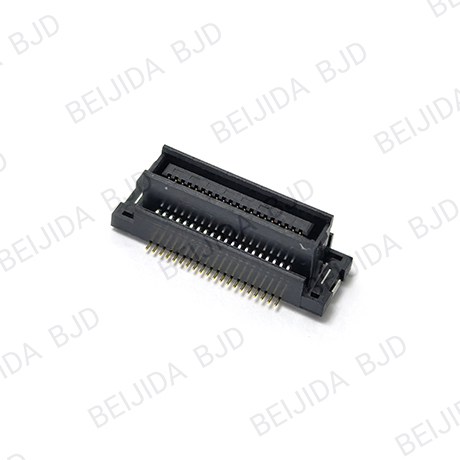

| 0.8-5 REC 123006-20XX50 2D drawing |
|
