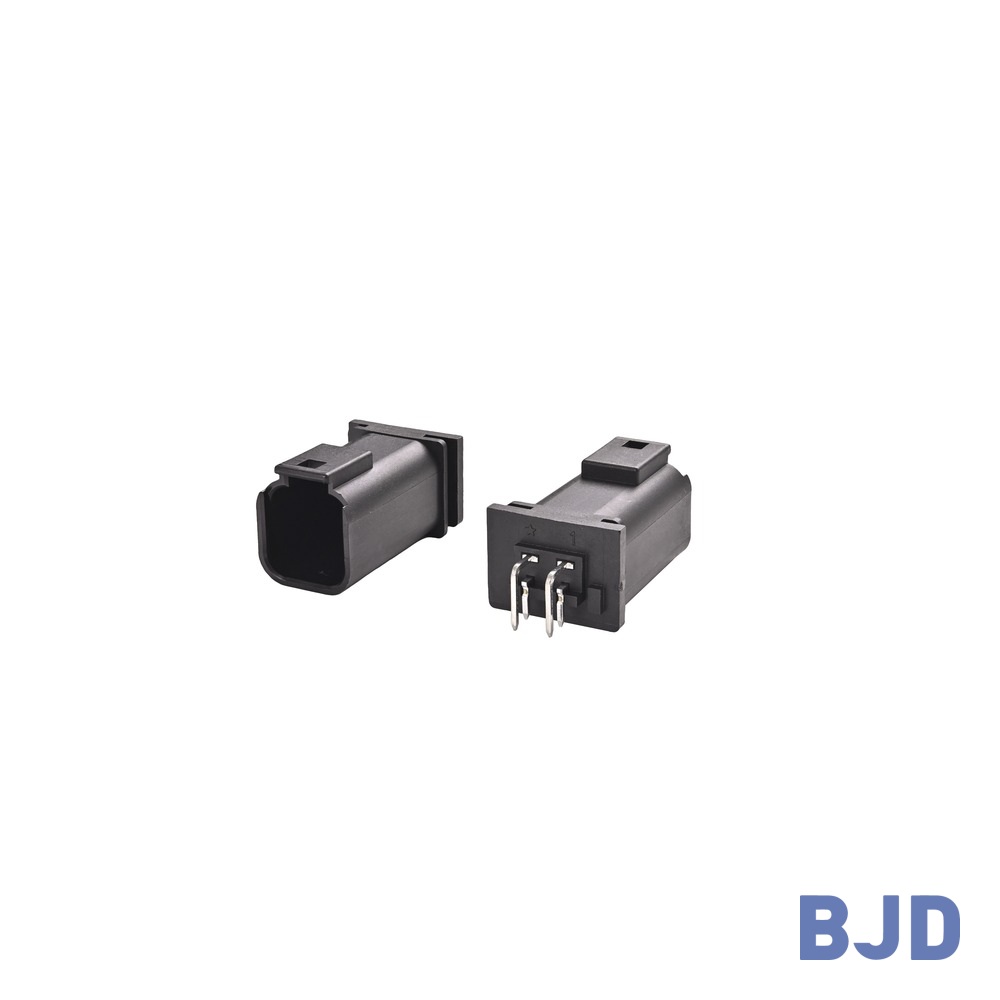

140043-40042X

Related parameters

• Series

  P4.2-1 Series

• Material

  PBT-GF15

• Rated Current

  3 A max/pin

• Withstand Voltage

  AC 500 V

• Operating Temperature Range

  −40°C to 105°C

• Contact Resistance

  40 mΩ max (initial); 60 mΩ max (after test)

• Soldering Process

  DIP

• Pin Count

  4

• Pitch

  4.2 mm
