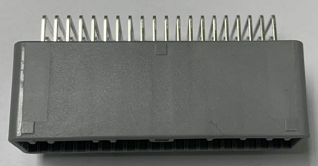

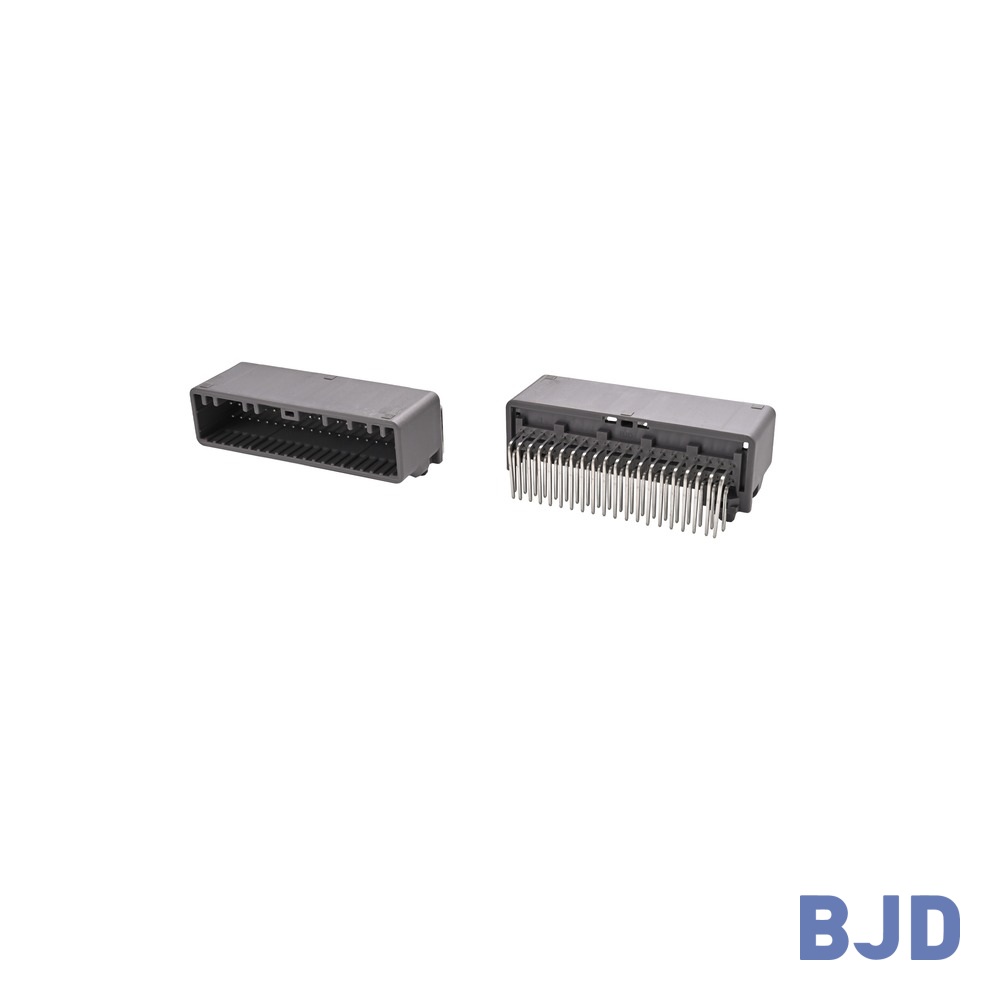

140013-40402X
2.2 mm pitch, 40-position P2.2-5 Series Type A/B/C board connector.
Related parameters
-
Series
P2.2-5 Series
-
Material
PBT+GF30
-
Rated Current
3 A max/pin
-
Withstand Voltage
AC 1000 V
-
Operating Temperature Range
−40°C to 105°C
-
Contact Resistance
8 mΩ max (initial); 16 mΩ max (after test)
-
Soldering Process
PIP
-
Pin Count
40
-
Pitch
2.2 mm
