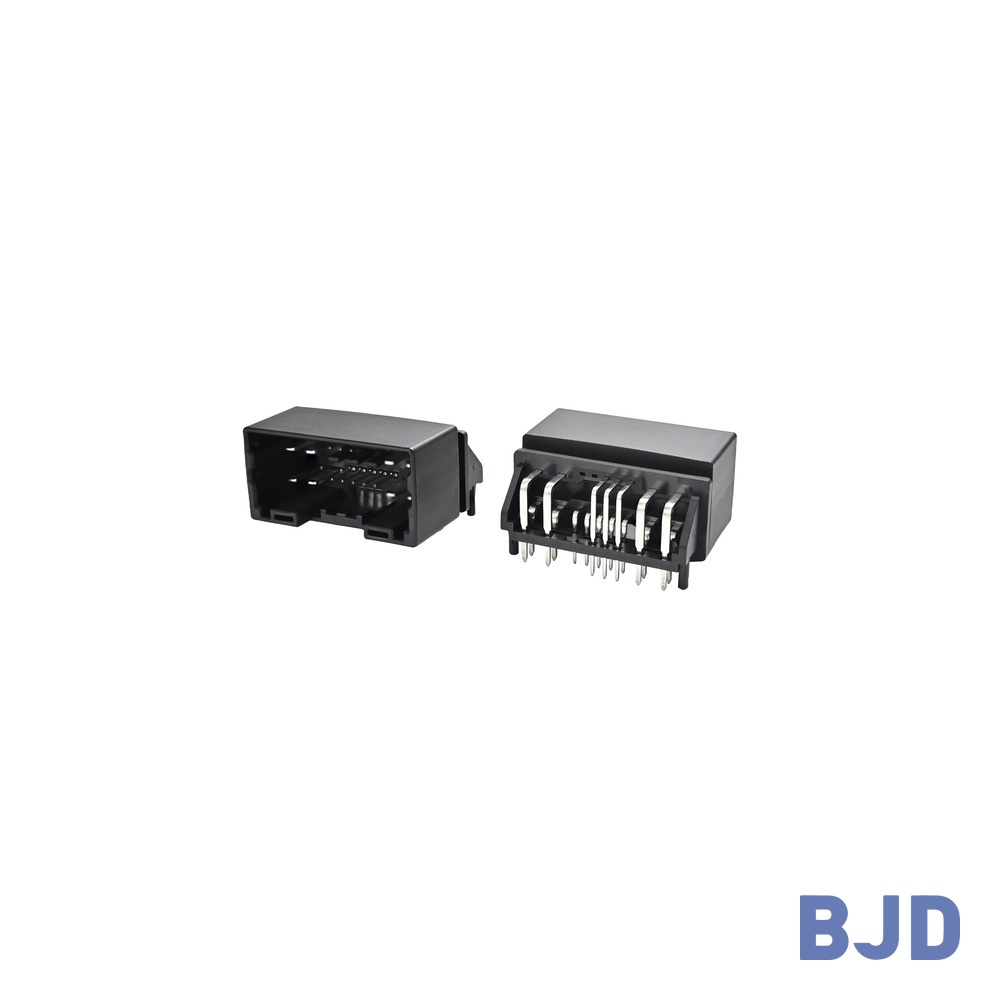

140049-40XX2X

Related parameters

• Series

  P5.0-2 Series

• Part Type

  P5.0-2B right-angle board connector

• Pitch

  Signal: 2.54 mm; power: 5.0 mm

• Pin Count

  Varies by model

• Material

  PA9T-GN2330

• Rated Current

  0.64 mm terminal: 3 A AC/DC; 2.8 mm terminal: 15 A AC/DC

• Withstand Voltage

  AC 1000 V

• Operating Temperature Range

  −40°C to +105°C

• Contact Resistance

  0.64 mm terminal: 20 mΩ; 2.8 mm terminal: 5 mΩ

• Soldering Process

  PIP

• Compatible Replacement

  YAZAKI 7288-9763-30
