140067-20029X

Related parameters

• Series

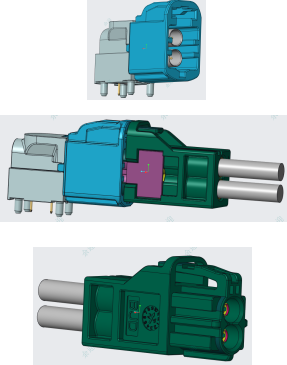

  HS2.0-2-2P MINI FAKRA Series

• Part Type

  2-pin right-angle vertical board-side connector

• Pin Count

  2

• Material

  PA9T, zinc alloy, C5191, LCP, C2680

• Housing Color

  Water Blue

• Contact Resistance

  Center contact: 24 mΩ max; outer contact: 10 mΩ max

• Rated Current

  1 A AC/DC max

• Withstand Voltage

  500 V DC/min

• Operating Temperature Range

  −40°C to +105°C

• PCB Mounting Method

  PIP

• Mating Product

  160067-30029X

• Compatible Replacement

  Rosenberger AMK16B-1M4Z5-y
