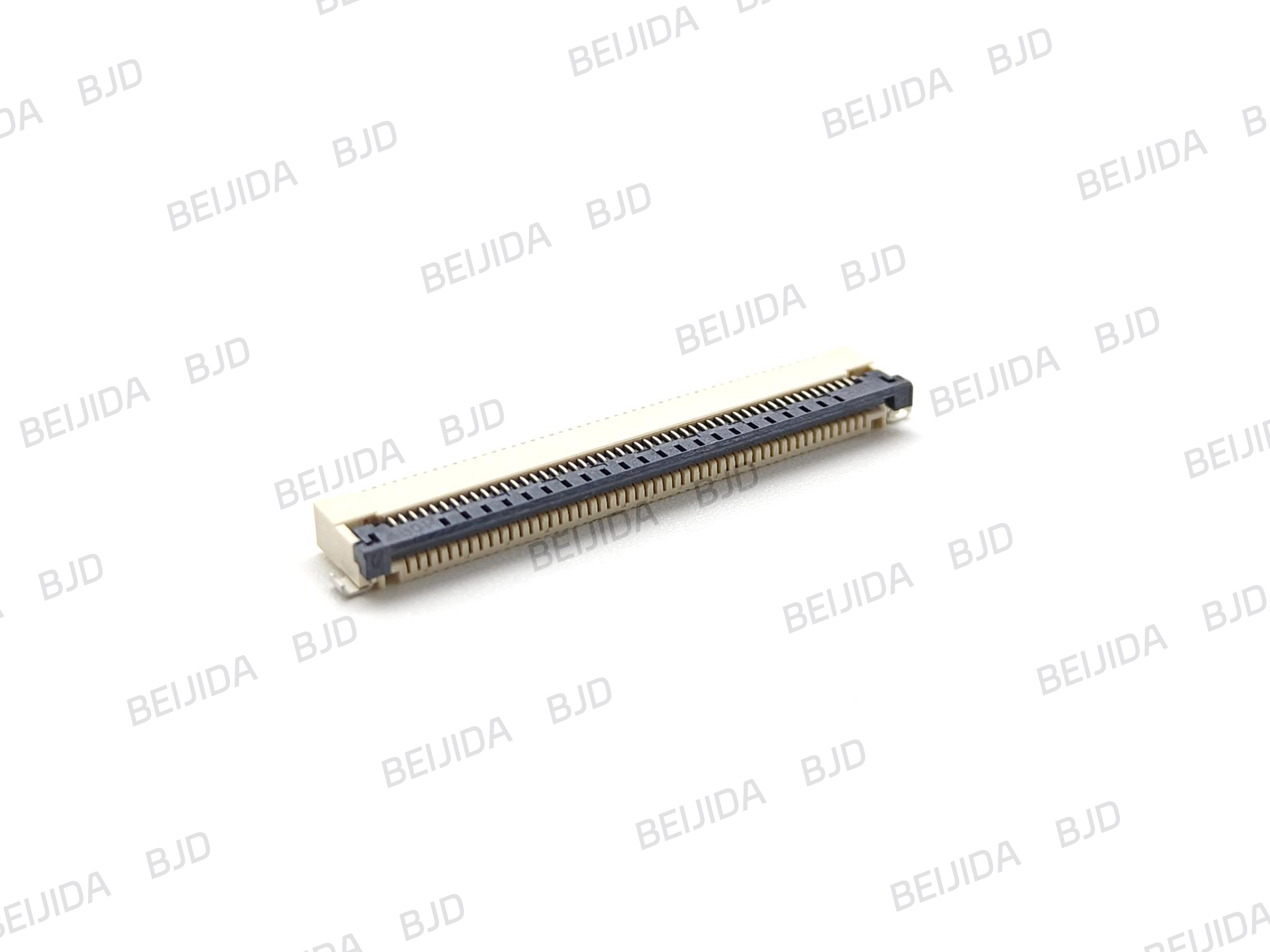

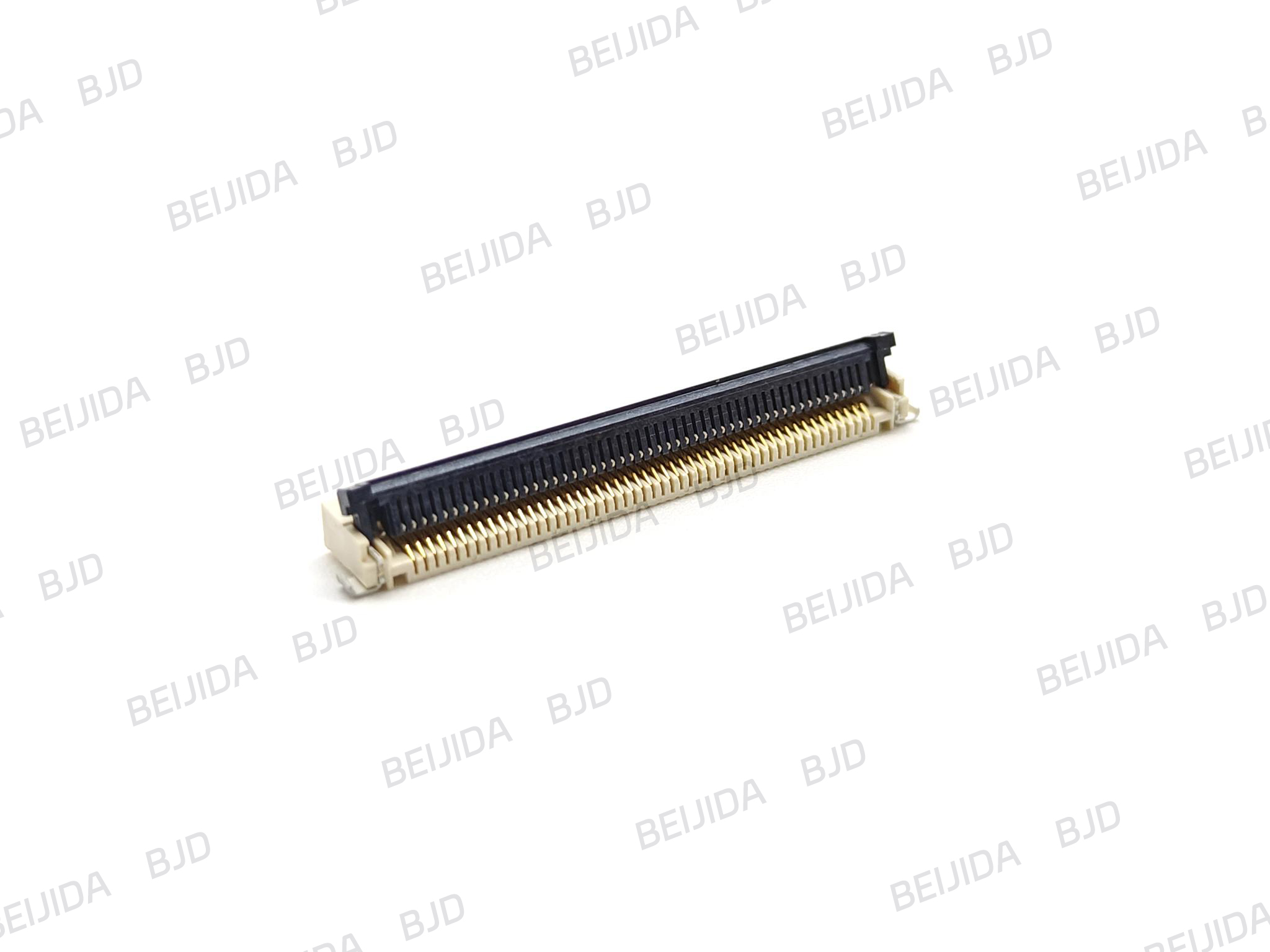

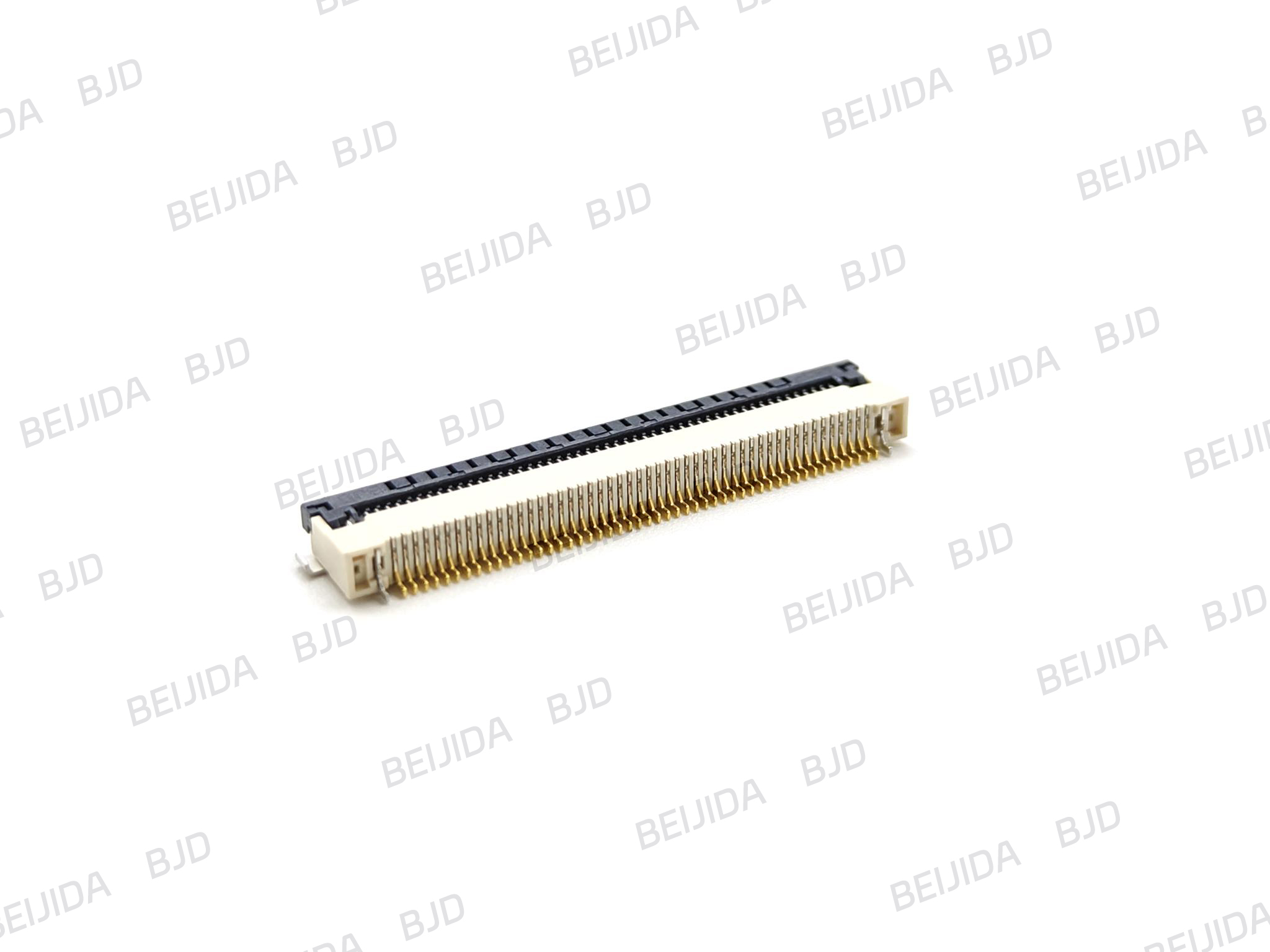

0.5-23 Series
0.5 mm pitch, ZIF, horizontal insertion, horizontal SMT mounting, front-flip lock, dual-beam bottom contacts, 4–70 pins, 2.5 mm connector height, for FPC/FFC with tabs.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
0.5 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
Dual-beam dual contact (bottom)
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
2.5 mm
-
Material
-
Applicable FPC/FFC
FPC/FFC with tabs
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Front flip
-
Pin Count
4–70
-
Pitch
0.5 mm
-
Compatible Replacement
IRISO 12001S series
-
Note
Automotive Lamps
Automotive lamps need durable connectors for lighting, signaling, and safety functions across vehicle systems.
