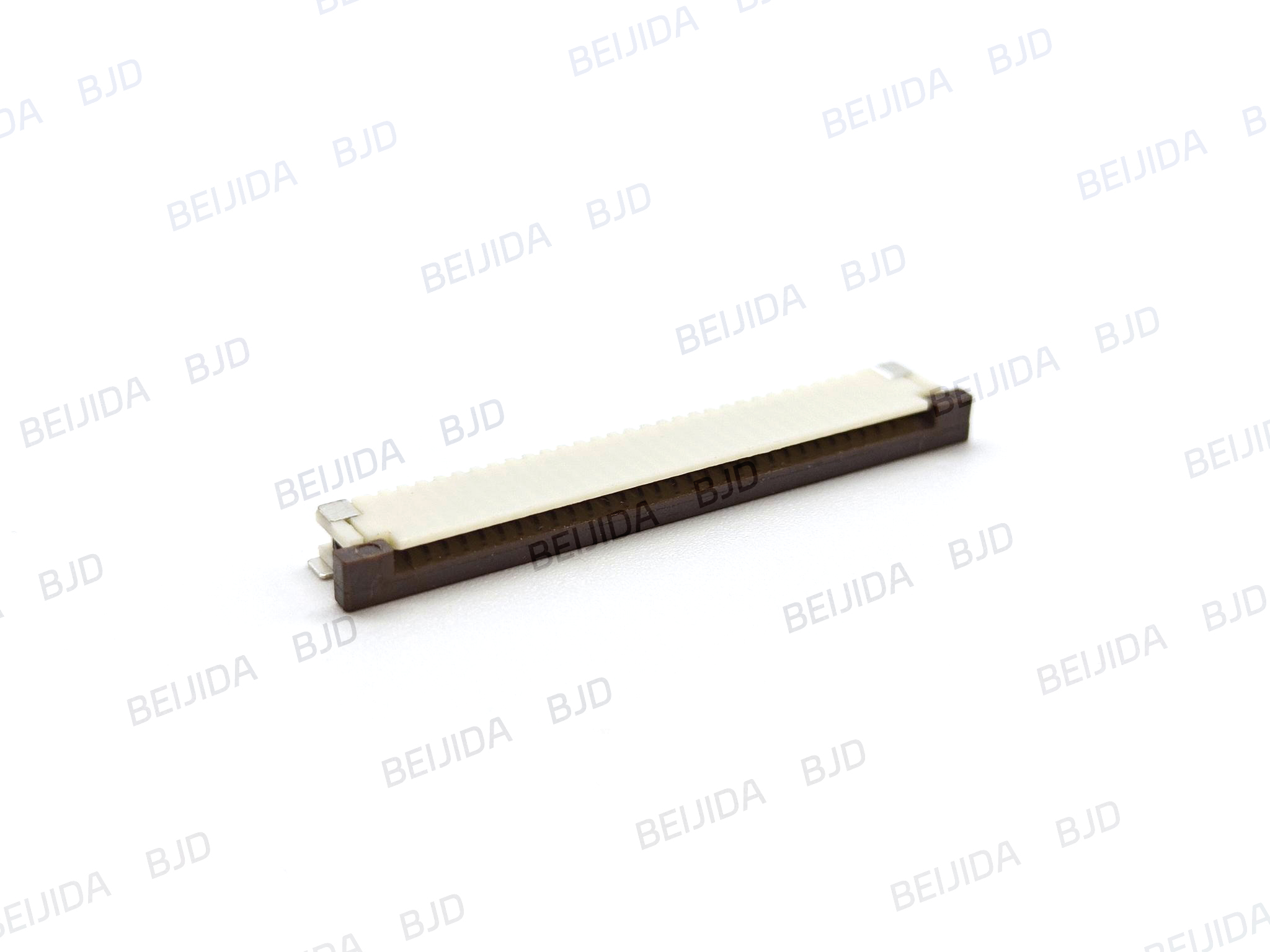

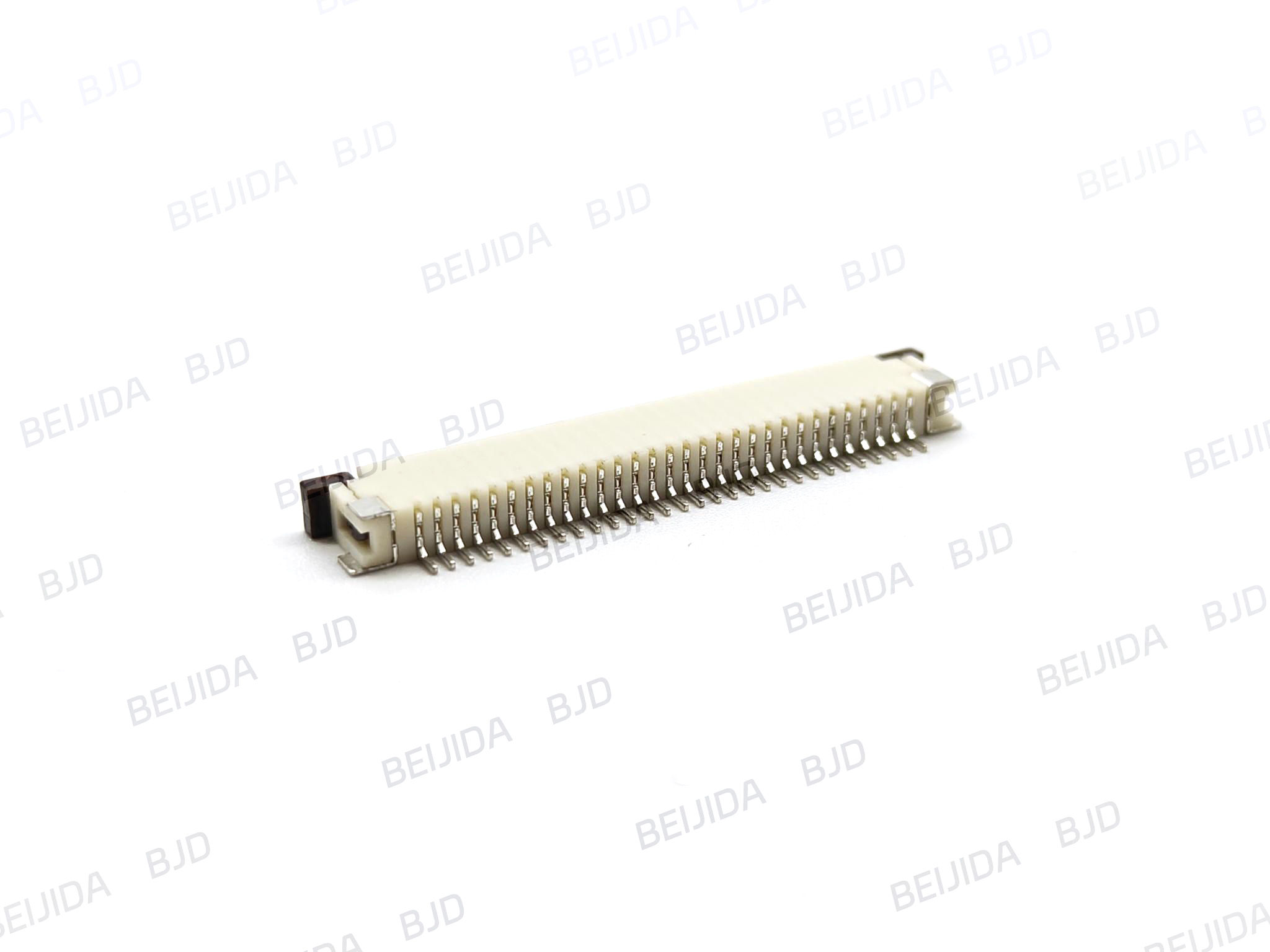

1.0-1 Series
The 1.0-1 Series features a 1.0 mm-pitch ZIF design with a slider lock that opens and closes by sliding horizontally. It uses upper contacts and horizontal insertion for FPC/FFC without locking tabs.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
1.0 A
-
Rated Voltage
50 V
-
Operating Temperature Range
-40°C ~ 105°C
-
Contact Configuration
Upper Contact
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Slider
-
Pin Count
4 ~ 40
-
Pitch
1.0
-
Compatible Replacement
IRISO 9616,9617 series
-
Note
If you want to know more about our products
Contact us for product selection and custom connector support.
