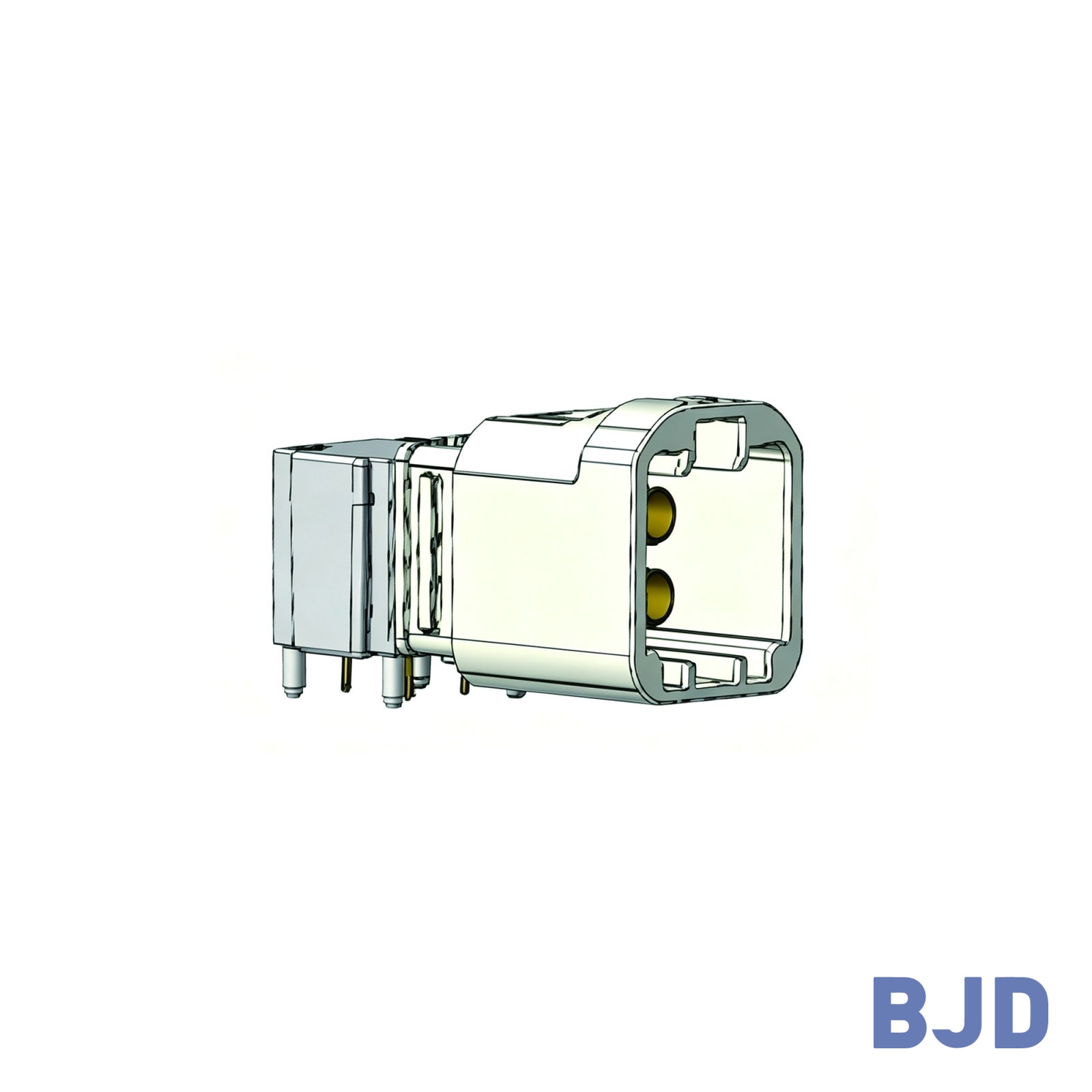

HS4.0-2-4P MINI FAKRA Series

Related Parameters

• Component Type

• Interface Standard

• Pin Count

  4

• Configuration

  Board-side connector / Wire-side connector

• Keying / Code

  Wire side: A / Z

• Housing Color

  Wire side: Black (keying A) / Water Blue (keying Z)

• Connection Orientation

• Applicable Cable

• Soldering Process

• Material

• Rated Voltage

• Rated Current

  1 A AC/DC max

• Withstand Voltage

  500 V DC/min

• Insulation Resistance

• Contact Resistance

  Center contact: 24 mΩ max; outer contact: 10 mΩ max

• Characteristic Impedance

• Frequency Range

• Transmission Rate

• Supported Protocol

• Operating Temperature Range

  −40°C to +105°C

• Vibration Rating

• Mating Product / Part Number

• Compatible Replacement

• Note
