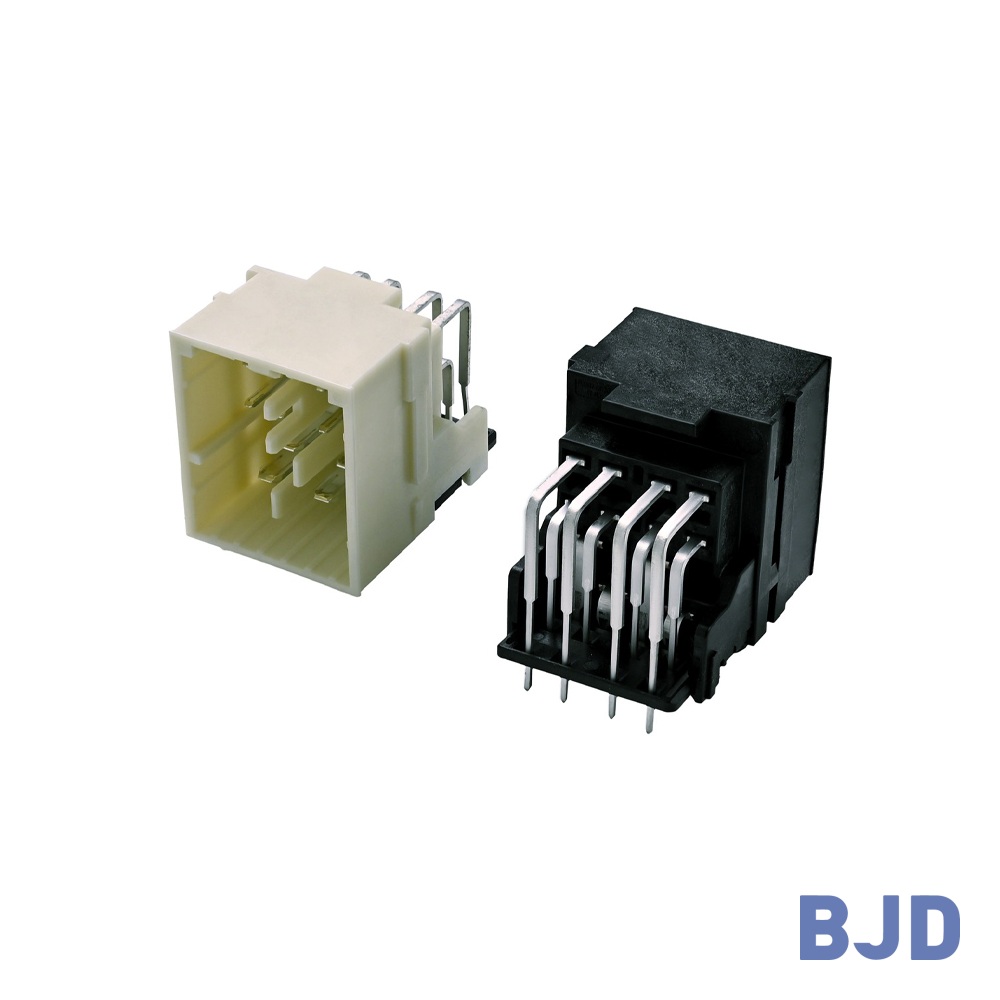

140083-41122X

Related parameters

• Series

  P2.0-2 Series

• Component Type

  P2.0-2 hybrid board-side connector

• Pin Count

  12

• Pitch

  2.0 mm

• PCB Mounting Method

• Soldering Process

• Material

  Terminal: brass; housing: PA10T

• Rated Current

  10 A / 25 A

• Withstand Voltage

  AC 800 V

• Operating Temperature Range

  −40°C to +125°C

• Contact Resistance

  10 mΩ max (initial); 20 mΩ max (after test)

• Mating Part Number

• Compatible Replacement

  TE 2418381

• Note
