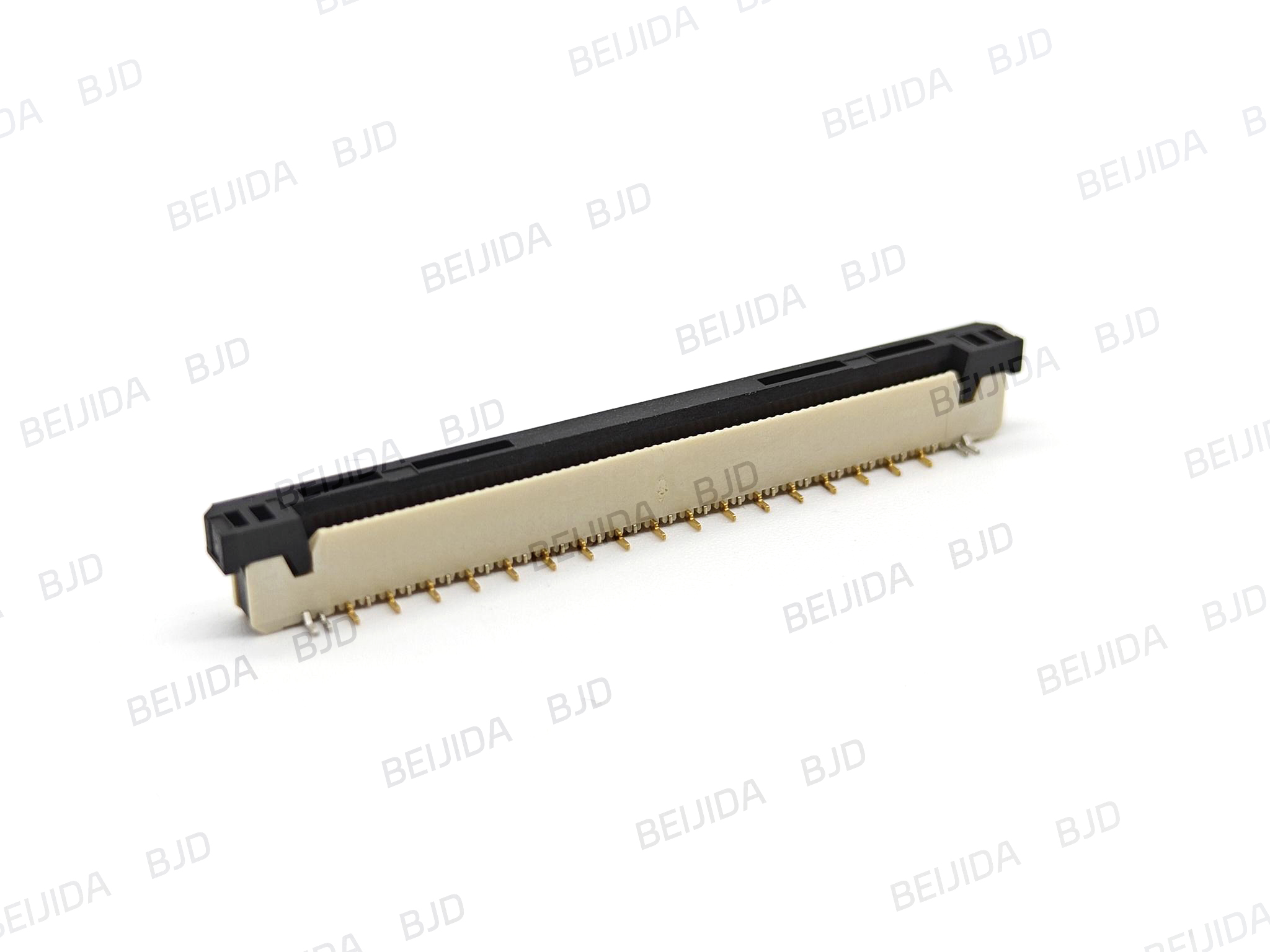

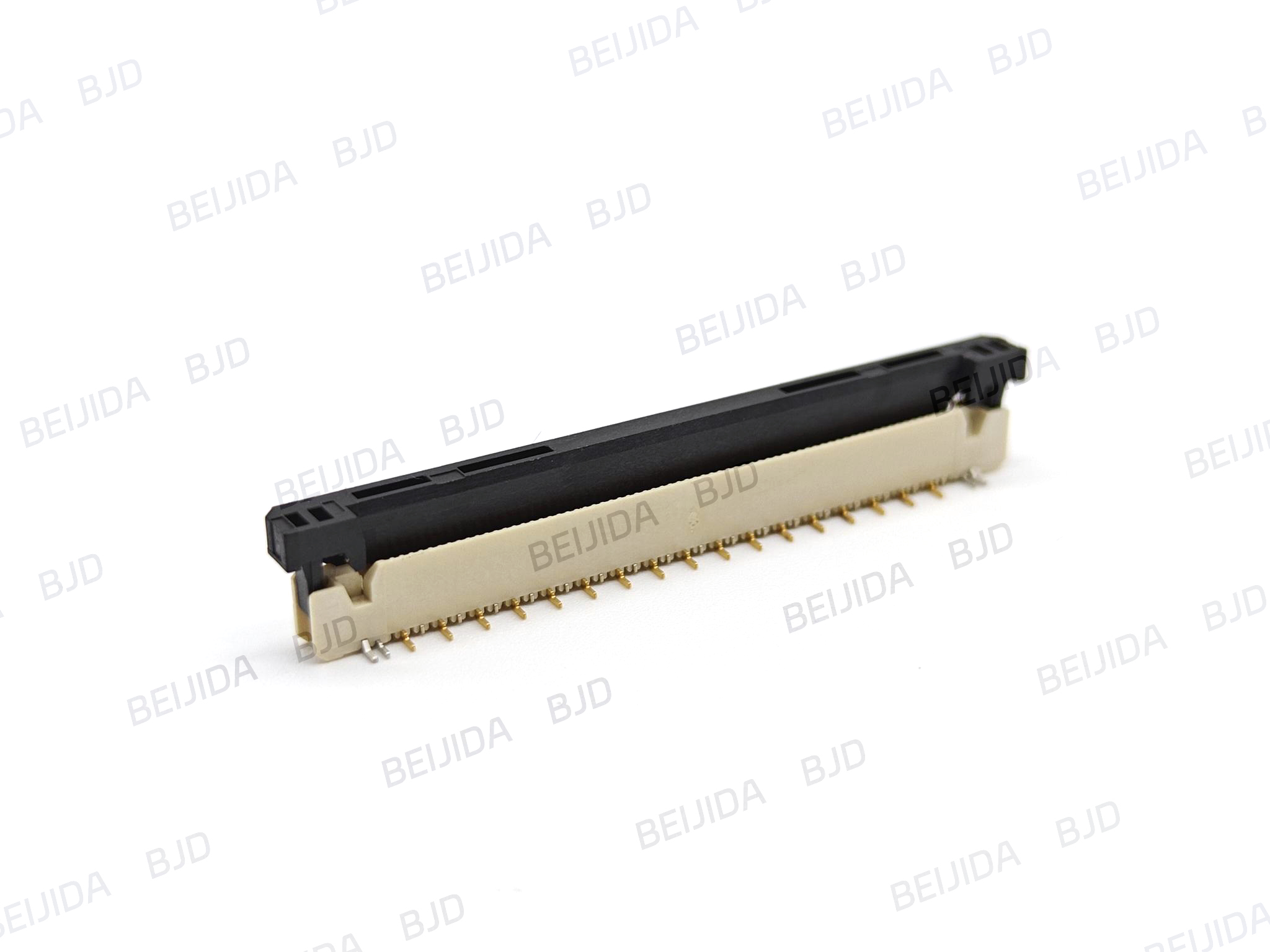

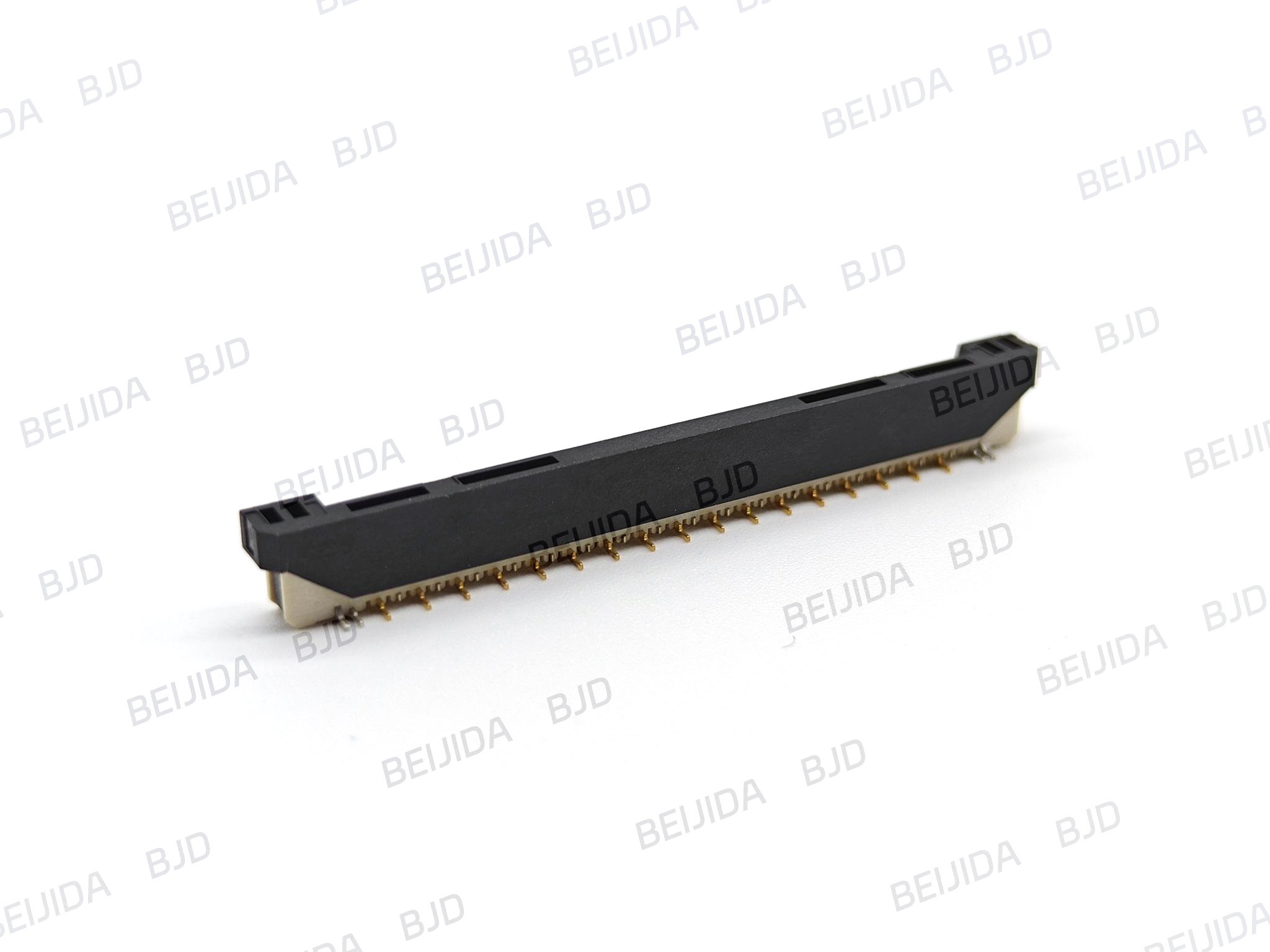

1.0-10 Series
The 1.0-10 Series uses a 1.0 mm pitch ZIF slider lock that opens and closes with a sliding motion. Horizontal FPC/FFC insertion is combined with vertical SMT mounting for layouts requiring this insertion and mounting arrangement.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
1.0 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Vertical (SMT)
-
Locking Mechanism
Slider
-
Pin Count
4–40
-
Pitch
1.0 mm
-
Compatible Replacement
-
Note
