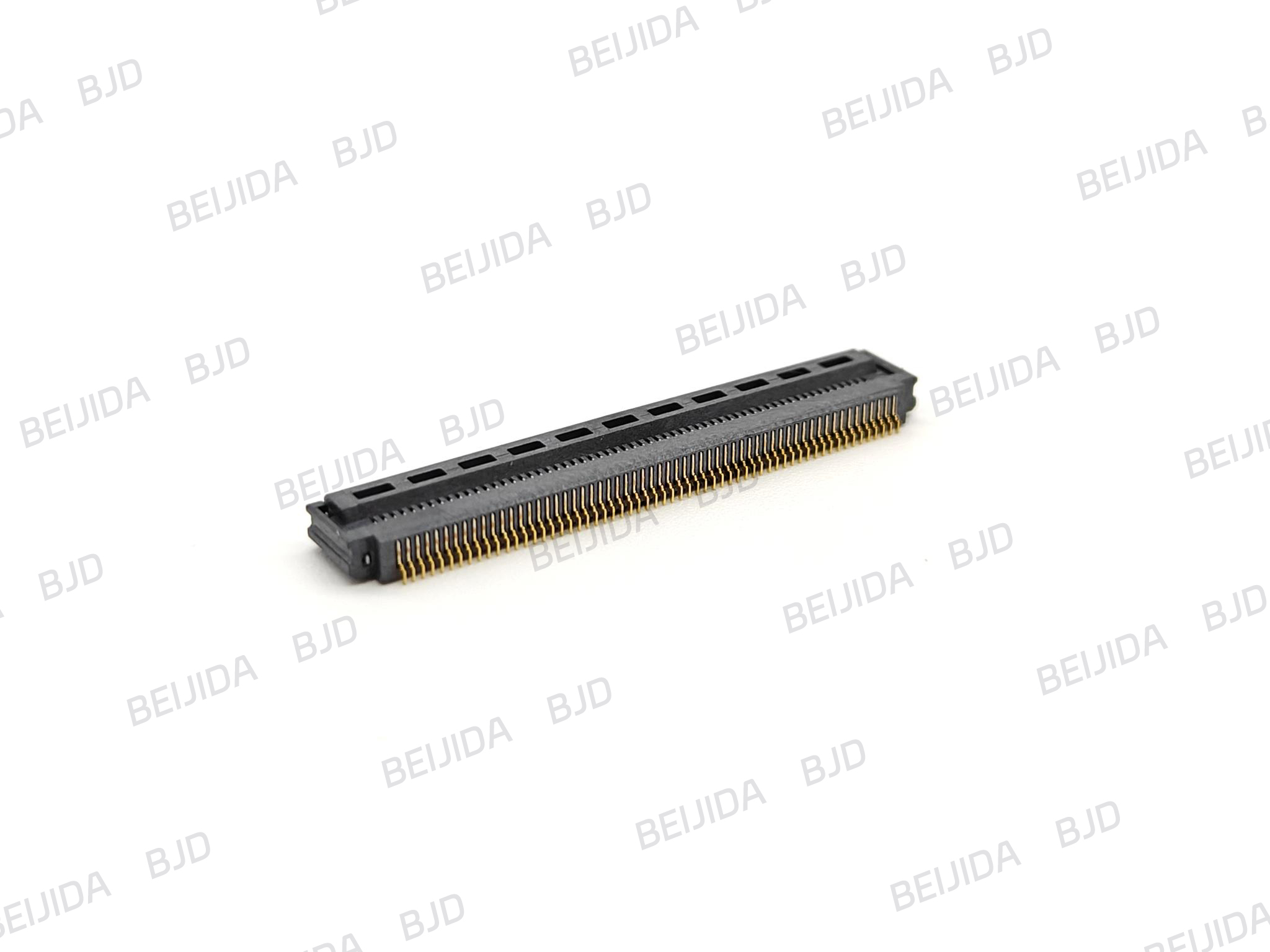

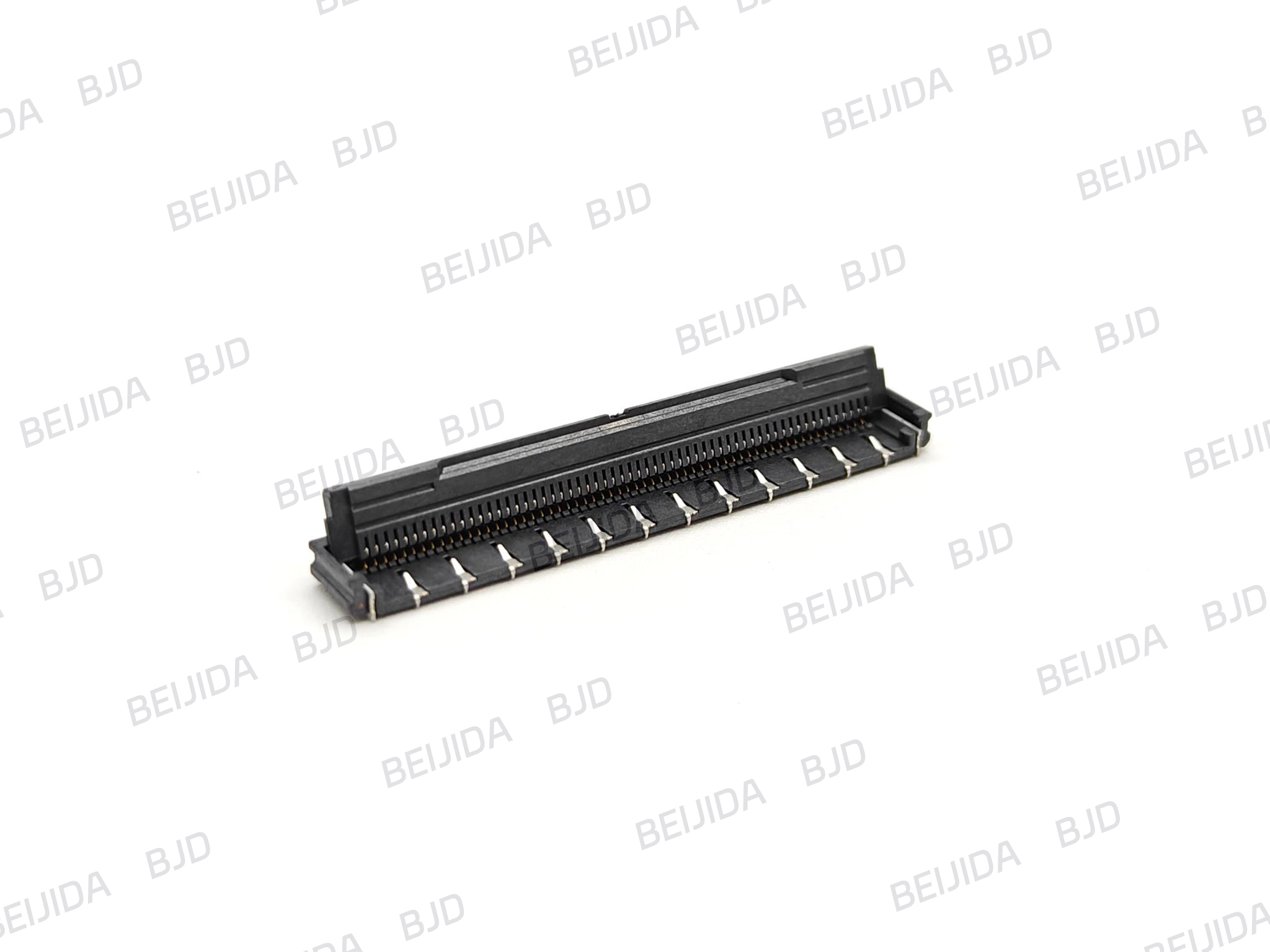

101092-20XX50
0.5-22B Series、0.5mm、ZIF、Horizontal（SMT）、Front flip、Bottom Contact、Ground Pin
Related parameters
-
Series
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
0.5 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
Bottom Contact
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
2.5 mm
-
Material
LCP, phosphor bronze
-
Applicable FPC/FFC
FPC/FFC with tabs
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Front flip
-
Pin Count
4–70
-
Pitch
0.5 mm
-
Compatible Replacement
HRS FH41 series
-
Note
Ground Pin
Applications
Download
Infotainment Systems
In-vehicle infotainment systems rely on high-speed connectors for display, audio, navigation, and smartphone connectivity.
Automotive Lamps
Automotive lamps need durable connectors for lighting, signaling, and safety functions across vehicle systems.
If you want to know more about our products
Contact us for product selection and custom connector support.
