0.635 Floating Series

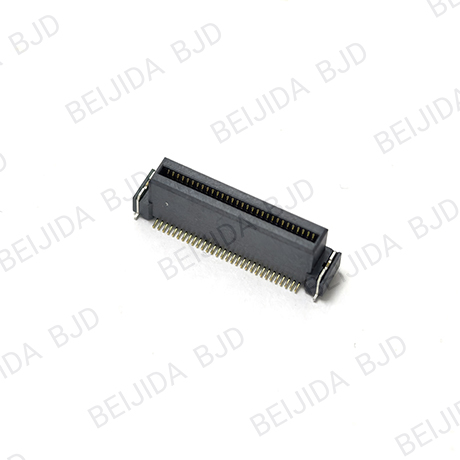

The 0.635 Floating Series is a 0.635 mm-pitch floating board-to-board connector family with 60- and 80-contact options and 6.3, 10, and 15 mm mating heights. Its floating side provides XY ±0.7 mm movement, and the family supports both straight and right-angle connection layouts. It uses SMT mounting and is rated at 0.5 A per contact and 50 V AC/DC, with an operating temperature range of -40°C to 105°C. It suits equipment requiring multiple stack heights, orientation options, and tolerance to assembly misalignment.
Related Parameters
-
Connector Type
-
Mating Part Number
-
Material
-
Pin Count
60, 80
-
Pitch
0.635mm
-
Mated Height
6.3, 10, 15
-
Floating Range
XY±0.7
-
Connection Orientation
-
Soldering Process
SMT
-
Rated Current
0.5A
-
Rated Voltage
50V
-
Withstand Voltage
-
Operating Temperature Range
-40℃ ~ 105℃
-
Transmission Rate
-
Supported Protocol
-
Power Terminals
0
-
Mating Cycles
-
RoHS 2
-
Halogen-Free
-
Compatible Replacement
KEL DW01，DW11 Series
-
Note
Mating Selection & Drawings
|
Fixed side →
Floating side ↓
|
0.635-3 123020-20XX50-HF 2D drawing | 0.635-6 123024-20XX50-HF 2D drawing | 0.635-2 123019-20XX50-HF 2D drawing | 0.635-4 123021-20XX50-HF 90° 2D drawing |
|---|---|---|---|---|
| 0.635-5 123023-20XX50-HF 2D drawing |
|
If you want to know more about our products
Contact us for product selection and custom connector support.
