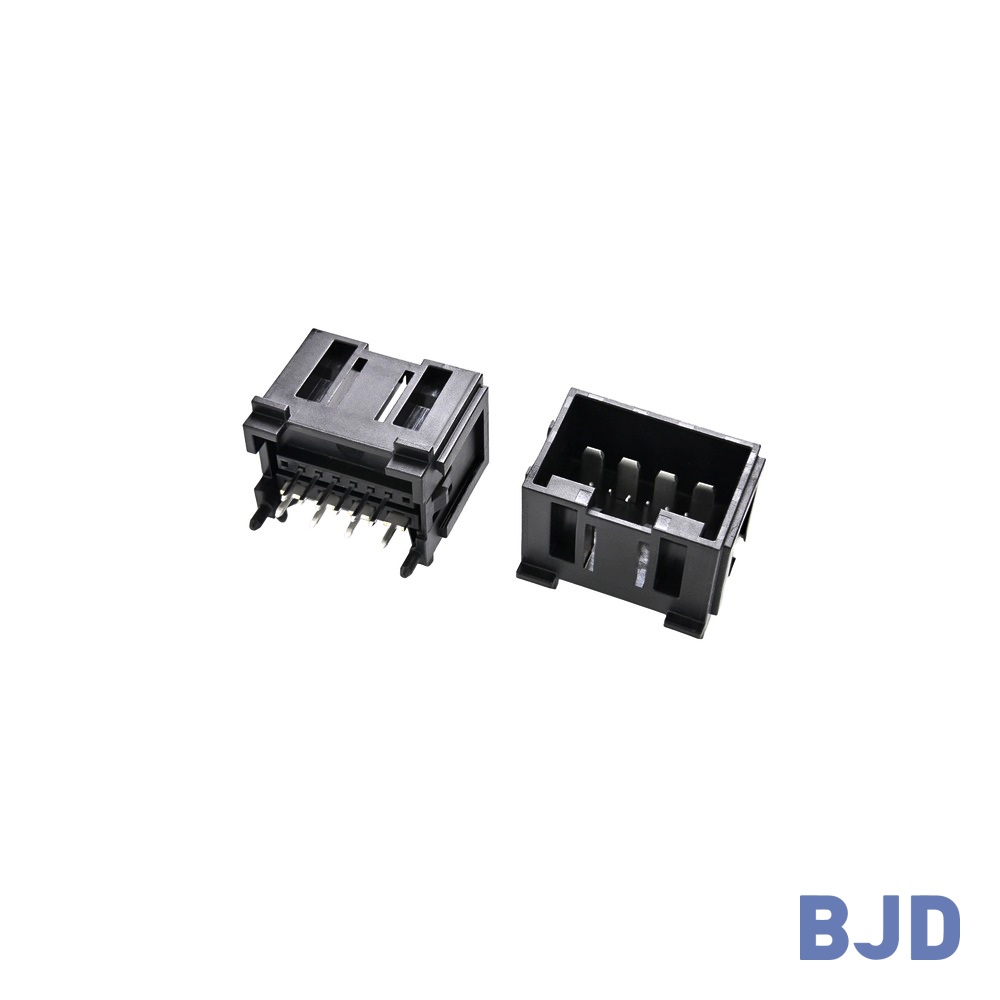

140064-40XX10
Signal pitch 2.5 mm / power pitch 5.0 mm, 10/12 pins (6+4/8+4), P2.5-2A right-angle board connector.
Related parameters
-
Series
P2.5-2 Series
-
Part Type
P2.5-2A right-angle board connector
-
Pin Count
10 / 12 (6+4 / 8+4)
-
Pitch
Signal: 2.5 mm; power: 5.0 mm
-
Material
HTP
-
Rated Current
Signal: 5 A; power: 16 A max/pin
-
Withstand Voltage
AC 1000 V
-
Operating Temperature Range
−40°C to +105°C
-
Contact Resistance
Signal: 20 mΩ max; power: 5 mΩ max
-
Soldering Process
PIP
-
Compatible Replacement
TE 2321709 (12-pin variant only)
