903021-100620

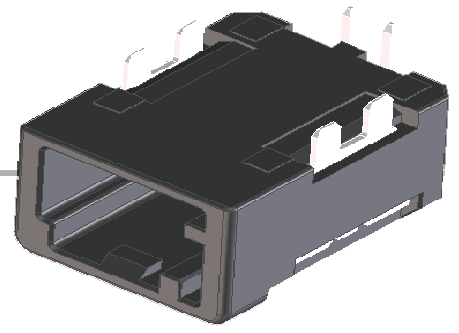

A 2.54 mm pitch, 6-pin PIP (through-hole reflow) PCB connector assembly in the WTB25401 Series.
Related parameters
-
Series
WTB25401 Series
-
Component Type
PCB connector assembly
-
Pin Count
6
-
Pitch
2.54 mm
-
Material
Terminals: brass; housing: PA9T
-
Rated Current
7 A AC/DC max/pin
-
Withstand Voltage
AC 500 V/min
-
Contact Resistance
20 mΩ max
-
Operating Temperature Range
−40°C to +105°C
-
PCB Mounting Method
PIP (through-hole reflow)
-
Compatible Replacement
Not specified
