160051-33045X

Related parameters

• Series

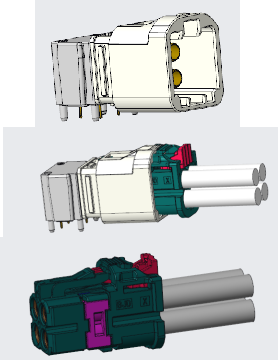

  HS4.0-2-4P MINI FAKRA Series

• Component Type

  4-pin wire-side connector

• Interface Standard

• Pin Count

  4

• Keying / Code

  A / Z; Black (keying A) / Water Blue (keying Z)

• Connector Orientation

• Applicable Cable

• Termination Process

• Material

  Keying A: PA, PBT, copper alloy, stainless steel; keying Z: PPO N300X, C5191R-EH, YCUT-FX-EH, SUS304

• Rated Voltage

• Rated Current

  1 A AC/DC max

• Withstand Voltage

  500 V DC/min

• Insulation Resistance

• Contact Resistance

  Center contact: 24 mΩ max; outer contact: 10 mΩ max

• Characteristic Impedance

• Operating Temperature Range

  −40°C to +105°C

• Vibration Rating

• Mating Product / Part Number

  140061-20049X

• Compatible Replacement

  TE 2298496-1; 2298494-1; 2298509-1; 2298721-1
