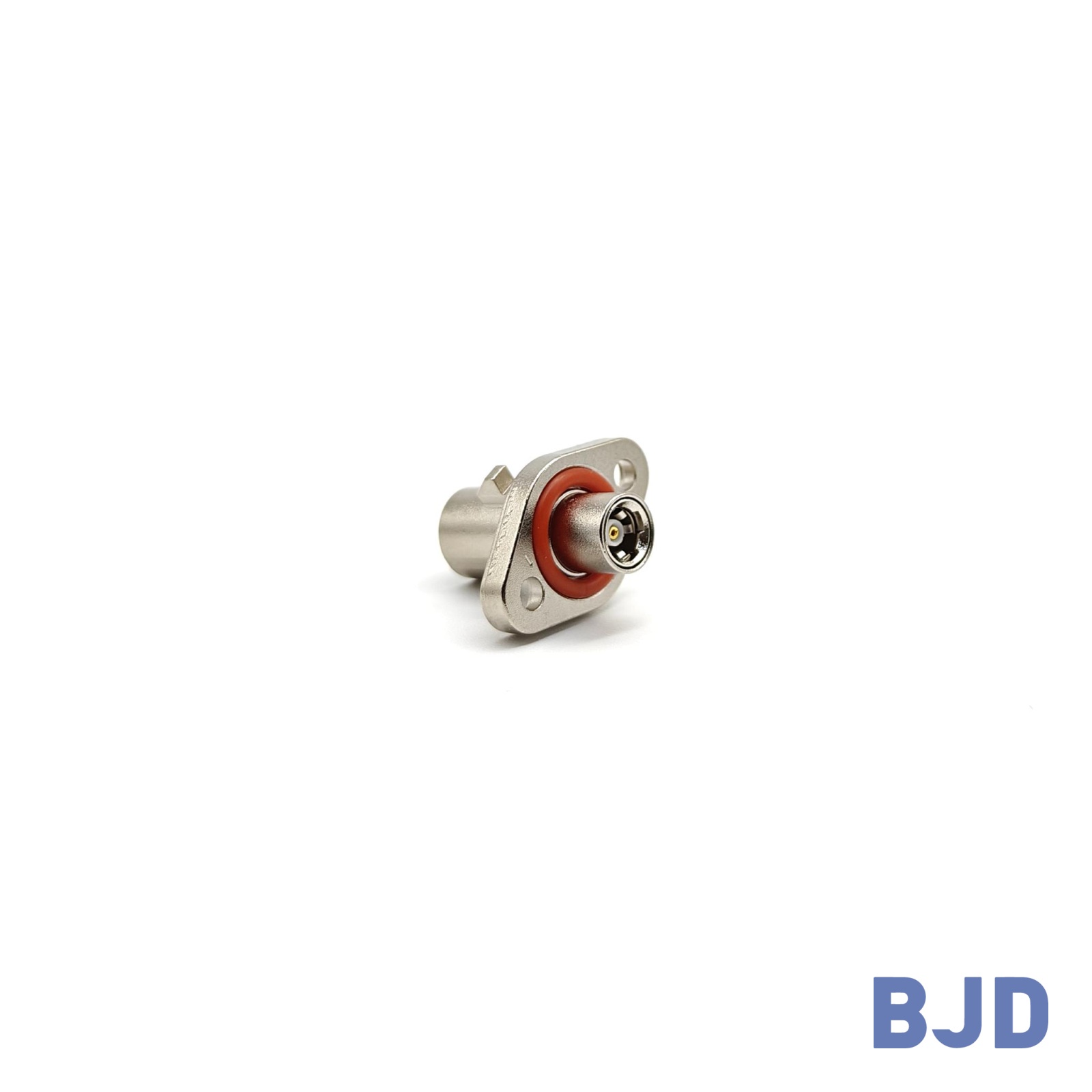

SMB 141131X Series FAKRA Sealed Adaptor 141131-420190

Series

SMB 141131X Series

Component Type

FAKRA sealed adaptor with countersunk mounting holes

Mounting Method

Dual-M2 bolt flange mounting

Material

Insulator: thermoplastic; terminal: copper alloy; body/shell: zinc alloy; O-ring: silicone rubber

Rated Voltage

60 V AC/DC max

Rated Current

1 A AC/DC max

Withstand Voltage

500 V AC/min

Insulation Resistance

≥1000 MΩ

Center Contact Resistance

5 mΩ max (initial); 40 mΩ max (after environmental testing)

Outer Contact Resistance

5 mΩ max (initial); 40 mΩ max (after environmental testing)

Operating Temperature Range

−40°C to +105°C

Mating Force

25 N max

Unmating Force

25 N max

Female Locking Force

80 N min

Durability

100 cycles

Ingress Protection

IP67

Mating Products

141131-210150
