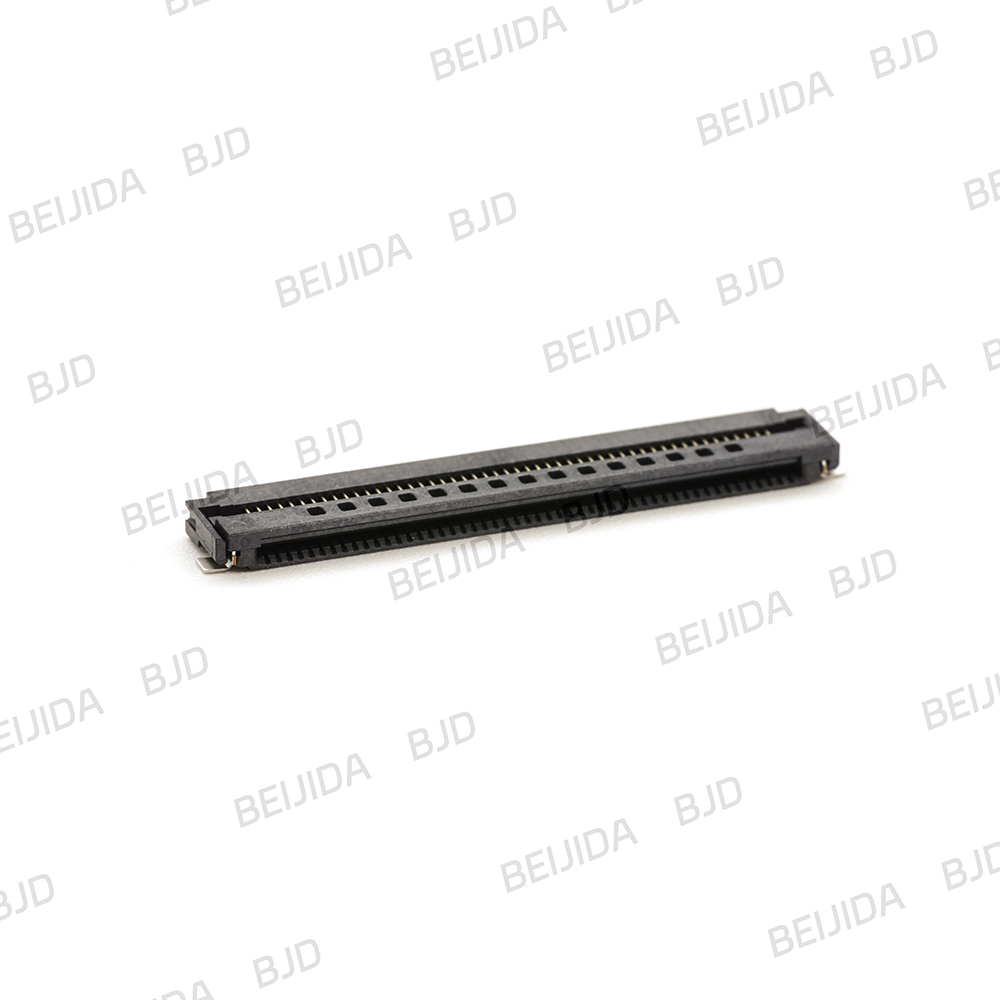

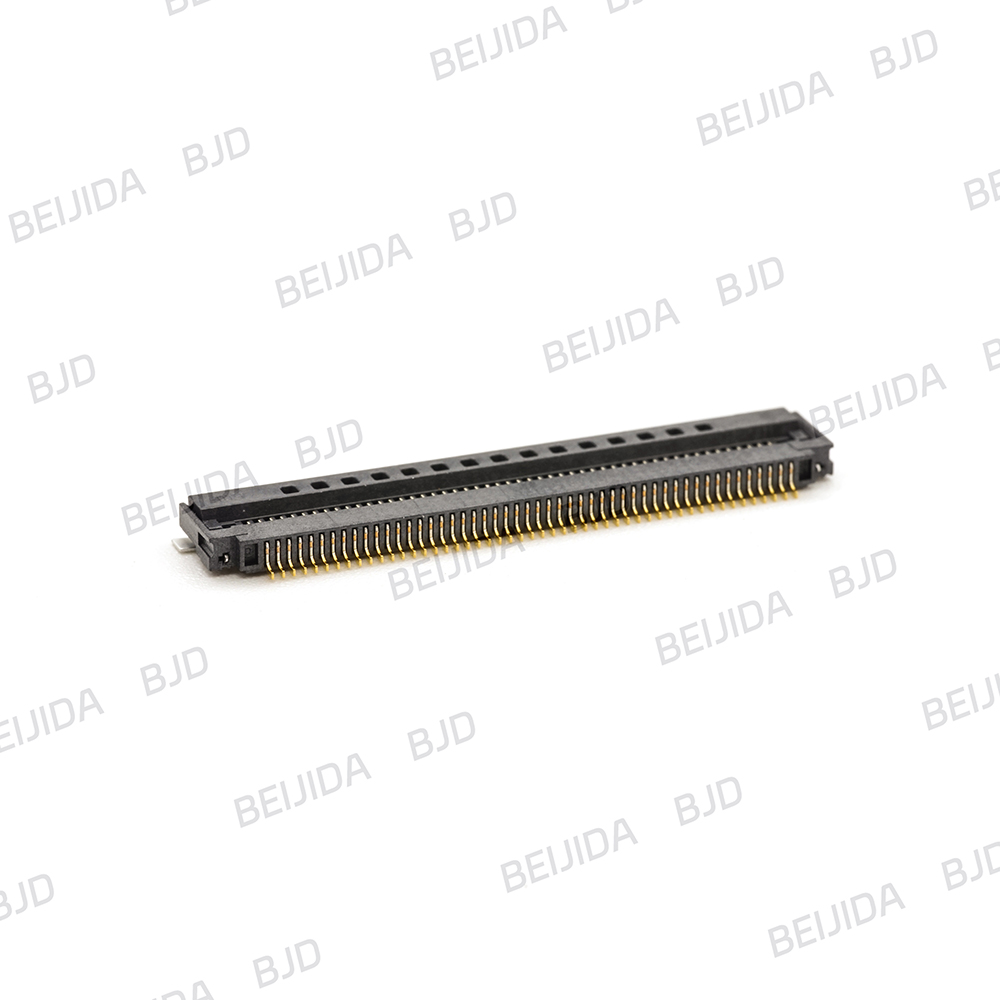

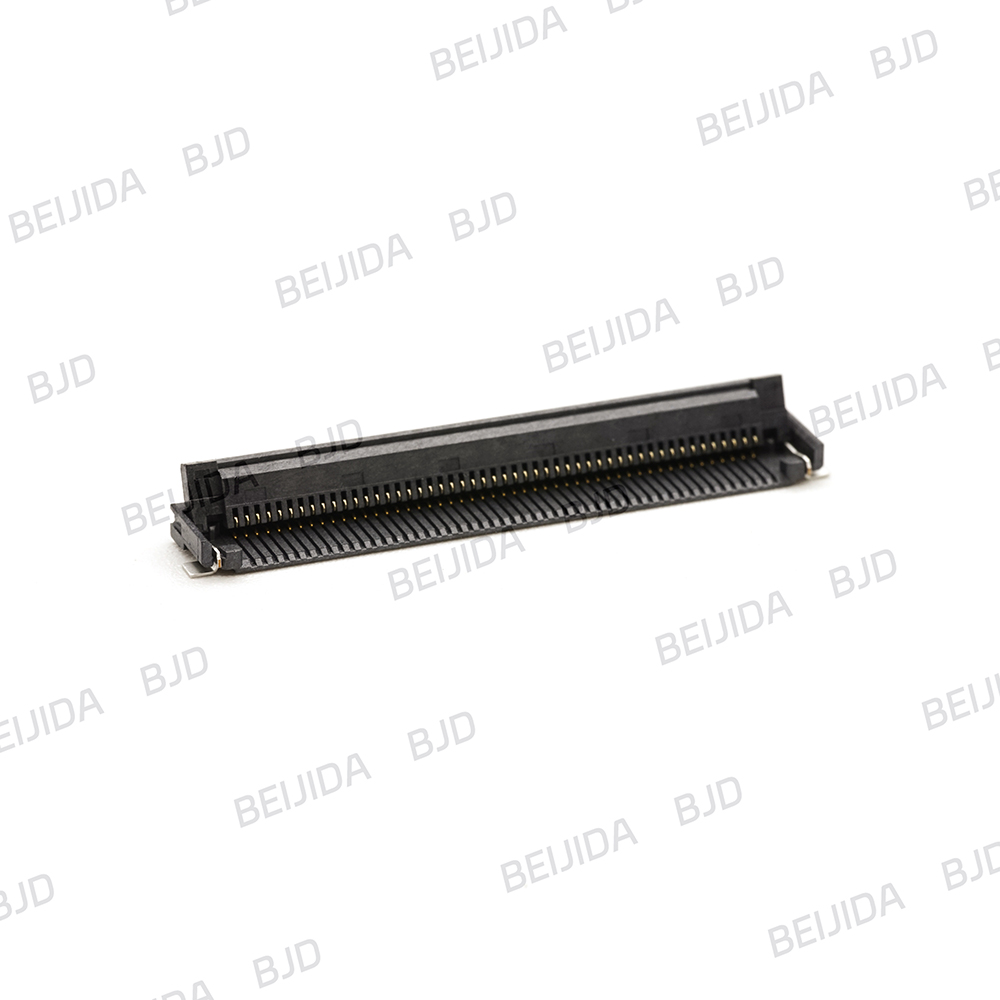

0.5-26 Series
The 0.5-26 Series uses a 0.5 mm pitch front-flip ZIF actuator with a single contact point on the bottom side. It accepts tabbed FPC/FFC through horizontal insertion; closing the actuator secures the cable. The connector uses horizontal SMT mounting.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
-
Rated Current
0.5 A
-
Rated Voltage
50 V
-
Operating Temperature Range
-40°C ~ 105°C
-
Contact Configuration
Bottom Contact
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Front flip
-
Pin Count
4 - 70
-
Pitch
0.5 mm
-
Compatible Replacement
HRS FH52/FH52K
-
