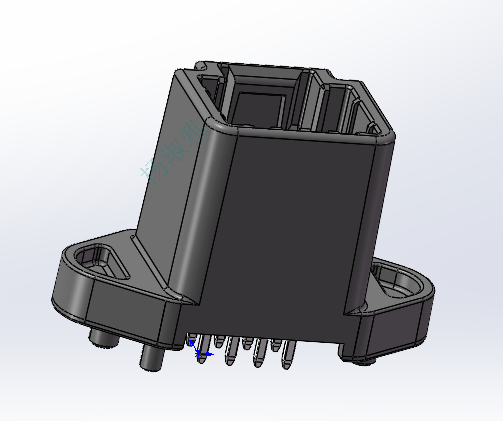

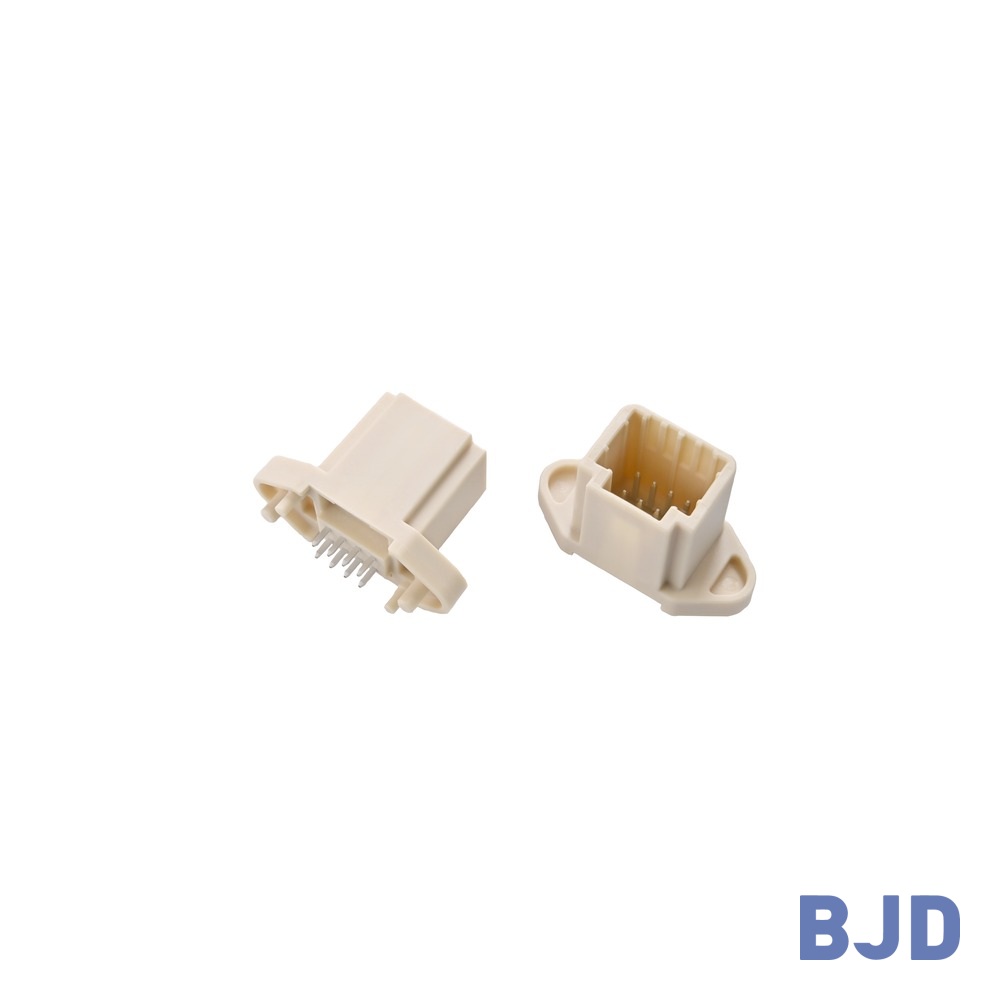

140065-200810

Related parameters

• Series

  P2.2-15 Series

• Material

  PA9T

• Rated Current

  1 A max/pin

• Withstand Voltage

  AC 1000 V / DC 1000 V

• Operating Temperature Range

  −40°C to 105°C

• Contact Resistance

  5 mΩ max (after test)

• Soldering Process

  PIP

• Pin Count

  8

• Pitch

  2.2 mm
