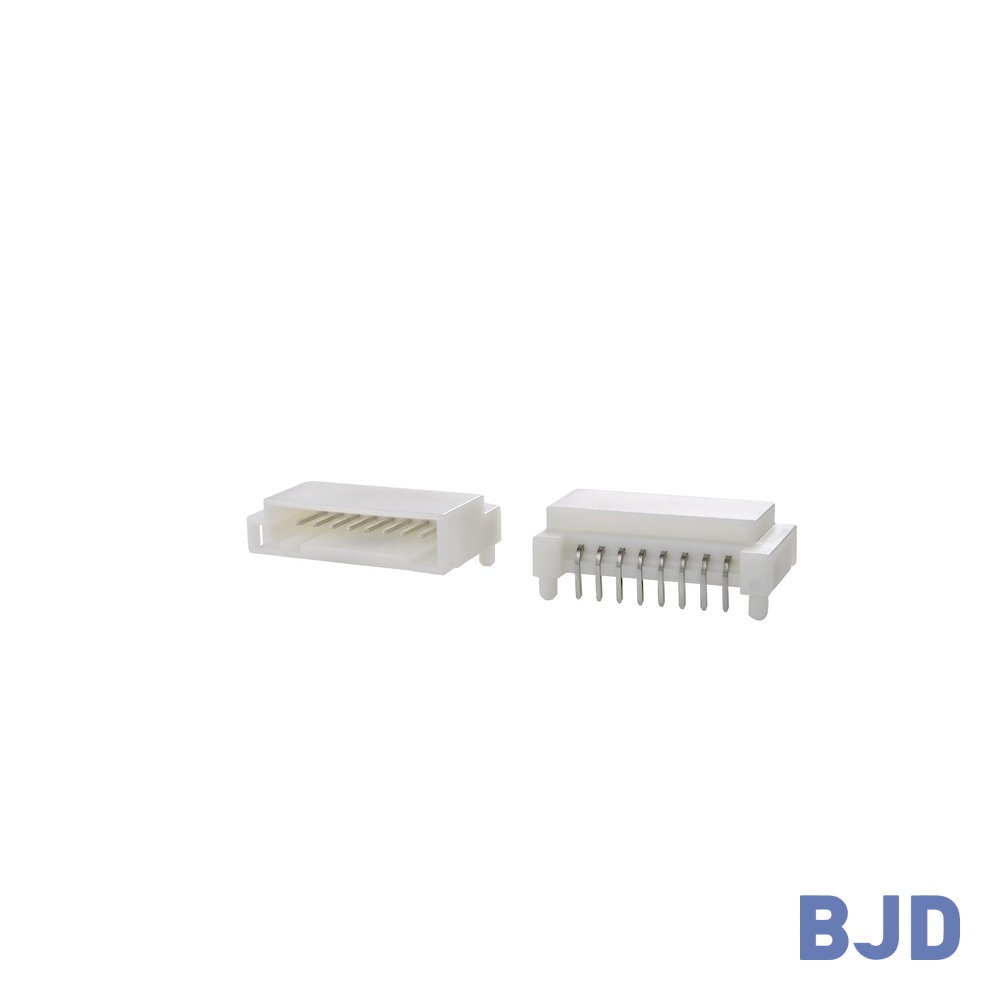

14001X-40082X

Related parameters

• Series

  P2.54-1 Series

• Material

  PA6T+GF30

• Rated Current

  6 A max/pin

• Withstand Voltage

  AC 1000 V

• Operating Temperature Range

  −40°C to 105°C

• Contact Resistance

  40 mΩ max (initial); 60 mΩ max (after test)

• Soldering Process

  DIP / PIP

• Pin Count

  8

• Pitch

  2.54 mm
