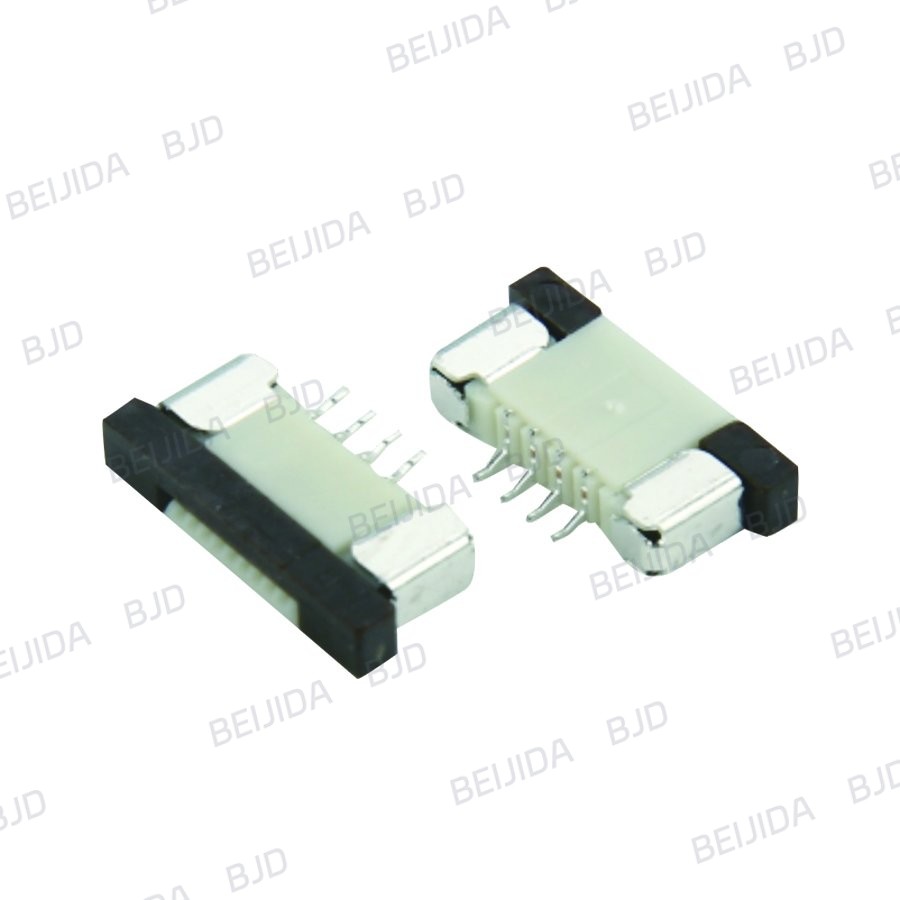

1.0-6 Series
The 1.0-6 Series features a 1.0 mm-pitch slider-lock ZIF design with horizontal FPC/FFC insertion. Upper-contact and bottom-contact models are available to suit the orientation of the exposed conductors on the FPC/FFC. It accepts FPC/FFC without locking tabs.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
1.0 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
Bottom Contact / Upper Contact
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Slider
-
Pin Count
4–30
-
Pitch
1.0 mm
-
Compatible Replacement
-
Note
