140080-200190

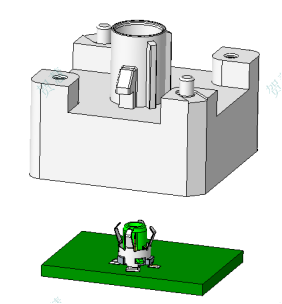

Floating SMB PCB receptacle in the HSO-3-1P FAKRA Straight & Floating SMB Series.
Related parameters
-
Series
HSO-3-1P FAKRA Straight & Floating SMB Series
-
Material
PA10T-GF30 (30%), C7025
-
Housing Color
—
-
Characteristic Impedance
50 Ω ±10%
-
Frequency Range
DC～6 GHz
-
Contact Resistance
Center contact: 40 mΩ max; outer conductor: 20 mΩ max
-
Rated Current
1 A max
-
Withstand Voltage
750 V AC/min
-
Operating Temperature Range
−40°C～+105°C
-
Soldering Process
SMT
-
Compatible Replacement
TE 2338810-1, 2338810-3
