160111-3000XX

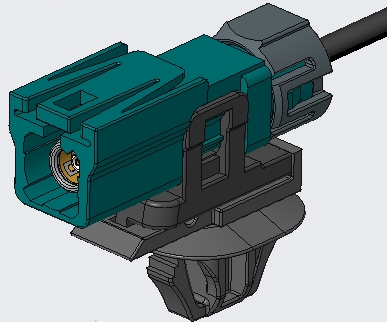

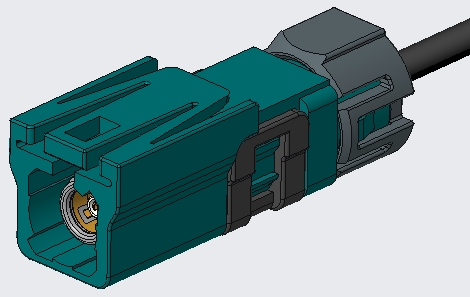

HS0-1-1P FAKRA Series 1-pin waterproof female wire harness for RG174 cable, available with or without a latch.
Related parameters
-
Series
HS0-1-1P FAKRA Series
-
Part Type
Waterproof female wire harness for RG174 cable
-
Pin Count
1
-
Material
PBT, SPS/PA66, silicone, PTFE/PP, phosphor bronze, brass
-
Applicable Cable
RG174
-
Latch Configuration
Available with / without latch
-
Contact Resistance
5 mΩ max (initial); 40 mΩ max (after test)
-
Rated Current
1 A AC/DC max
-
Withstand Voltage
500 V AC/min
-
Operating Temperature Range
−40°C to +105°C
-
Compatible Replacement
Molex 73403-0370 (without latch); Molex 73403-0410 (with latch)
