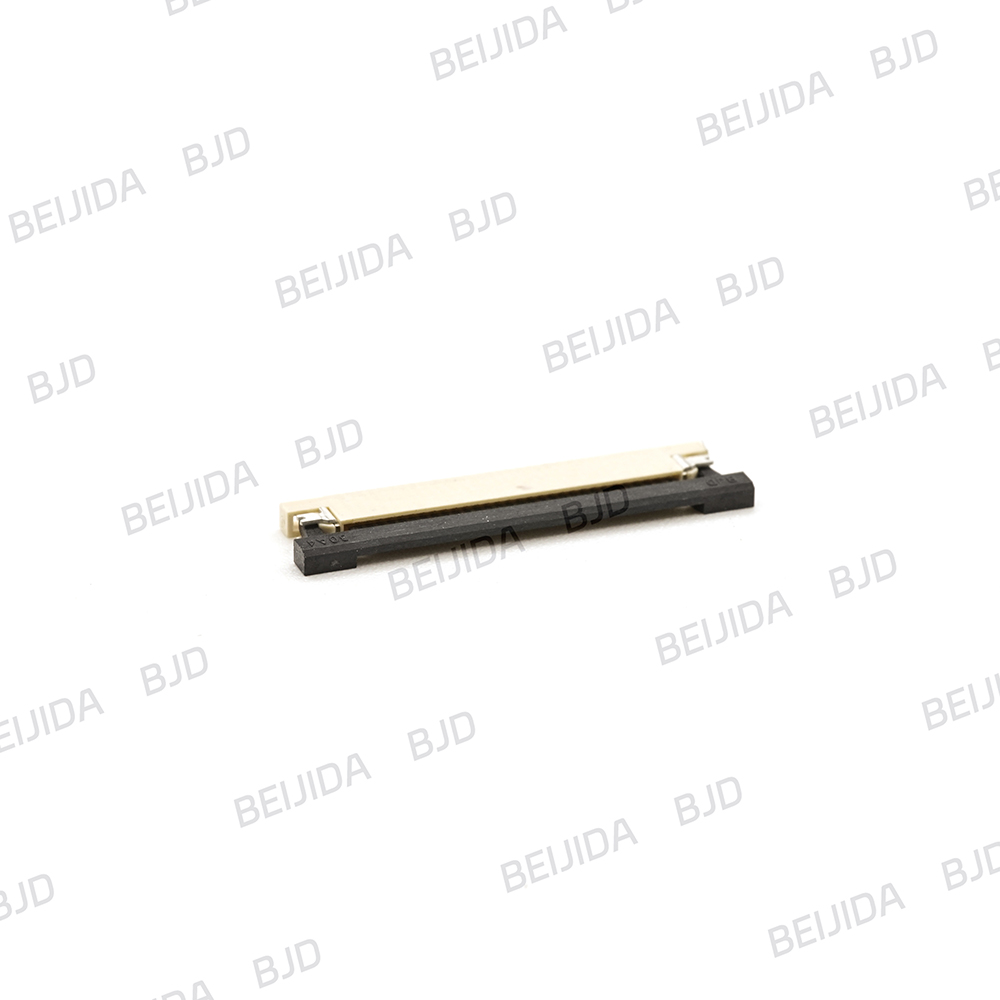

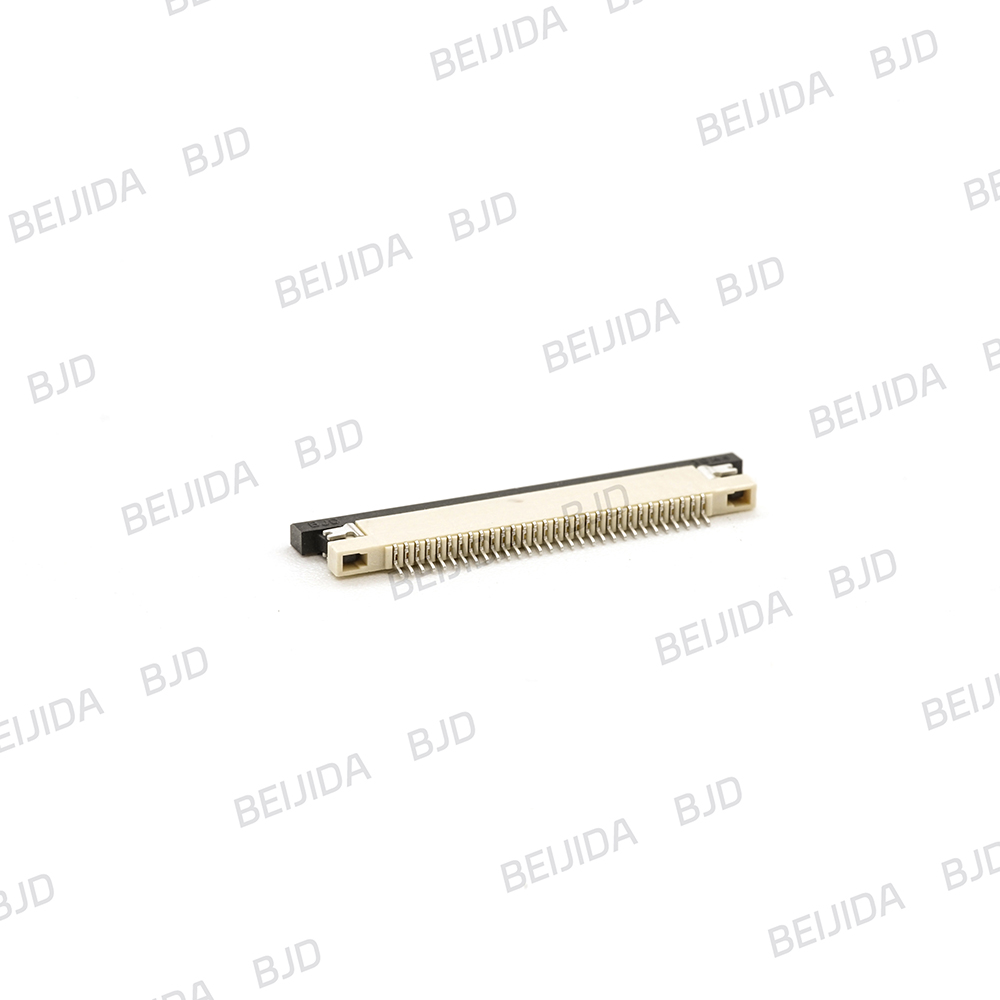

0.5-10 Series
The 0.5-10 Series features a low-profile, 0.5 mm-pitch slider-lock ZIF design for layouts with limited installation height. Upper-contact and bottom-contact models are available, with horizontal insertion for FPC/FFC without locking tabs.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
0.5 A
-
Rated Voltage
50 V
-
Operating Temperature Range
-40°C ~ 105°C
-
Contact Configuration
Upper Contact / Bottom Contact
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Slider
-
Pin Count
4 - 50
-
Pitch
0.5 mm
-
Compatible Replacement
IRISO 9682 series ; Kyocera 6392 series
-
