0.5-8 Series

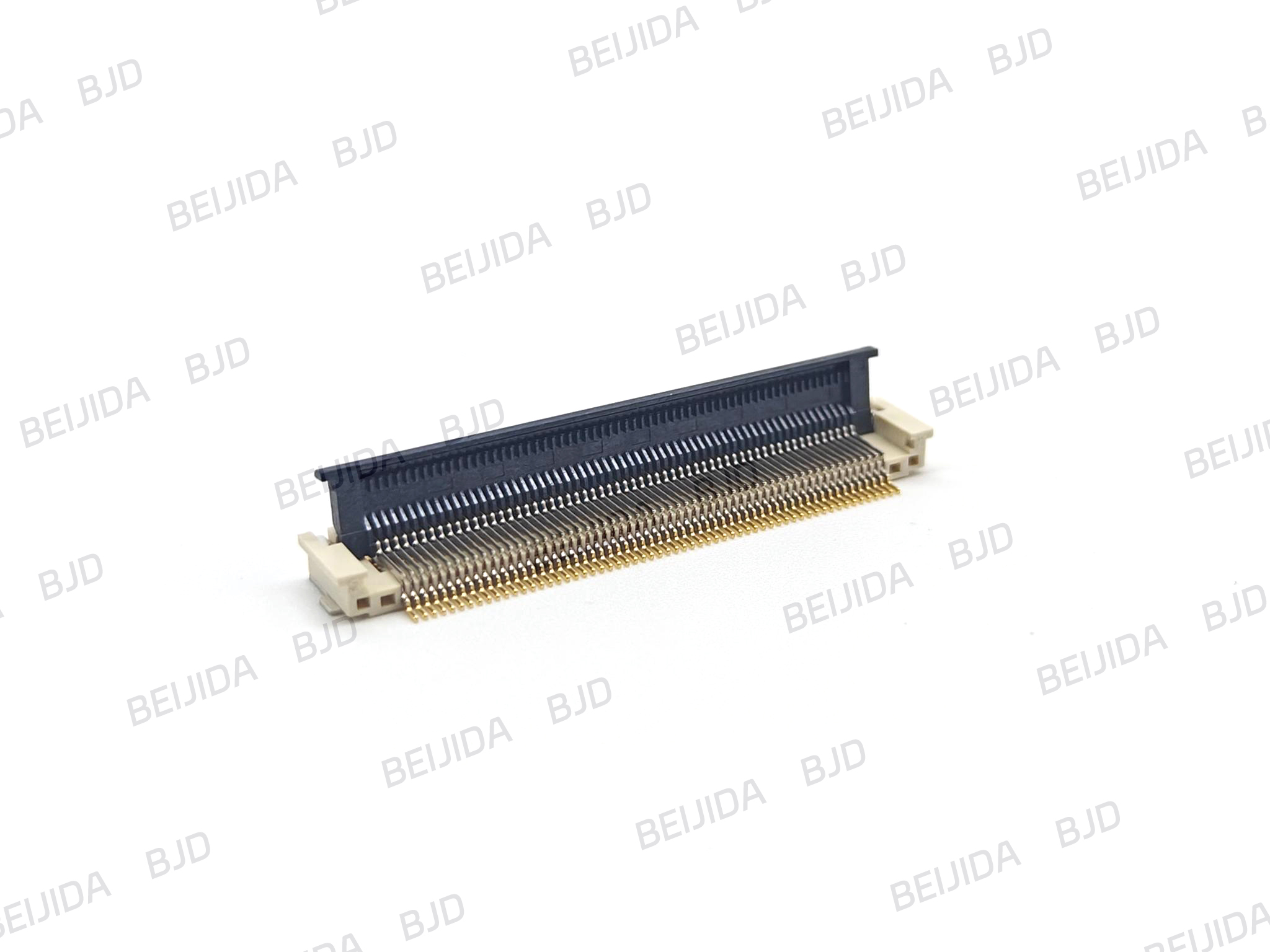

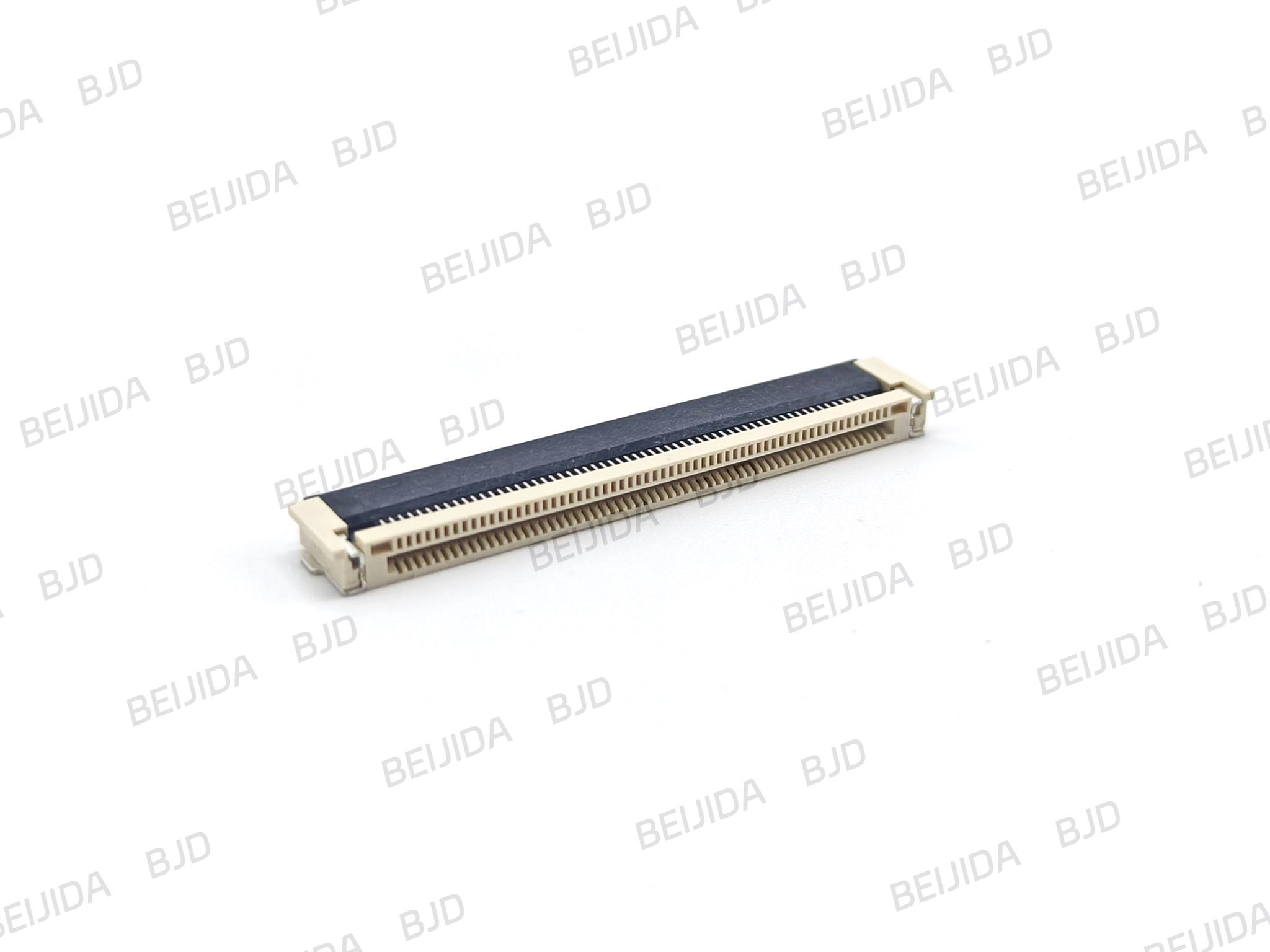

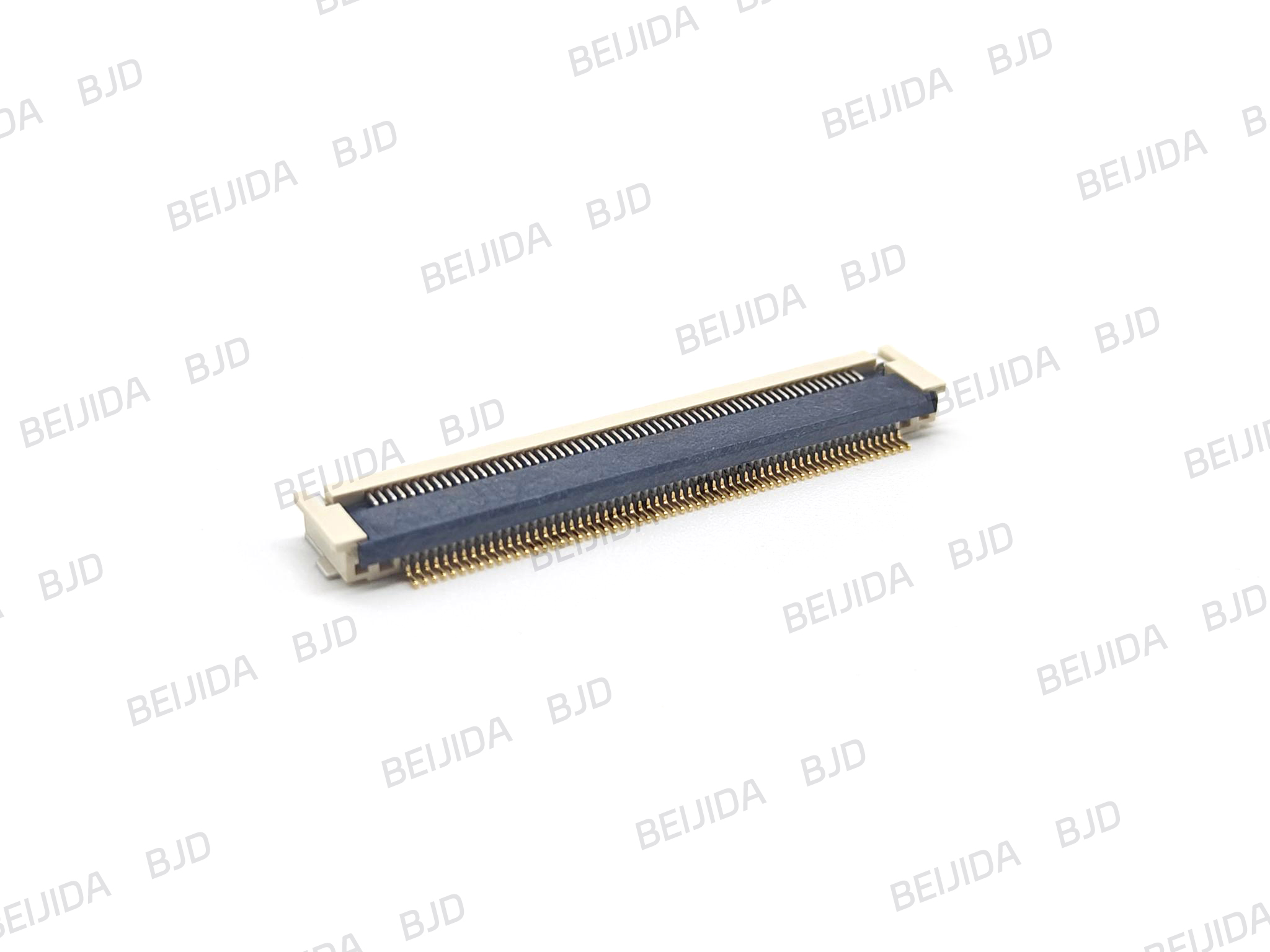

The 0.5-8 Series features a 0.5 mm-pitch rear-flip ZIF design with a rotating actuator for opening and closing. It uses bottom contacts and horizontal insertion for FPC/FFC without locking tabs.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
ZIF
-
Offset Terminal Design
——
-
Rated Current
0.5 A
-
Rated Voltage
50 V
-
Operating Temperature Range
-40°C ~ 105°C
-
Contact Configuration
Bottom Contact
-
FPC/FFC Insertion Direction
Horizontal
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Horizontal (SMT)
-
Locking Mechanism
Rear flip
-
Pin Count
4 - 60
-
Pitch
0.5 mm
-
Compatible Replacement
-
Note
