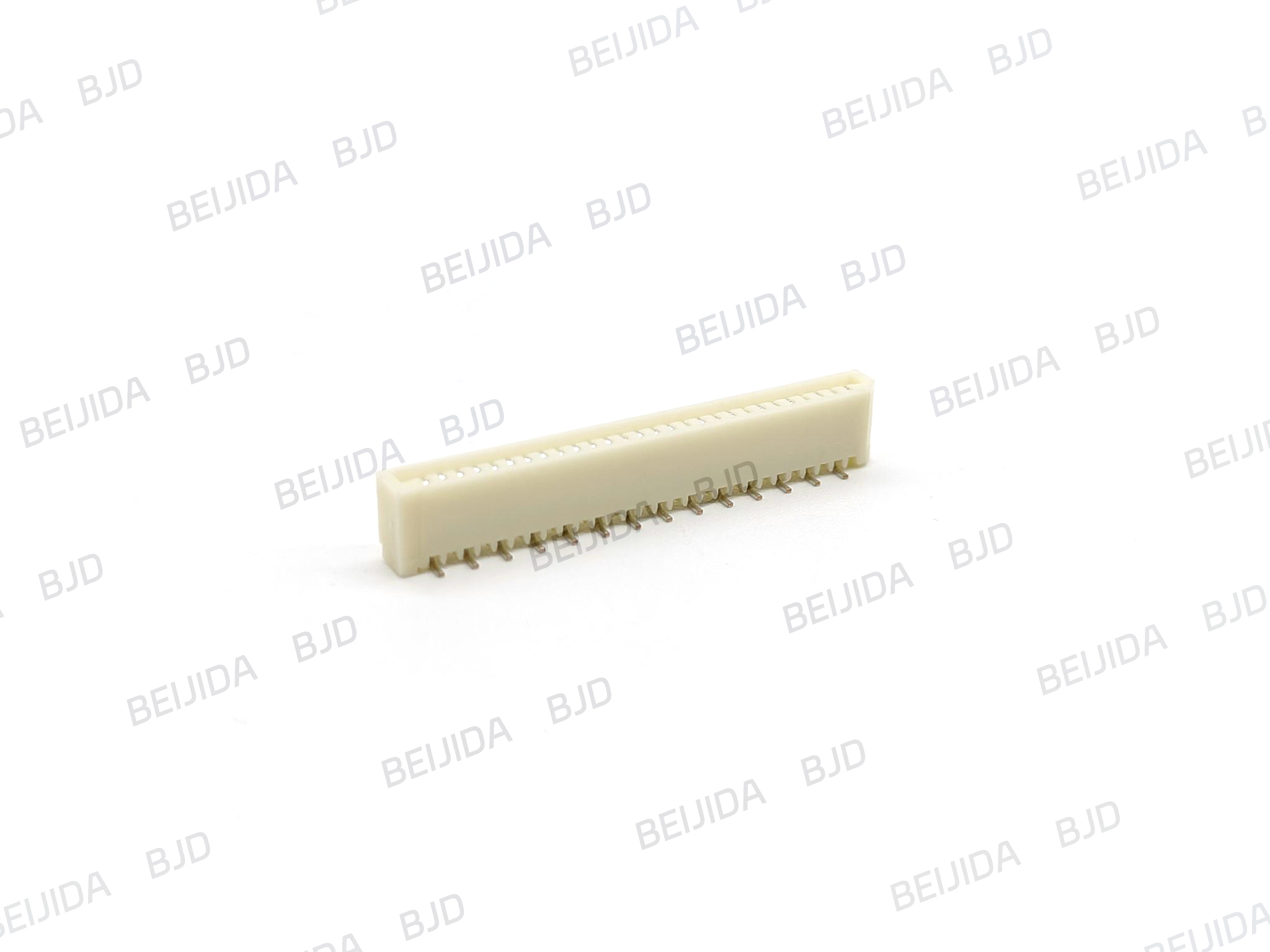

1.0-8 Series
1.0 mm pitch, non-ZIF, vertical insertion, vertical SMT mounting, no lock, front-row-forward terminals, 3–40 pins, 5.10 mm connector height, for latchless FPC/FFC.
Related Parameters
-
Component Type
-
ZIF / Non-ZIF
Non-ZIF
-
Offset Terminal Design
Front Row Forward
-
Rated Current
0.5 A/Pin
-
Rated Voltage
50 V AC/DC
-
Operating Temperature Range
-40°C to 105°C
-
Contact Configuration
-
FPC/FFC Insertion Direction
Vertical
-
Connector Width
-
Connector Height
-
Material
-
Applicable FPC/FFC
-
Mount Type
Vertical (SMT)
-
Locking Mechanism
No lock
-
Pin Count
3–40
-
Pitch
1.0 mm
-
Compatible Replacement
MOLEX 52808 series
-
