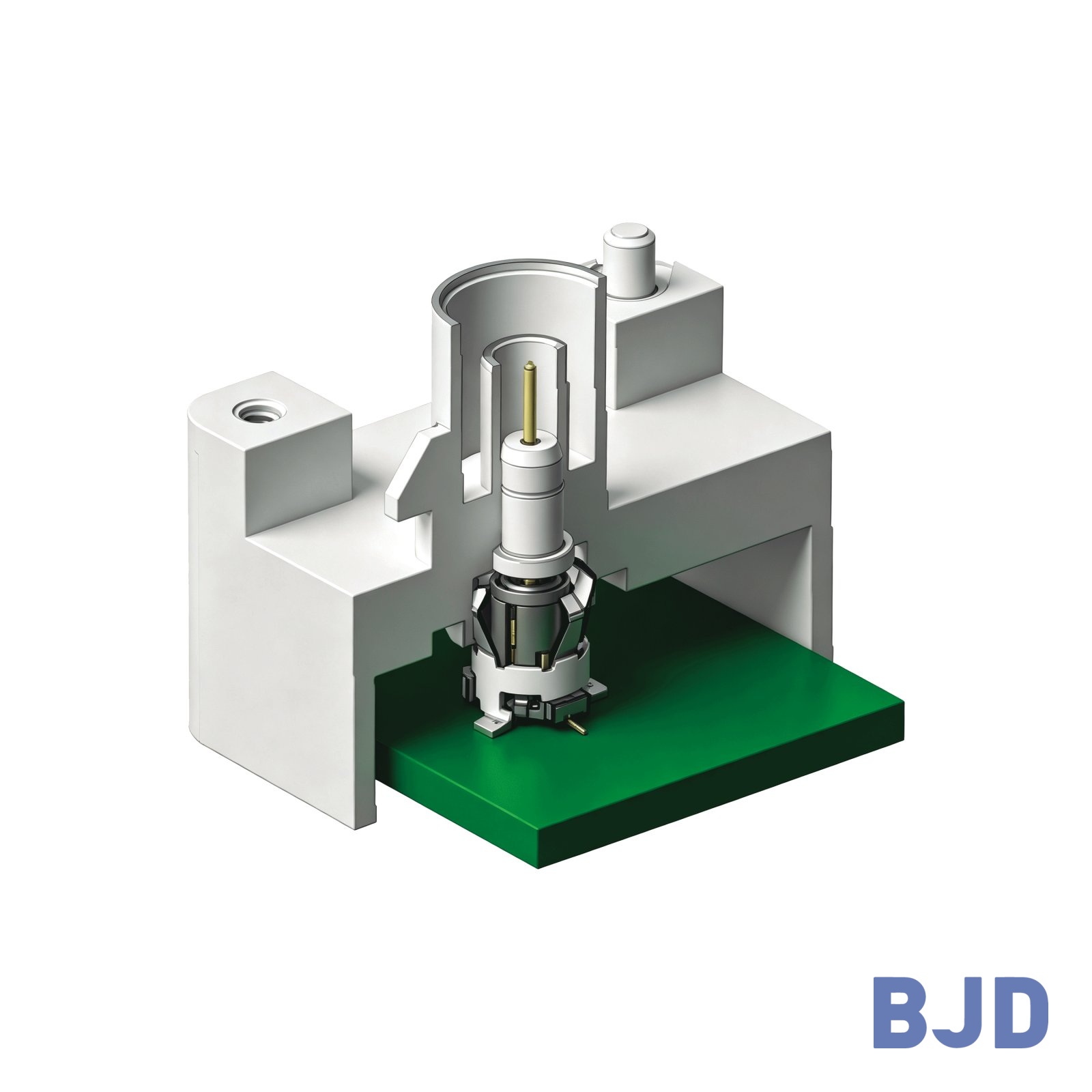

HSO-3-1P FAKRA Straight & Floating SMB Series
The HSO-3-1P FAKRA Straight & Floating SMB Series comprises a straight FAKRA PCB connector and a floating SMB PCB receptacle, with 50 Ω ±10% characteristic impedance, a DC–6 GHz frequency range, and an operating temperature range of −40°C to +105°C.
Related Parameters
-
Component Type
-
Components
Straight FAKRA PCB connector; floating SMB PCB receptacle
-
Material
-
Rated Voltage
-
Rated Current
1 A max
-
Withstand Voltage
750 V AC/min
-
Insulation Resistance
-
Center Contact Resistance
-
Outer Contact Resistance
-
Contact Resistance
Center contact: 40 mΩ max; outer conductor: 20 mΩ max
-
Characteristic Impedance
50 Ω ±10%
-
Frequency Range
DC～6 GHz
-
Operating Temperature Range
−40°C～+105°C
-
Mating Force
-
Unmating Force
-
Soldering Process
SMT
-
Compatible Replacement
-
Note
