140066-20029X

Related parameters

• Series

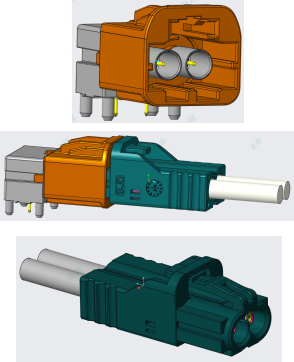

  HS2.0-1-2P MINI FAKRA Series

• Part Type

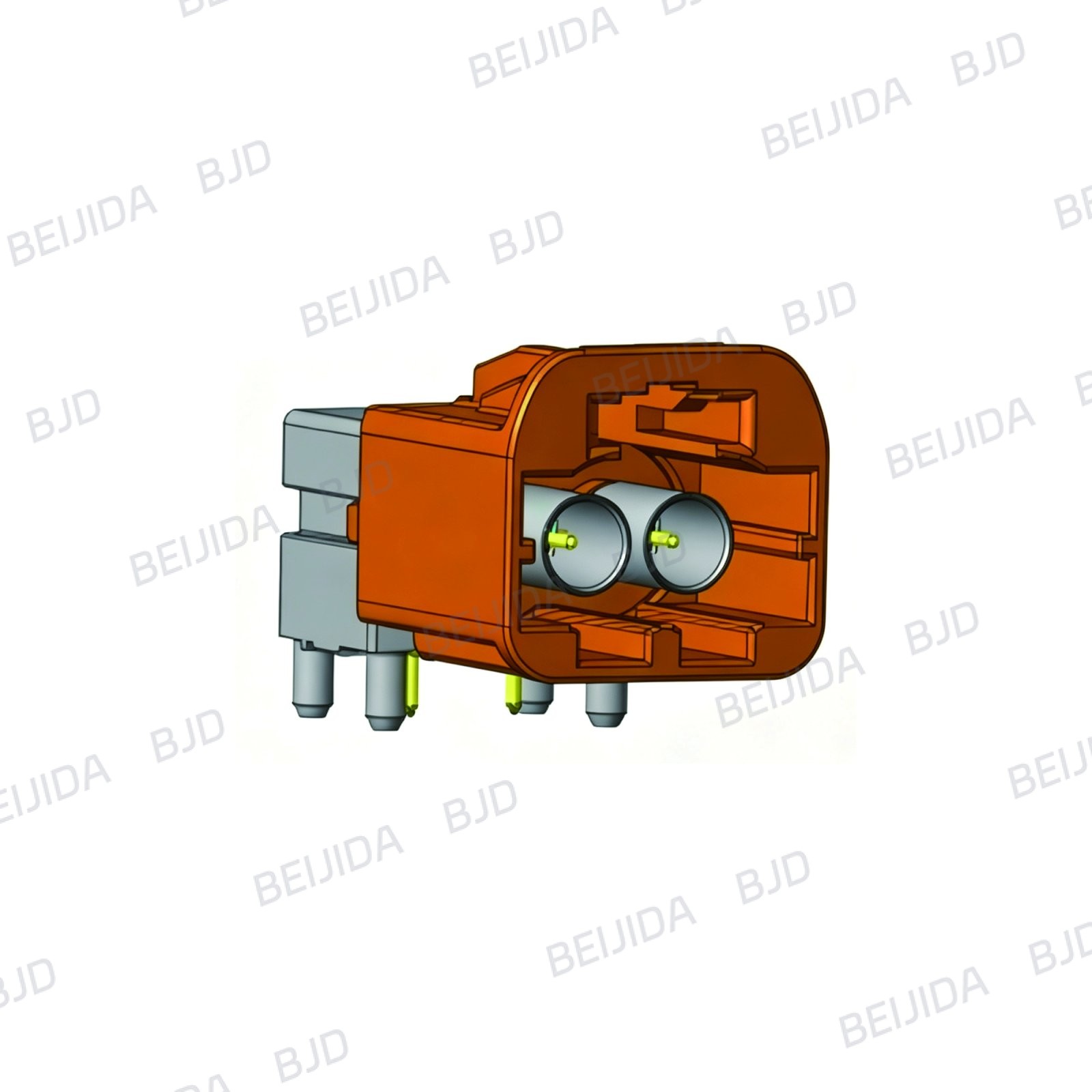

  2-pin right-angle horizontal board-side connector

• Pin Count

  2

• Material

  PA9T, zinc alloy, phosphor bronze, LCP

• Housing Color

  Water Blue

• Contact Resistance

  Center contact: 24 mΩ max; outer contact: 10 mΩ max

• Rated Current

  1 A AC/DC max

• Withstand Voltage

  500 V DC/min

• Operating Temperature Range

  −40°C to +105°C

• PCB Mounting Method

  PIP

• Mating Product

  160066-30029X

• Compatible Replacement

  Rosenberger AMS29B-40MZ5-y
