0.5-5 Floating Series

Name: 0.5-5 Floating Series
Brand: BEIJIDA ELECTRONIC(BJD)
SKU: 55

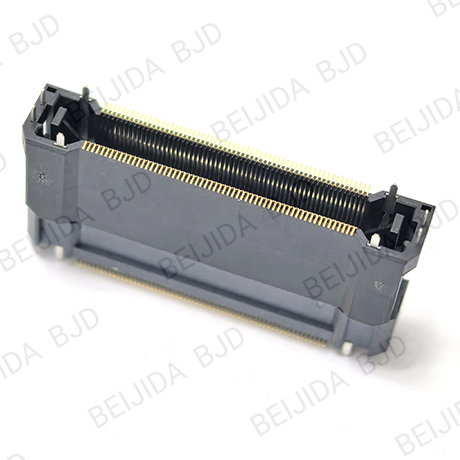

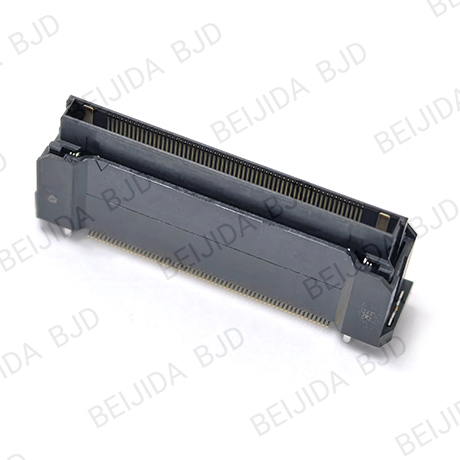

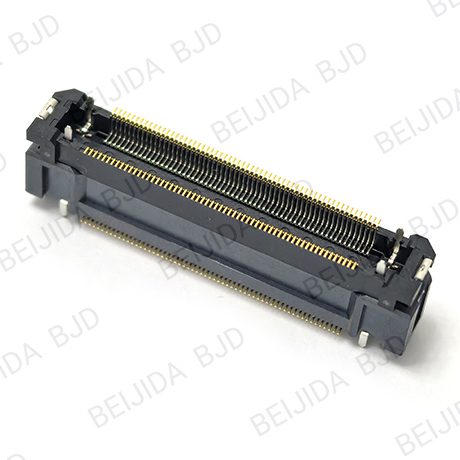

The 0.5-5 Floating Series is a 0.5 mm-pitch high-speed floating board-to-board connector family available in SMT and through-hole (THR) versions. Its XY ±0.6 mm floating structure absorbs board misalignment, while supported double-floating combinations provide up to XY ±1.2 mm movement. The family covers multiple 20- to 120-contact configurations and 8–30 mm mating heights, with ratings of 0.5 A per contact and 50 V AC/DC, data rates up to 8 Gbps, and an operating temperature range of -55°C to 105°C. It suits equipment requiring flexible stack heights, high-speed links, and tolerance to assembly misalignment.

View Series Products

Related Parameters

Connector Type
Mating Part Number
Material
Pin Count

20, 30, 40, 50, 60, 80, 100, 120
Pitch

0.5 mm
Mated Height

8, 10, 12, 14, 15, 19, 20, 25, 30 mm
Floating Range

XY ± 0.6 mm; XY ± 1.2 mm (dual-floating)
Connection Orientation
Soldering Process

THR, SMT
Rated Current

0.5A
Rated Voltage

50V
Withstand Voltage
Operating Temperature Range

-55℃ ~ 105℃
Transmission Rate

8Gbps
Supported Protocol

PCI-Express 3.0
Power Terminals

4
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement

HRS FX23 Series ; Amphenol B329，B324，B322 Series；HRS FX23L
Note

Mating Selection & Drawings

Board-to-board connector mated-height combinations
Fixed side Floating side	0.5-5D-SMT123048-60XX50-HF 2D drawing 0.5-5D-THR123042-60XX50-HF	0.5-5E-SMT123049-60XX50-HF 2D drawing 0.5-5E-THR123043-60XX50-HF 2D drawing	0.5-5B-THR123040-60XX50-HF 2D drawing	0.5-5F-SMT123050-60XX50-HF	0.5-5C-THR123038-60XX50-HF 2D drawing
0.5-5A-SMT123045-60XX50-HF 2D drawing 0.5-5A-THR123041-60XX50-HF 2D drawing	0.5-5A-SMT0.5-5D-SMT 0.5-5A-THR0.5-5D-THR	0.5-5A-SMT0.5-5E-SMT 0.5-5A-THR0.5-5E-THR	-	0.5-5A-SMT0.5-5F-SMT	-
0.5-5G-THR123037-60XX50 2D drawing	-	-	0.5-5G-THR0.5-5B-THR		0.5-5G-THR0.5-5C-THR
0.5-5H-THR123039-60XX50 2D drawing	-	-	0.5-5H-THR0.5-5B-THR		0.5-5H-THR0.5-5C-THR
