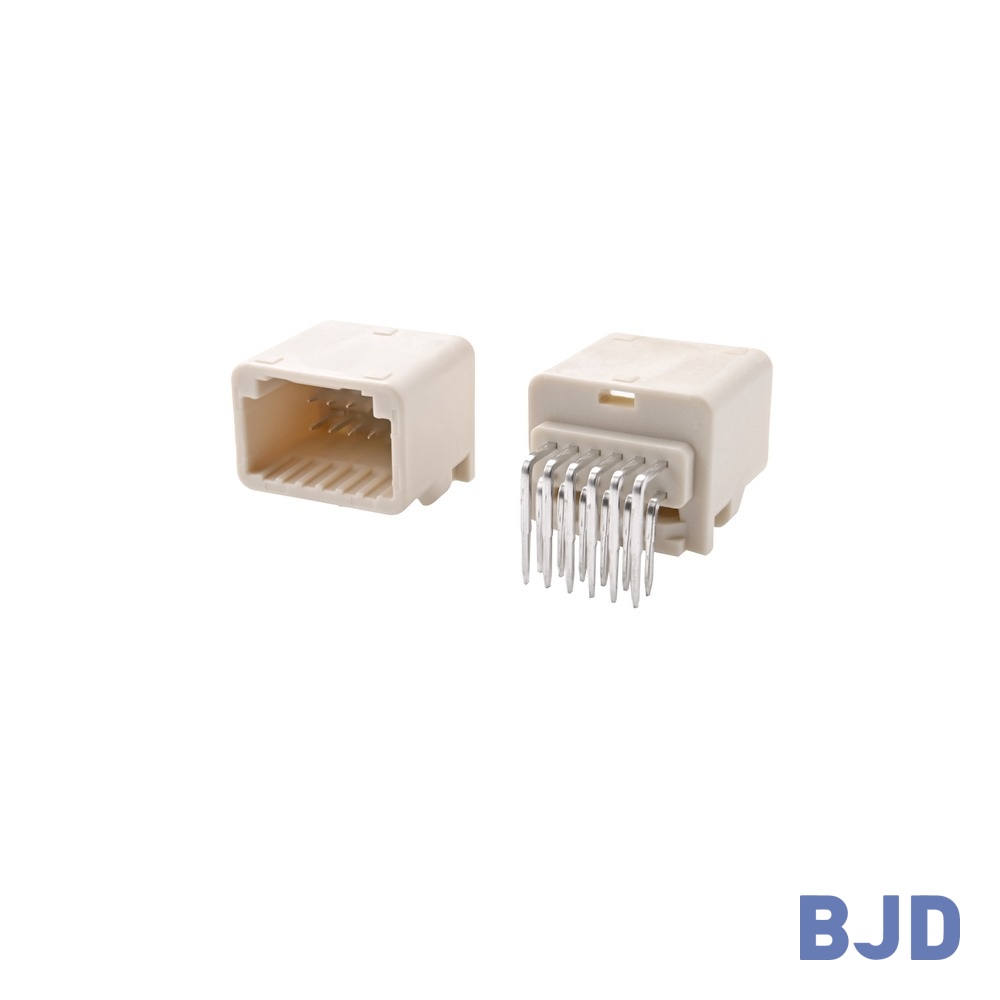

140009-40XX2X
2.2 mm pitch, 4- to 32-position P2.2-3 Series Type A/B/C board connector.
Related parameters
-
Series
P2.2-3 Series
-
Material
PA6T; Type A also available in PA9T+GF30
-
Rated Current
3 A max/pin
-
Withstand Voltage
AC 500 V
-
Operating Temperature Range
−40°C to 105°C
-
Contact Resistance
40 mΩ max (initial); 60 mΩ max (after test)
-
Soldering Process
PIP / DIP
-
Pin Count
4 / 8 / 12 / 16 / 20 / 24 / 32
-
Pitch
2.2 mm
