B3501 Series

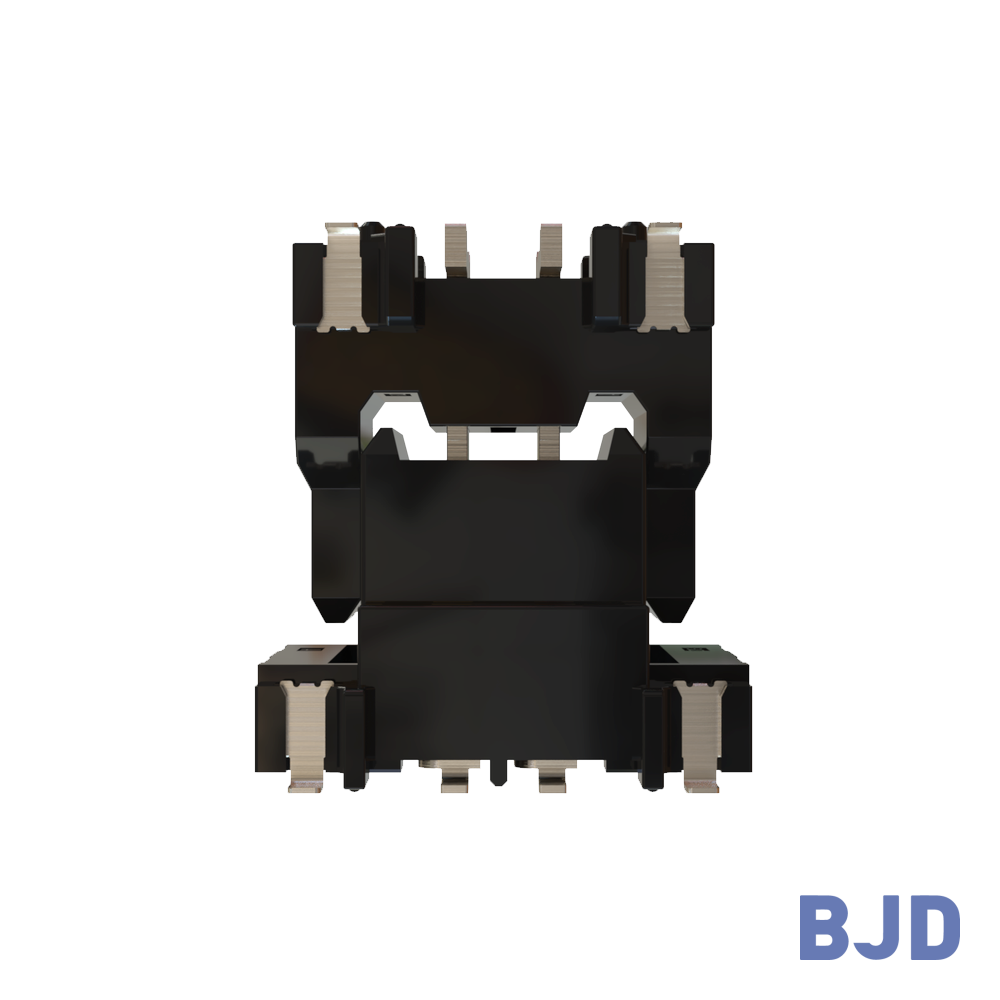

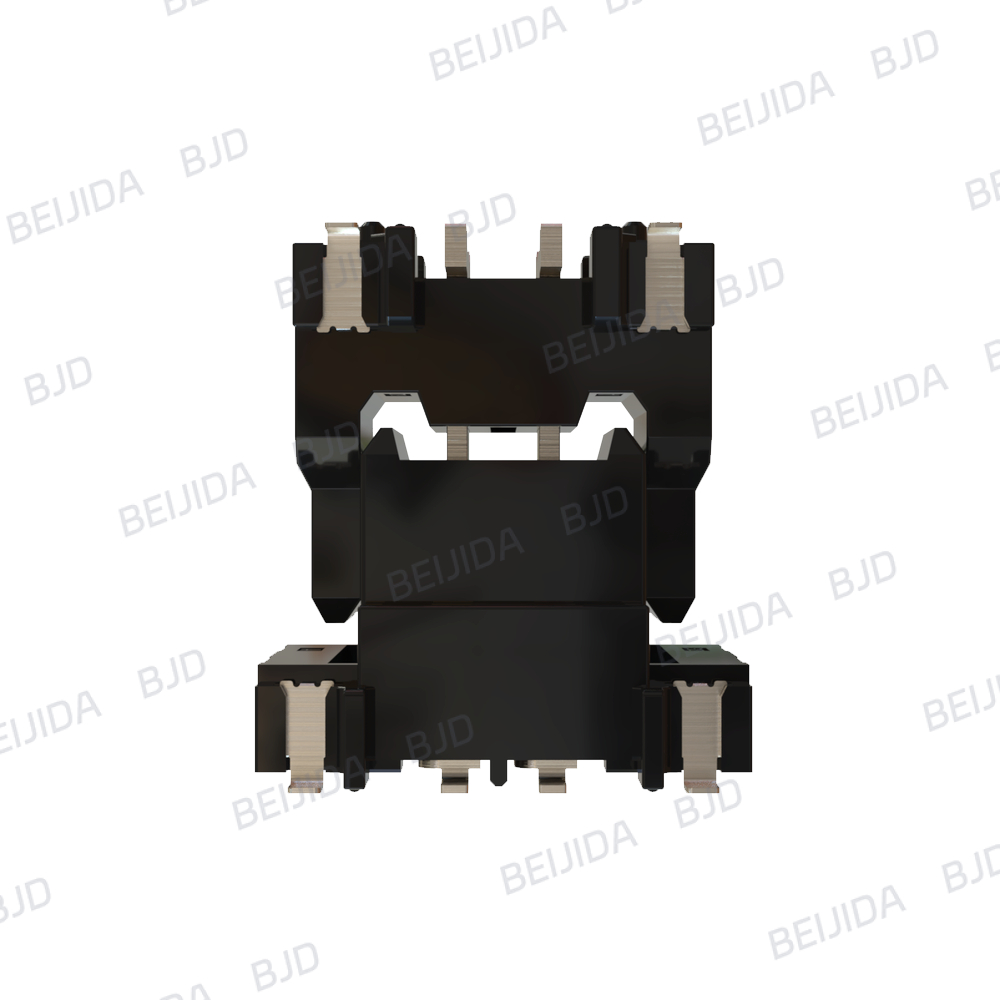

The B3501 Series is a 3.5 mm-pitch, 2-position, 25 mm mated-height, 30 A floating board-to-board connector system comprising a plug and receptacle.
Related Parameters
-
Connector Type
Plug + receptacle
-
Mating Part Number
-
Material
-
Pin Count
2
-
Pitch
3.5 mm
-
Mated Height
25 mm
-
Floating Range
X/Y/Z: ±1.0 mm
-
Connection Orientation
Vertical
-
Soldering Process
SMT
-
Rated Current
30 A
-
Rated Voltage
400 V AC/DC
-
Withstand Voltage
1000 V AC/min
-
Operating Temperature Range
−40°C to +125°C
-
Mating Cycles
-
RoHS 2
-
Halogen-Free
-
Compatible Replacement
-
Note
Mating Selection & Drawings
|
Plug →
Receptacle ↓
|
123095-60XX50-HF |
|---|---|
| 123096-60XX50-HF | 25 mm |
