SMB 141131X Series 1-pin straight waterproof female connector for RG174 cable.
Explore Now
Parameter Details
Series
SMB 141131X Series
Part Type
Straight waterproof female connector for RG174 cable
Pin Count
1
Material
High-temperature thermoplastic, brass, zinc alloy
Applicable Cable
RG174
Rated Voltage
60 V AC/DC max
Rated Current
1 A AC/DC
Withstand Voltage
500 V AC/min
Insulation Resistance
≥1000 MΩ
Contact Resistance
Center contact / outer conductor: 5 mΩ max (before test); 40 mΩ max (after test)
Operating Temperature Range
−40°C to +105°C
Insertion Force
25 N max
Withdrawal Force
25 N max
Durability
100 cycles
IP Rating
IP68 / IP69
Mating Product
141131-210150
Compatible Replacement
Molex 73404-6470
-
Series
SMB 141131X Series
Component Type

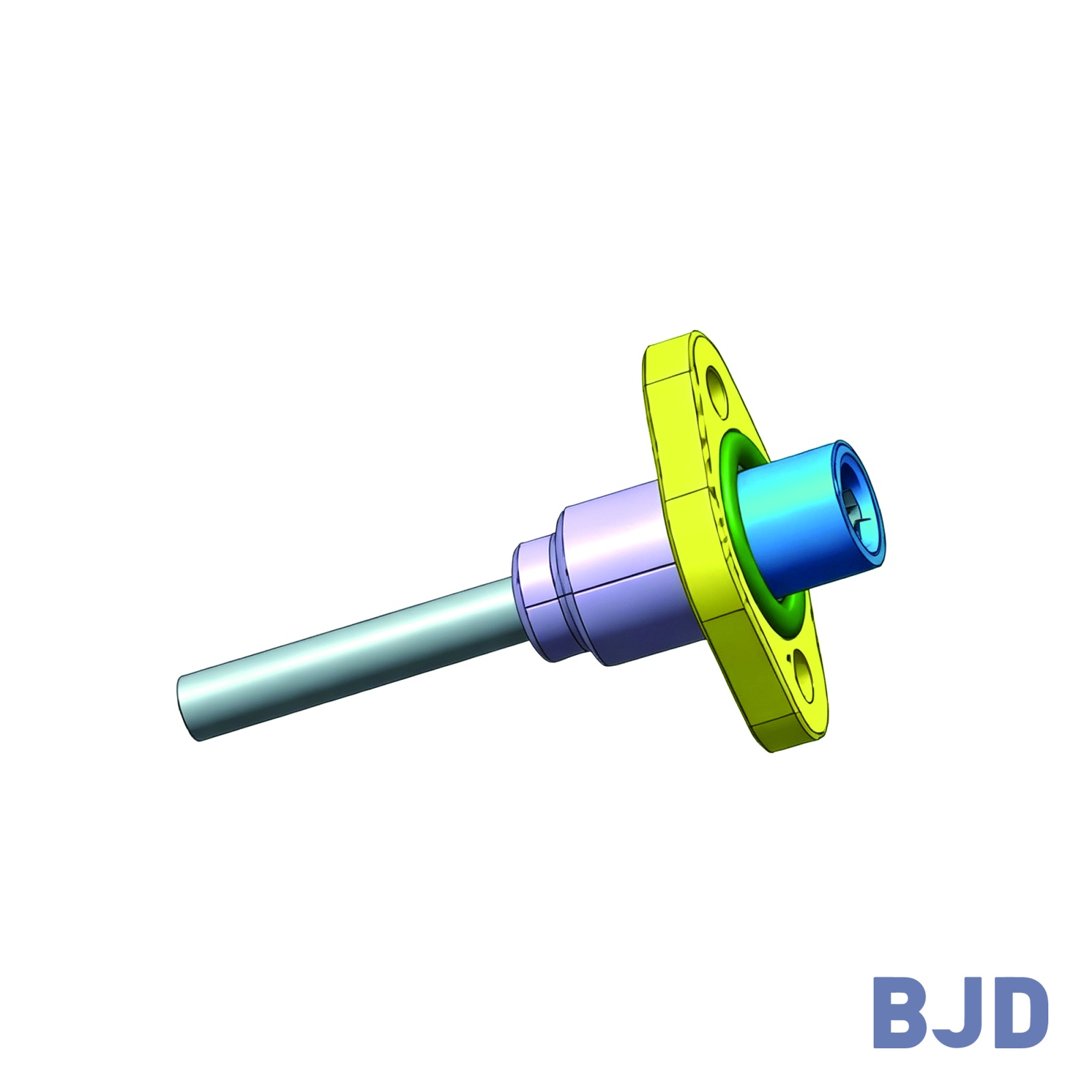

FAKRA sealed adaptor with countersunk mounting holes
Mounting Method
Dual-M2 bolt flange mounting
Material
Insulator: thermoplastic; terminal: copper alloy; body/shell: zinc alloy; O-ring: silicone rubber
Rated Voltage
60 V AC/DC max
Rated Current
1 A AC/DC max
Withstand Voltage
500 V AC/min
Insulation Resistance
≥1000 MΩ
Center Contact Resistance
5 mΩ max (initial); 40 mΩ max (after environmental testing)
Outer Contact Resistance
5 mΩ max (initial); 40 mΩ max (after environmental testing)
Operating Temperature Range
−40°C to +105°C
Mating Force
25 N max
Unmating Force
25 N max
Female Locking Force
80 N min
Durability
100 cycles
Ingress Protection
IP67
Mating Products
141131-210150
-
SMT mounting with blind board-to-board mating and ±0.3 to ±0.5 mm XY assembly-offset compensation.
Explore Now
Parameter Details
Series
SMB 141131X Series
Component Type
Floating FAKRA/SMB male PCB connector
Mounting Method
SMT
Material
Cap/insulator: high-temperature thermoplastic; terminal: brass; body: zinc alloy
Rated Voltage
60 V AC/DC max
Rated Current
1 A AC/DC max
Withstand Voltage
500 V AC/min
Insulation Resistance
≥1000 MΩ
Center Contact Resistance
5 mΩ max (initial); 40 mΩ max (after environmental testing)
Outer Contact Resistance
5 mΩ max (initial); 40 mΩ max (after environmental testing)
Operating Temperature Range
−40°C to +105°C
Mating Force
25 N max
Unmating Force
25 N max
Floating Compensation
±0.3 to ±0.5 mm in the XY directions
Mating Products
141131-420190; 160021-3XXX01
Compatible Replacement
ECT 818010765; Molex 73404-646
