RF Connector
RF and high-speed connectors support FAKRA, Mini-FAKRA, HSD, SMB, USB 3.2, and in-vehicle Ethernet applications.
65 filtering results in total
FILTER
-
Product Series
241101 Automotive Shunt Spring Contact Series
HSO-3-1P FAKRA Straight & Floating SMB Series
HS0-2-1P FAKRA Series
HS2.0-2-2P MINI FAKRA Series
HS2.0-1-2P MINI FAKRA Series
HS0-1-1P FAKRA Series
HS4.0-2-4P MINI FAKRA Series
MINI-FAKRA Series
HSD Series
FAKRA Series
SMB 141131X Series Connectors
14109X High-frequency Series
-
CODE Type
CODE-A Black
CODE-B White
CODE-C Blue
KEY A
CODE-D Plum Red
CODE-H Violet
CODE-K Curry
CODE-Z Sky Blue
KEY B
KEY C
CODE-E Green
CODE-G Grey
CODE-M Coral Pink
-
Connector Orientation
Right Angle
Straight
-
Connector Configuration
Mid-Mount
On-Board
-
Soldering Process
PIP
PIP, SMT
SMT
Apply
-

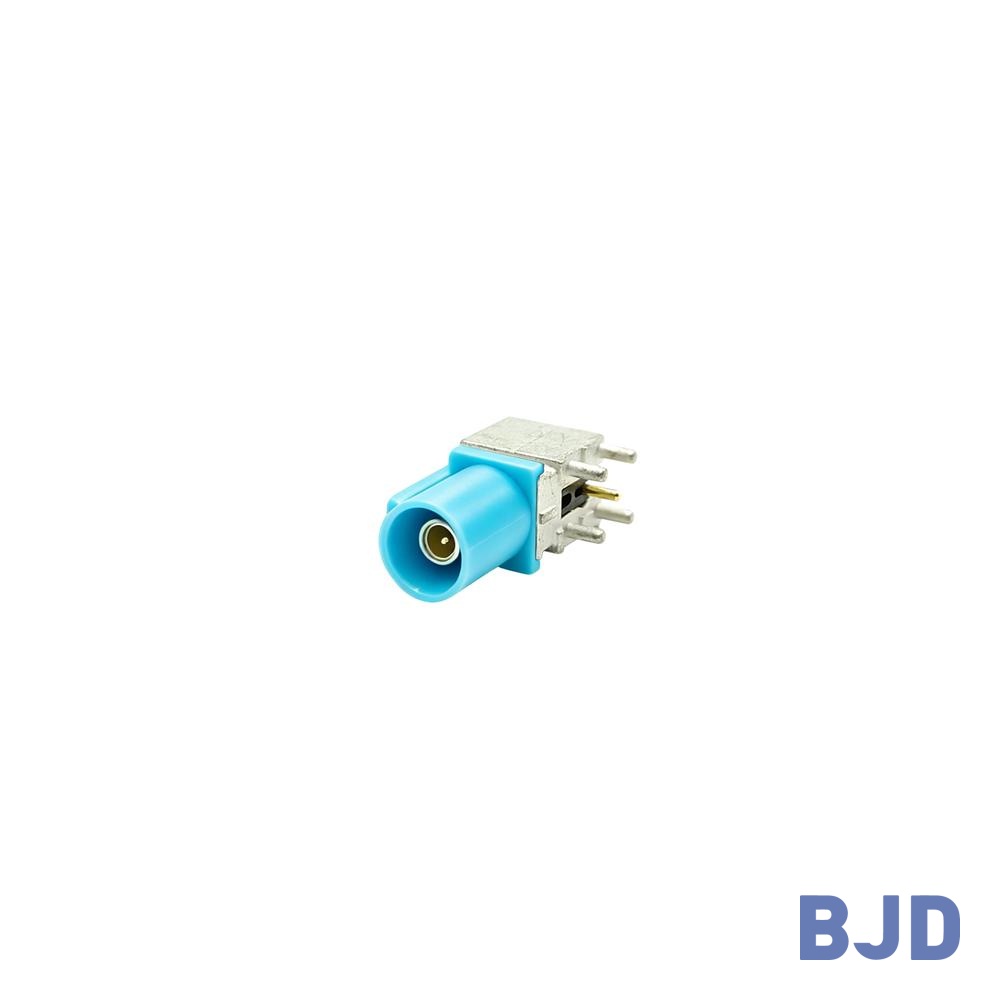

FAKRA Series 90° on-board PCB connector, CODE-Z, Water Blue, for PIP soldering.
Explore Now
Parameter Details
Series
FAKRA Series 90° On-Board Type
Material
HTN, copper alloy, zinc alloy, PA46
Housing Color
Water Blue
Characteristic Impedance
50 Ω
Frequency Range
DC～6 GHz
Contact Resistance
Center contact: 15 mΩ max; outer conductor: 5 mΩ max
Rated Current
1 A AC/DC max
Withstand Voltage
800 V AC/min
Operating Temperature Range
−40°C～+105°C
Soldering Process
PIP
Compatible Replacement
Rosenberger 59S22B-40MT5-X; Molex 73404-08XX; TE/Tyco 2291392-X; Electric Connector 8180102XX
-

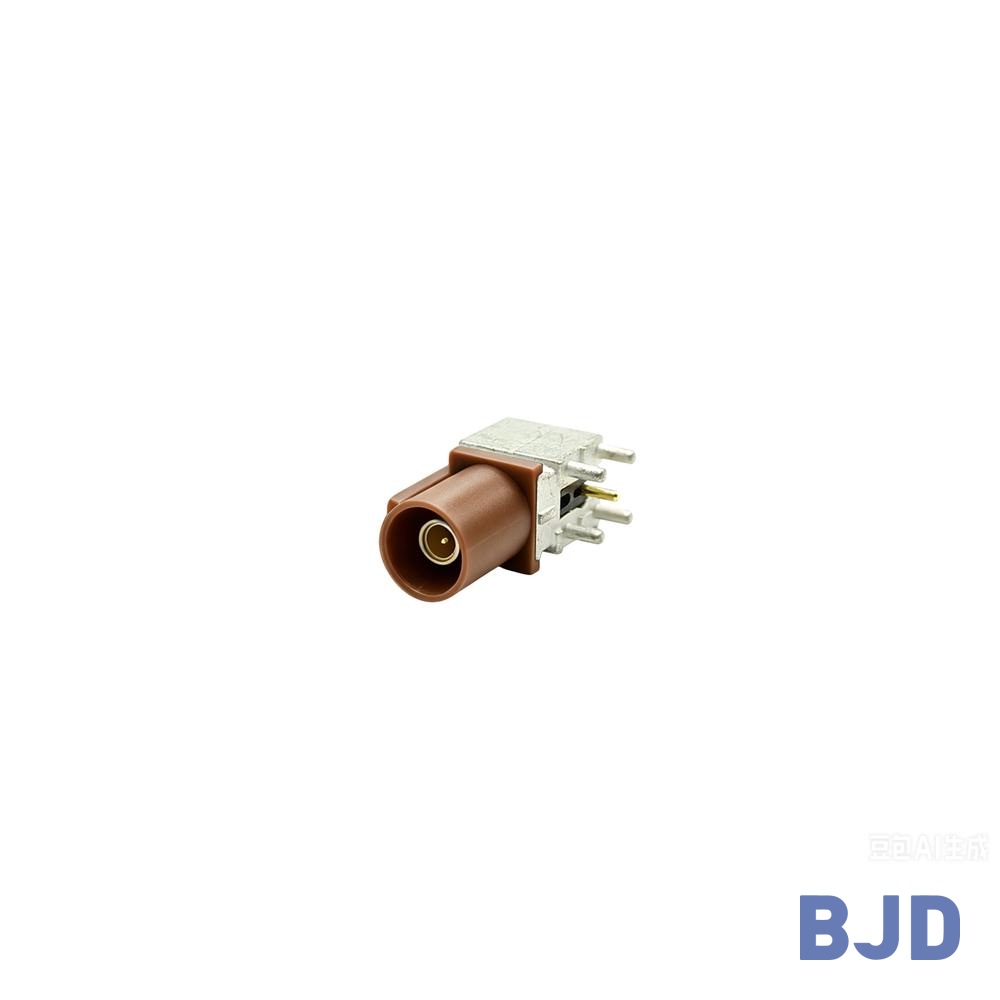

FAKRA Series 90° on-board PCB connector, CODE-F, Brown, for PIP soldering.
Explore Now
Parameter Details
Series
FAKRA Series 90° On-Board Type
Material
HTN, copper alloy, zinc alloy, PA46
Housing Color
Brown
Characteristic Impedance
50 Ω
Frequency Range
DC～6 GHz
Contact Resistance
Center contact: 15 mΩ max; outer conductor: 5 mΩ max
Rated Current
1 A AC/DC max
Withstand Voltage
800 V AC/min
Operating Temperature Range
−40°C～+105°C
Soldering Process
PIP
Compatible Replacement
Rosenberger 59S22B-40MT5-X; Molex 73404-08XX; TE/Tyco 2291392-X; Electric Connector 8180102XX
-
FAKRA Series 90° board-recessed PCB connector, CODE-Z, Water Blue, for PIP soldering.
Explore Now
Parameter Details
Series
FAKRA Series 90° Board-Recessed Type
Material
HTN UL94V-0, C2680-H, zinc alloy, PA46 UL94V-0
Housing Color
Water Blue
Characteristic Impedance
50 Ω
Frequency Range
DC～6 GHz
Contact Resistance
Center contact: 15 mΩ max; outer conductor: 5 mΩ max
Rated Current
1 A AC/DC max
Withstand Voltage
800 V AC/min
Operating Temperature Range
−40°C～+105°C
Soldering Process
PIP
Compatible Replacement
Rosenberger 59S2AQ-40MT5-X; Amphenol FK1251XW-022-TT30G-50
-
FAKRA Series 90° board-recessed PCB connector, CODE-F, Brown, for PIP soldering.
Explore Now
Parameter Details
Series
FAKRA Series 90° Board-Recessed Type
Material
HTN UL94V-0, C2680-H, zinc alloy, PA46 UL94V-0
Housing Color
Brown
Characteristic Impedance
50 Ω
Frequency Range
DC～6 GHz
Contact Resistance
Center contact: 15 mΩ max; outer conductor: 5 mΩ max
Rated Current
1 A AC/DC max
Withstand Voltage
800 V AC/min
Operating Temperature Range
−40°C～+105°C
Soldering Process
PIP
Compatible Replacement
Rosenberger 59S2AQ-40MT5-X; Amphenol FK1251XW-022-TT30G-50
-
Series

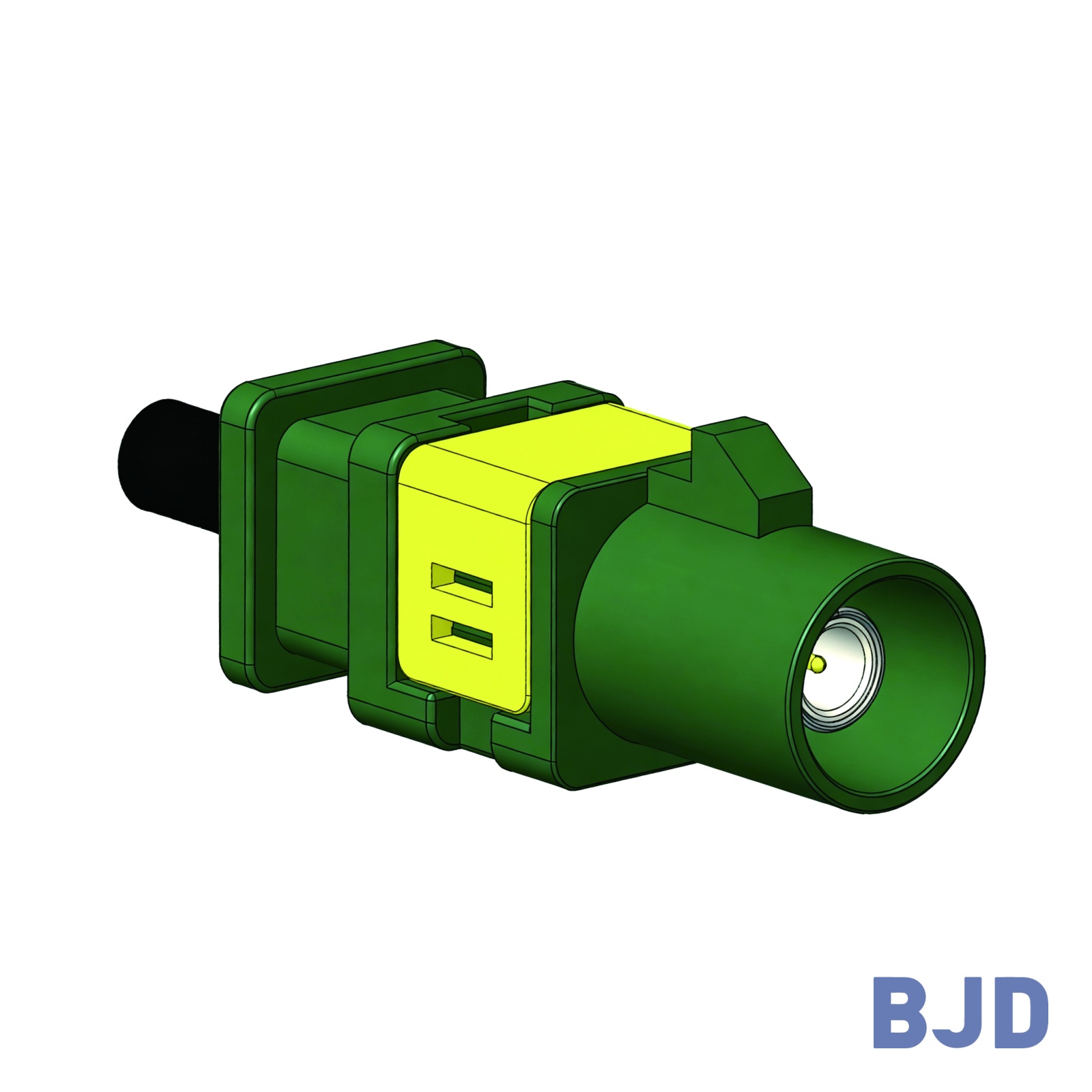

HS0-2-1P FAKRA Series
Component Type
1-pin straight male wire-harness connector
Interface Standard
Pin Count
1
Material
C5191-H, LCP/PBT GF30
Rated Current
1 A AC/DC max
Withstand Voltage
500 V AC/min
Contact Resistance
Center contact: 24 mΩ max; outer contact: 5 mΩ max
Operating Temperature Range
−40°C to +105°C
Mating Product / Part Number
160068-3001XX
Compatible Replacement
0
