RF Connector
RF and high-speed connectors support FAKRA, Mini-FAKRA, HSD, SMB, USB 3.2, and in-vehicle Ethernet applications.
65 filtering results in total
FILTER
-
Product Series
241101 Automotive Shunt Spring Contact Series
HSO-3-1P FAKRA Straight & Floating SMB Series
HS0-2-1P FAKRA Series
HS2.0-2-2P MINI FAKRA Series
HS2.0-1-2P MINI FAKRA Series
HS0-1-1P FAKRA Series
HS4.0-2-4P MINI FAKRA Series
MINI-FAKRA Series
HSD Series
FAKRA Series
SMB 141131X Series Connectors
14109X High-frequency Series
-
CODE Type
CODE-A Black
CODE-B White
CODE-C Blue
KEY A
CODE-D Plum Red
CODE-H Violet
CODE-K Curry
CODE-Z Sky Blue
KEY B
KEY C
CODE-E Green
CODE-G Grey
CODE-M Coral Pink
-
Connector Orientation
Right Angle
Straight
-
Connector Configuration
Mid-Mount
On-Board
-
Soldering Process
PIP
PIP, SMT
SMT
Apply
-

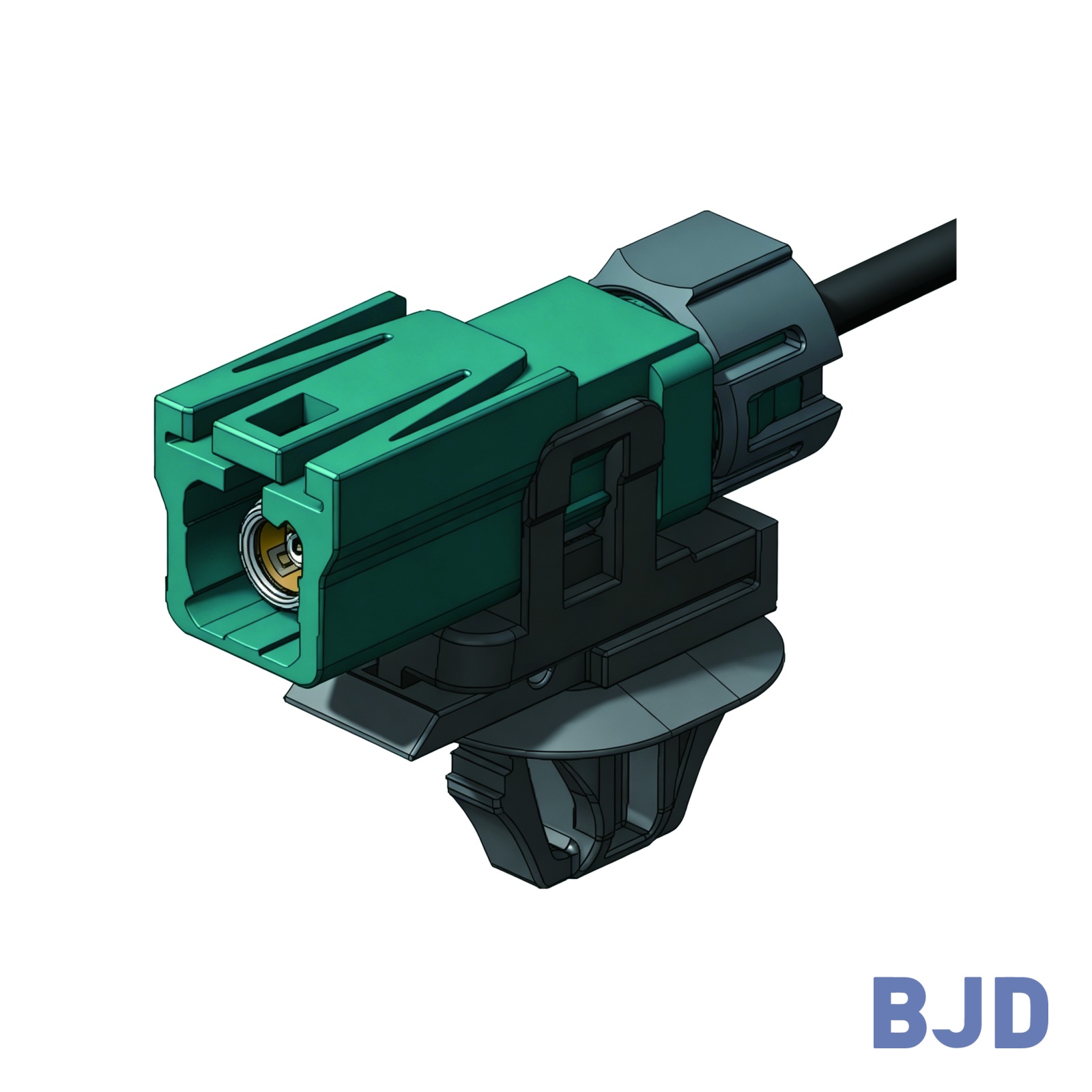

HS0-1-1P FAKRA Series 1-pin waterproof female wire harness for RG174 cable, available with or without a latch.
Explore Now
Parameter Details
Series
HS0-1-1P FAKRA Series
Part Type
Waterproof female wire harness for RG174 cable
Pin Count
1
Material
PBT, SPS/PA66, silicone, PTFE/PP, phosphor bronze, brass
Applicable Cable
RG174
Latch Configuration
Available with / without latch
Contact Resistance
5 mΩ max (initial); 40 mΩ max (after test)
Rated Current
1 A AC/DC max
Withstand Voltage
500 V AC/min
Operating Temperature Range
−40°C to +105°C
Compatible Replacement
Molex 73403-0370 (without latch); Molex 73403-0410 (with latch)
-
HS4.0-2-4P MINI FAKRA Series 4-pin wire-side connector with A/Z keying and Black/Water Blue color configurations.
Explore Now
Parameter Details
Series
HS4.0-2-4P MINI FAKRA Series
Component Type
4-pin wire-side connector
Interface Standard
Pin Count
4
Keying / Code
A / Z; Black (keying A) / Water Blue (keying Z)
Connector Orientation
Applicable Cable
Termination Process
Material
Keying A: PA, PBT, copper alloy, stainless steel; keying Z: PPO N300X, C5191R-EH, YCUT-FX-EH, SUS304
Rated Voltage
Rated Current
1 A AC/DC max
Withstand Voltage
500 V DC/min
Insulation Resistance
Contact Resistance
Center contact: 24 mΩ max; outer contact: 10 mΩ max
Characteristic Impedance
Operating Temperature Range
−40°C to +105°C
Vibration Rating
Mating Product / Part Number
140061-20049X
Compatible Replacement
TE 2298496-1; 2298494-1; 2298509-1; 2298721-1
-
Series
Component Type
Interface Standard
Pin Count
4
Keying / Code
CODE-Z Sky Blue
Connector Orientation
Right Angle
Applicable Cable
Termination Process
PIP, SMT
Material
Rated Voltage
60 V
Rated Current
1 A
Withstand Voltage
Insulation Resistance
Contact Resistance
Characteristic Impedance
Operating Temperature Range
-40°C to 105°C
Vibration Rating
USCAR V1
Mating Product / Part Number
Compatible Replacement
Rosenberger: AMZ005-000-A AMZ005-00E
-
Series
Component Type
Interface Standard
Pin Count
4
Keying / Code
CODE-F Brown
Connector Orientation
Right Angle
Applicable Cable
Termination Process
PIP, SMT
Material
Rated Voltage
60 V
Rated Current
1 A
Withstand Voltage
Insulation Resistance
Contact Resistance
Characteristic Impedance
Operating Temperature Range
-40°C to 105°C
Vibration Rating
USCAR V1
Mating Product / Part Number
Compatible Replacement
Rosenberger: AMZ005-000-A AMZ005-00E
-
Series
Component Type
Interface Standard
Pin Count
4
Keying / Code
CODE-E Green
Connector Orientation
Right Angle
Applicable Cable
Termination Process
PIP, SMT
Material
Rated Voltage
60 V
Rated Current
1 A
Withstand Voltage
Insulation Resistance
Contact Resistance
Characteristic Impedance
Operating Temperature Range
-40°C to 105°C
Vibration Rating
USCAR V1
Mating Product / Part Number
Compatible Replacement
Rosenberger: AMZ005-000-A AMZ005-00E
