X4117X Series

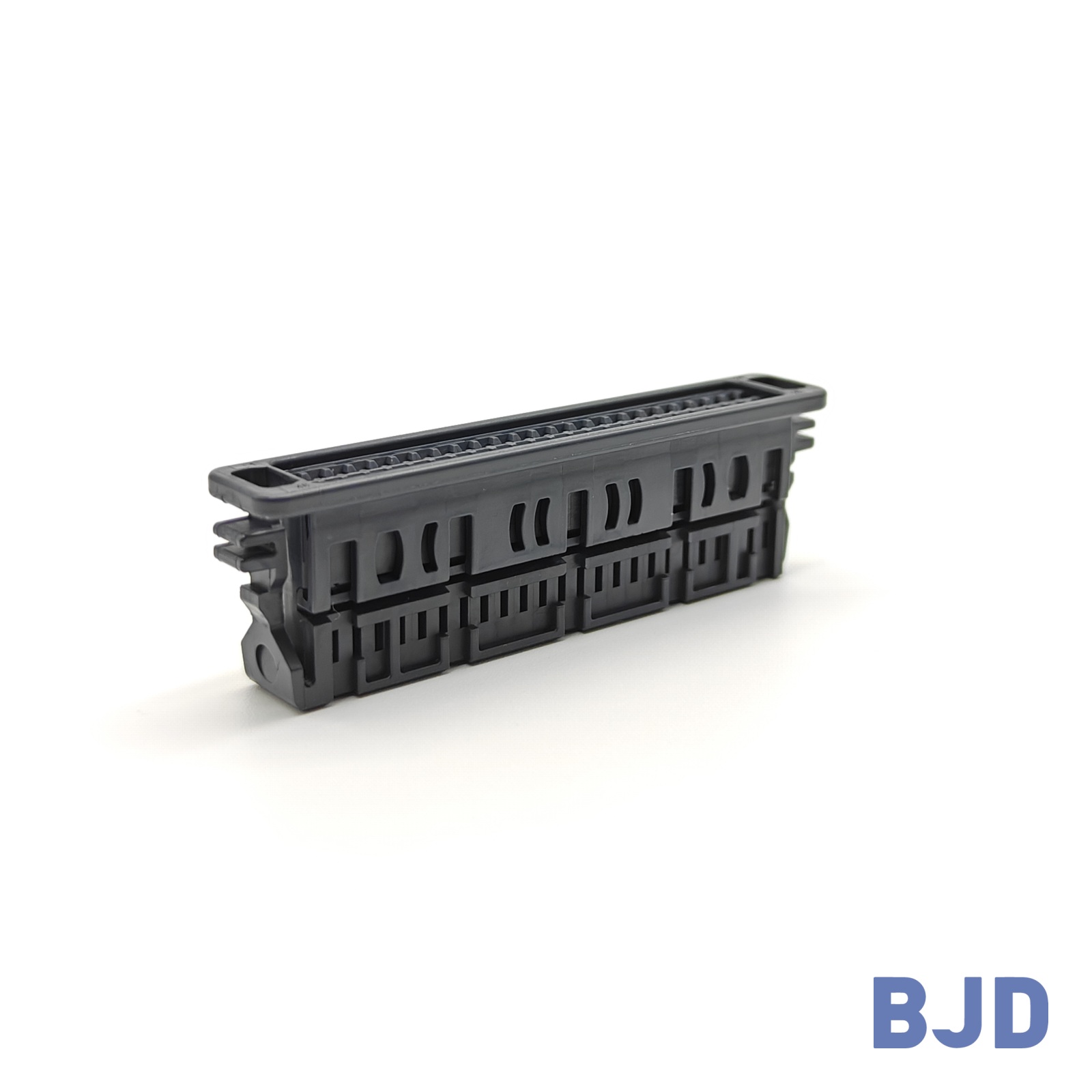

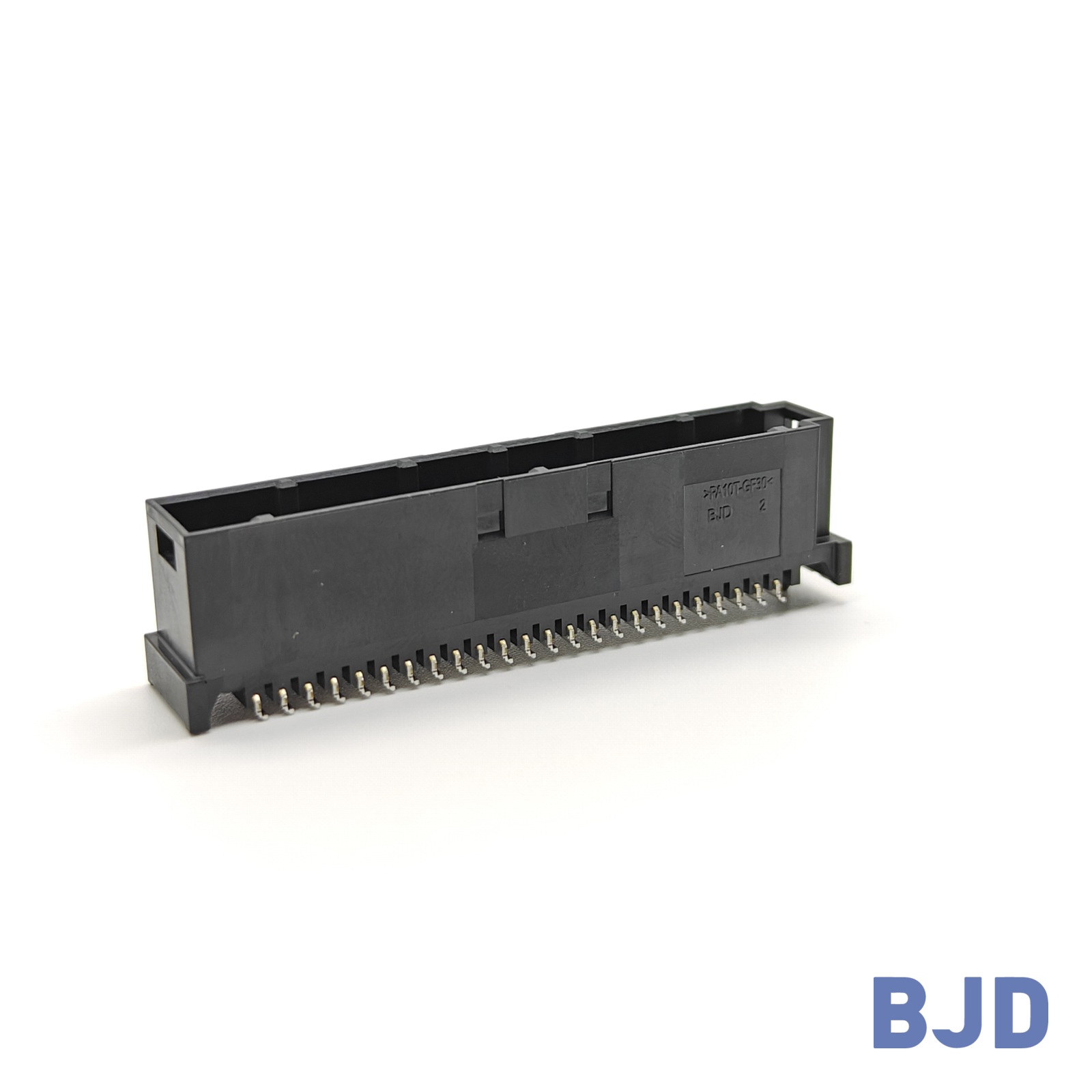

The X4117X Series is a 2.0 mm-pitch, dual-row wire-to-board connection system for automotive electronics, comprising board headers, cable-side housings and matching terminals. Vertical and right-angle SMT headers offer connection options for different PCB layouts. The cable-side design supports direct riveting of FPC/FFC to the terminals for compact connections in automotive lighting and similar applications.
Related Parameters
-
Components
-
Component Type
-
Pin Count
40，48
-
Pitch
2.0mm
-
Number of Rows
Double Row
-
CODE Type
-
With CPA
-
With TPA
-
PCB Mounting Method
Vertical / Right-angle (board side)
-
Soldering Process
SMT
-
Material
-
Rated Current
1A（FPC Cable）
-
Rated Voltage
12V
-
Withstand Voltage
-
Contact Resistance
-
Operating Temperature Range
-40℃ ~ 105℃
-
Vibration Rating
LV214 S2
-
Compatible Replacement
TE NanoMQS; TE:2415829 2415780 2291853 2415823 2382718
-
Note
Automotive Lamps
