P2.0-2 Series | Compact Gangable Hybrid Connector — Signal + Power in One, Flexible Position Counts

As one of the early players in the automotive electronics industry, BJD is committed to providing reliable solutions. Our connector solutions serve automotive electronics, industrial control, LED commercial displays, medical, security, and many other fields. BJD is a provincial "Specialized, Refined, Distinctive and Innovative" enterprise and a National High-Tech Enterprise with a CNAS-accredited laboratory, ensuring product quality!

01 Development Background

As automotive E/E architectures evolve rapidly, multi-function domain controllers (ADAS, body, smart cockpit, infotainment, etc.) are becoming the mainstream solution. Compared with traditional distributed ECUs, domain controllers must integrate far more signal and power circuits into a single connector, placing higher demands on current-carrying capacity, position density, and board footprint.

In response to this trend, BJD has launched a new generation of compact hybrid standard wire-to-board connector platform. Based on a gangable structural design, the platform uses standard single-cavity modules that can be combined in two-, three-, four-, or five-piece gangs to flexibly cover different position counts and current ratings — shortening development cycles and reducing tooling and validation costs.

02 Product Overview

P2.0-2 SERIES offers single-cavity base modules of 12P/23P/28P/29P, combined in two ganging ways: 52P = 23P + 29P and 73P = 35P + 38P, meeting the high-density, multi-circuit hybrid signal and power connection requirements of domain controller applications.

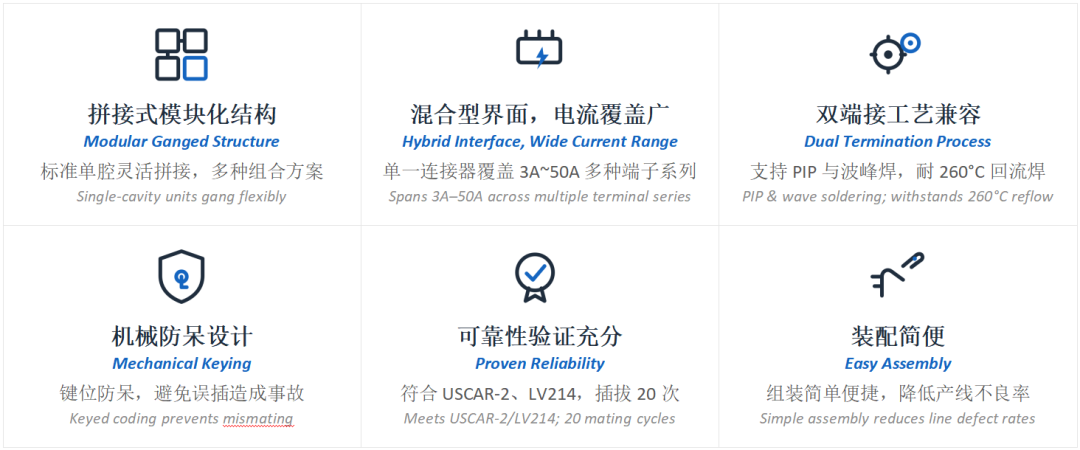

03 Product Key Features

• Modular gangable structure
  Standard single-cavity base modules can be ganged in different ways to expand the position count, combining flexible configuration with the advantages of scaled production.

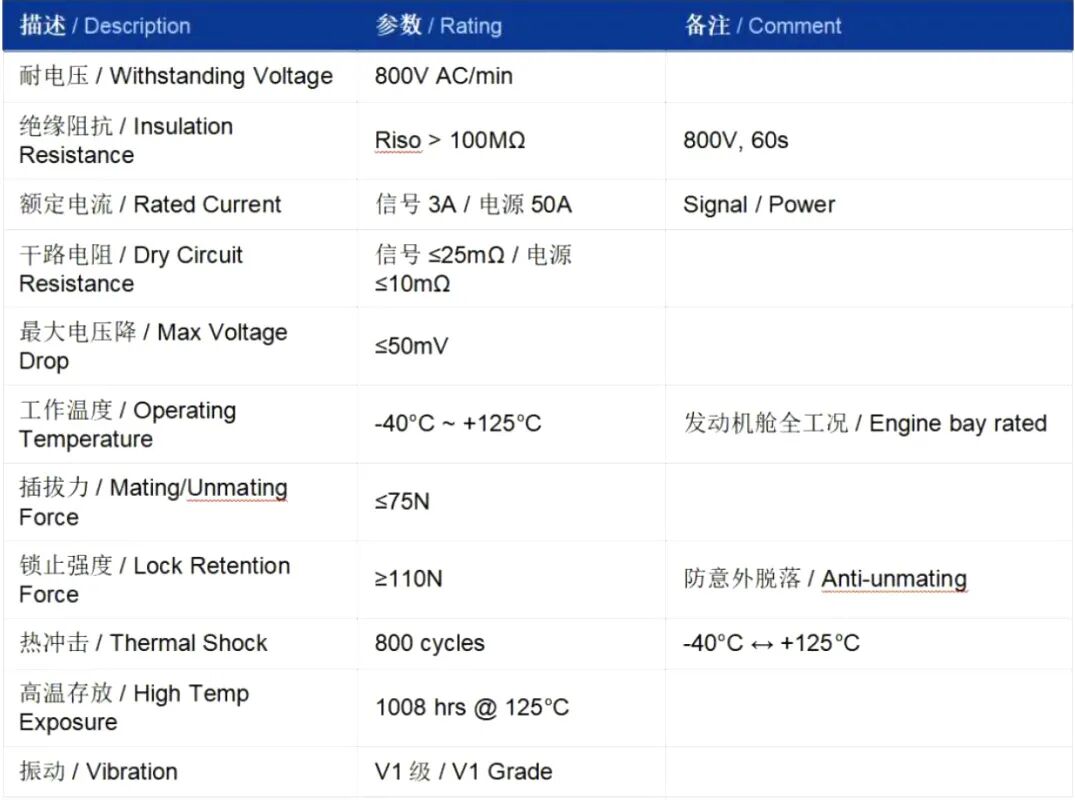

• Hybrid interface with wide current coverage
  A single connector accommodates both 3A signal and 50A power circuits; multiple terminal series meet the mixed needs of domain controllers transmitting low-voltage signals alongside power/high-current circuits.
• Dual termination process compatibility
  Supports both PIP (Pin-in-Paste) and wave soldering processes across multiple specifications, using high-temperature plastic that withstands 260°C peak reflow — excellent process adaptability.
• Mechanical keying
  Keyed coding with multi-color position differentiation prevents assembly or electrical accidents caused by mismating, improving line assembly efficiency and reliability.
• Proven reliability
  Complies with USCAR-2 and LV214 automotive test standards; vibration grade reaches USCAR-2 V1, meeting automotive-grade reliability requirements (aligned with mainstream Tier1/OEM validation processes under the IATF system).
• Easy assembly
  Simple and convenient assembly process helps reduce line labor and defect rates.

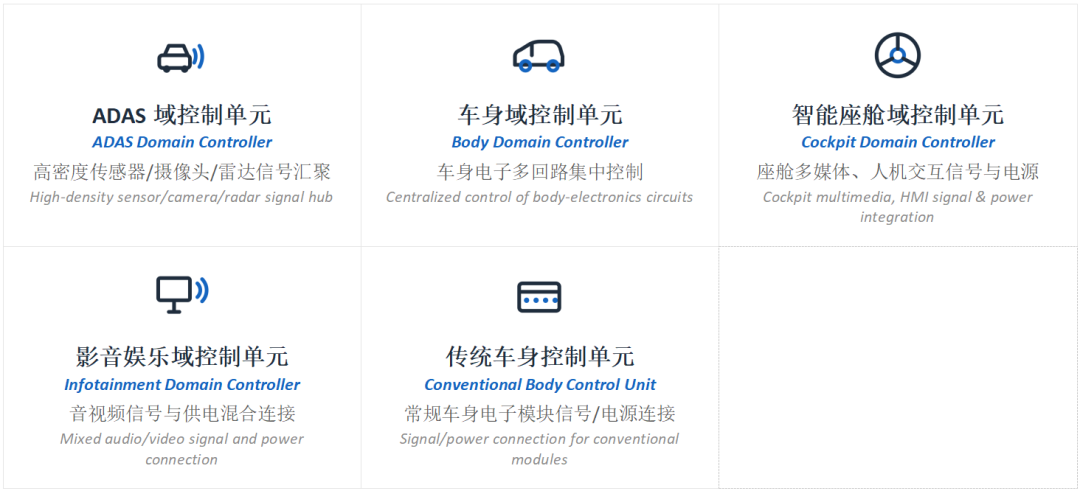

04 Application Areas

• ADAS domain control unit: high-density sensor/camera/radar signal hub scenarios.
• Body domain control unit: centralized control of multiple body-electronics circuits.
• Smart cockpit domain control unit: integration of cockpit multimedia and HMI-related signals and power.
• Infotainment domain control unit: mixed audio/video signal and power connection.
• Conventional body control unit: signal/power connection for conventional body electronics modules.

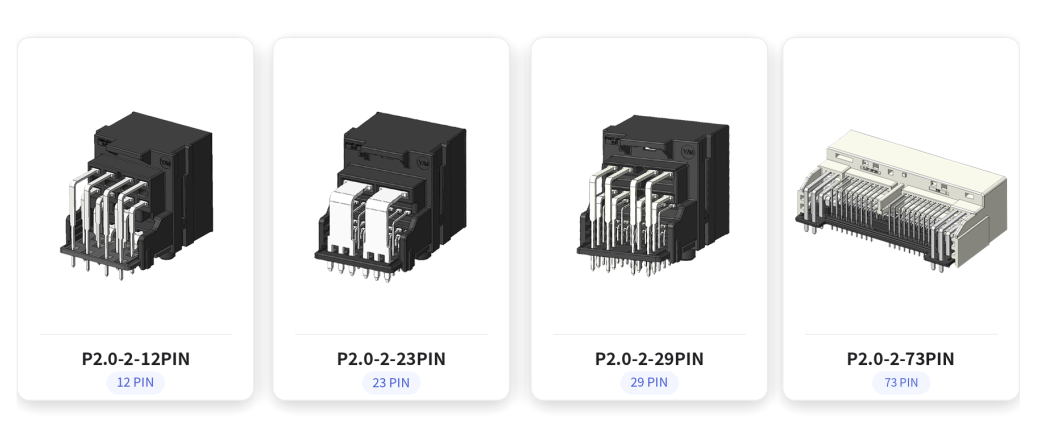

05 Detailed Product Drawings

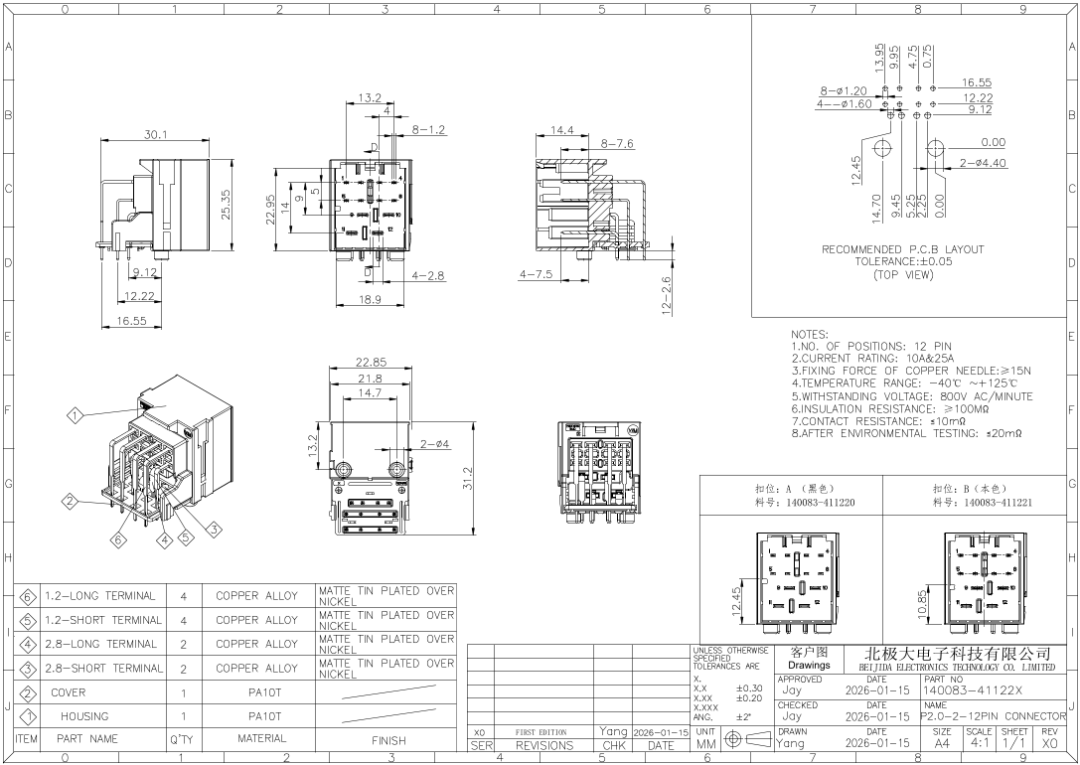

(P2.0-2-12PIN)

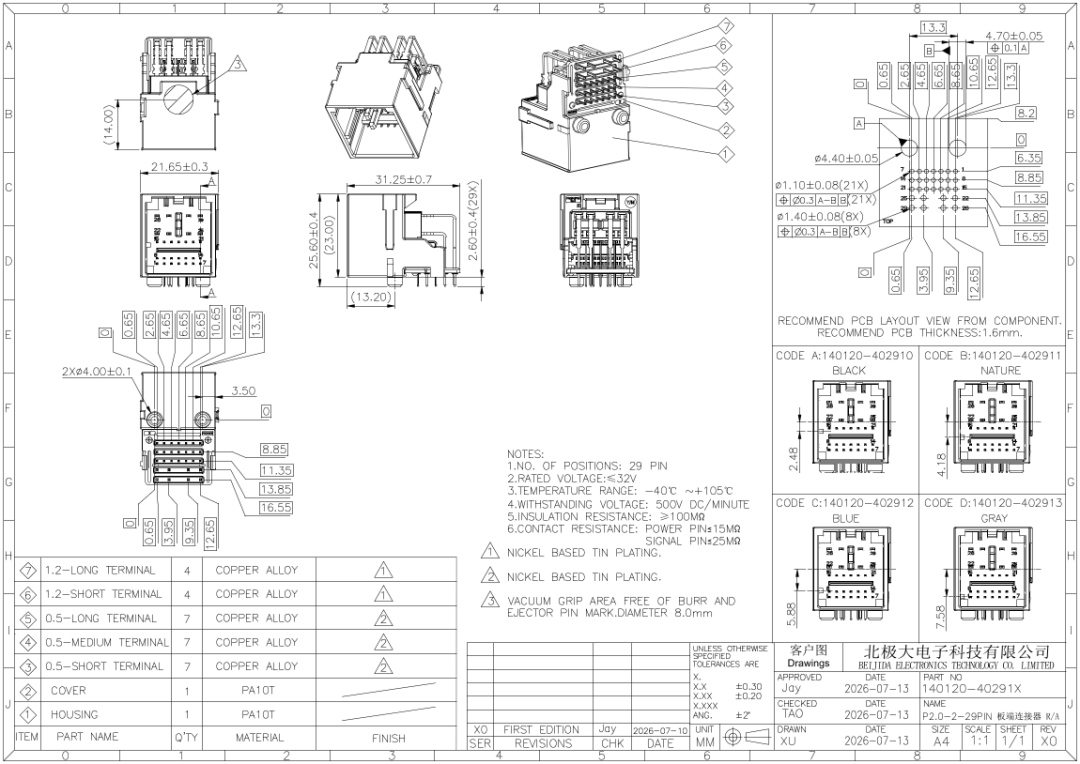

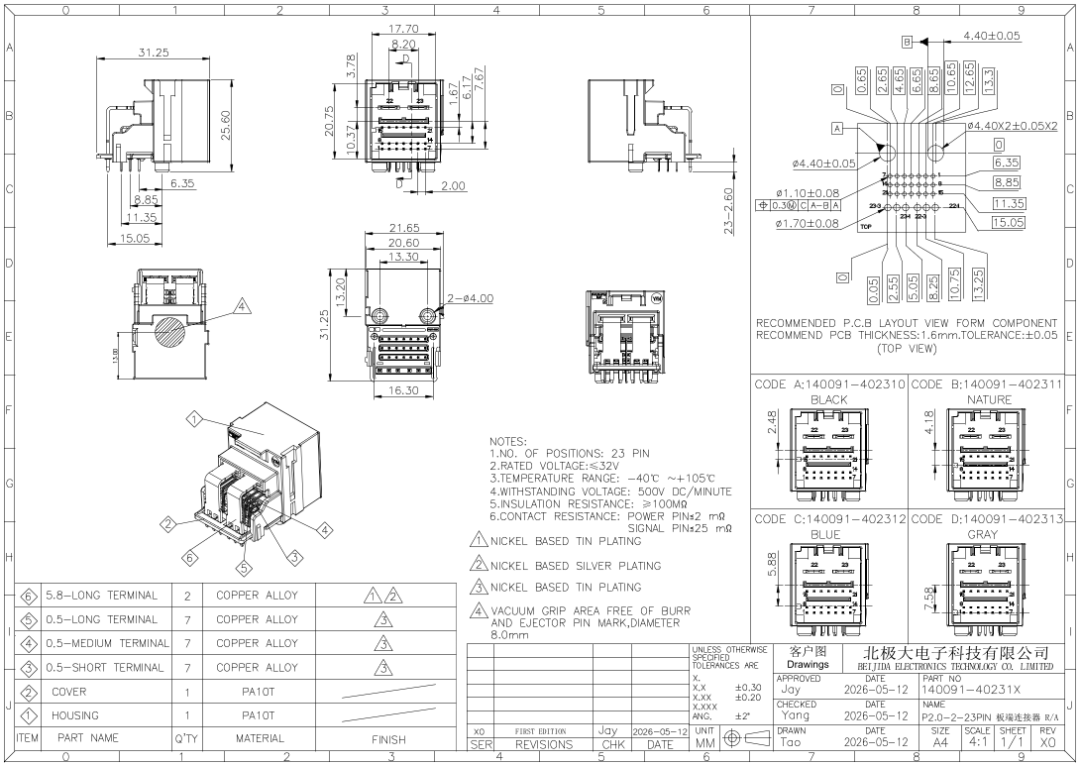

(P2.0-2-23PIN)

(P2.0-2-29PIN)

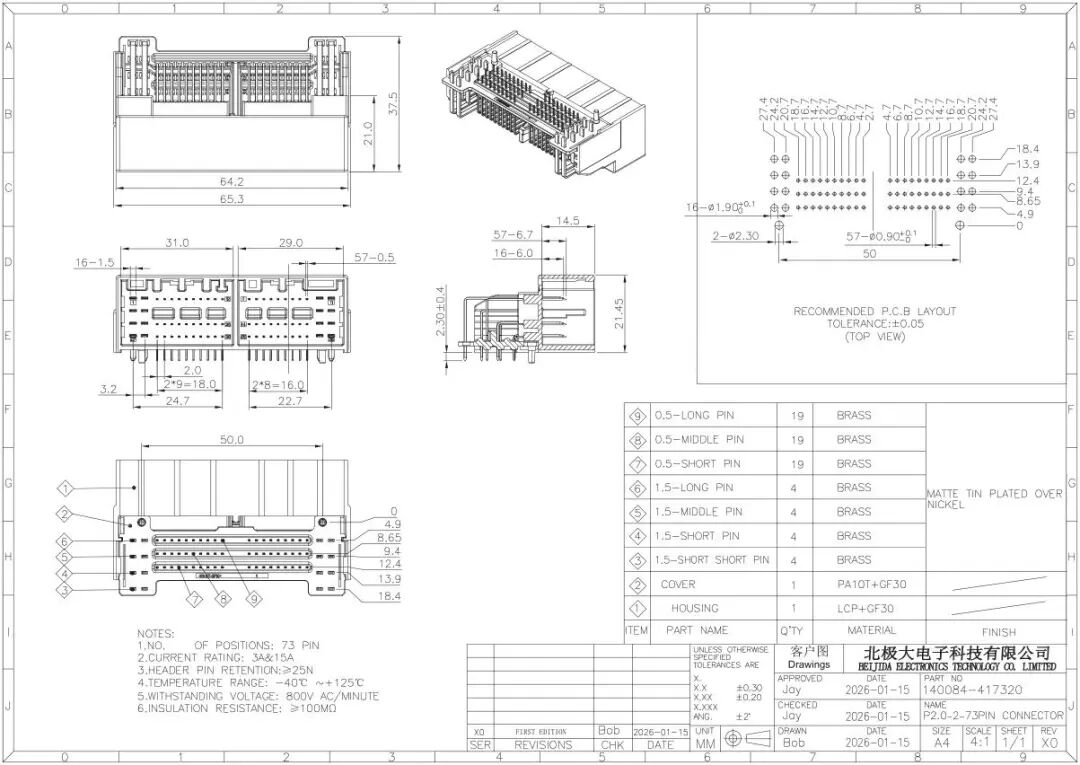

(P2.0-2-73PIN)

06 Product Summary

P2.0-2 SERIES is the representative model of the new-generation compact hybrid wire-to-board connector platform for high-position-count, high-density domain controller applications. Its core idea — "standard single-cavity modules + flexible ganging" — builds connector solutions with different position counts and current ratings from a small set of base tooling, offering clear advantages in development efficiency and cost control.
