01 Development Background
Dual Independent Spring Arms — The Reliable Choice for Harsh Environments
With the rapid development of automotive electronics, industrial control, smart home appliances, and other fields, requirements for internal connectors keep rising. Especially in complex environments involving high vibration, high temperature, and limited space, conventional FPC connectors often struggle to balance stability, durability, and ease of use.
To meet market demand, BJD launched the FPC0519A SERIES. Its dual independent spring-arm contact structure and latch design greatly improve vibration resistance and contact stability; it is fully compatible with mainstream products on the market, making replacement or upgrades easy; and its high-performance copper-alloy signal terminals ensure long-term stable operation in high-temperature environments, verified to the USCAR V2 vibration level.
The BJD FPC0519A Series connector offers four core advantages — high vibration resistance, high-temperature capability, broad compatibility, and easy assembly. It is an ideal choice for automotive electronics, industrial control, smart home, and other fields, providing customers with a more reliable, flexible, and cost-effective connection solution.
02 Product Features

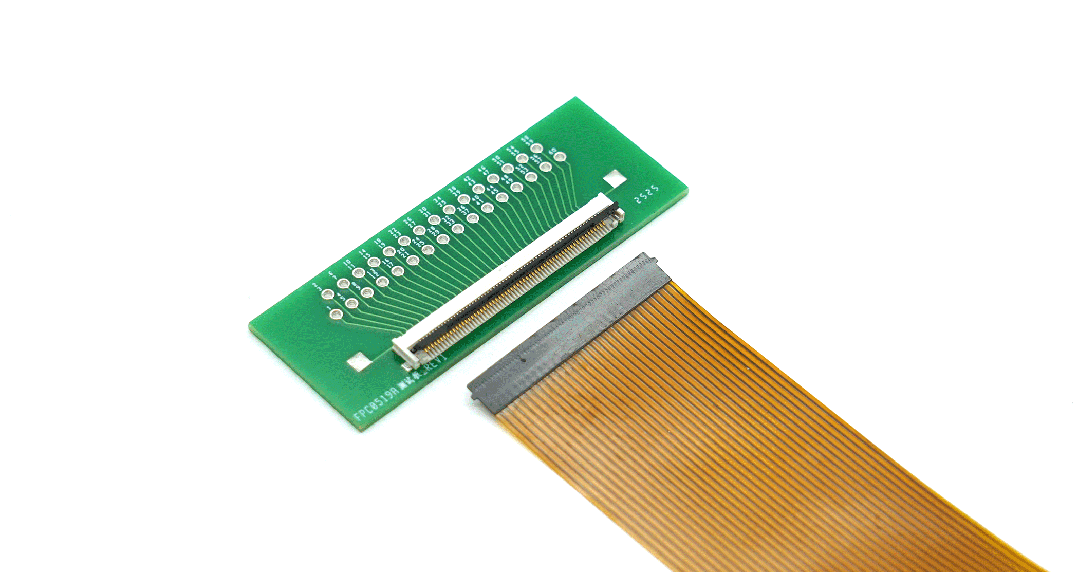

1. FPC0519A SERIES Key Characteristics
With a low profile of H1.9, the product suits a wide range of scenarios and delivers excellent vibration resistance and contact performance. It has passed USCAR V2 vibration-level testing; its signal terminals use high-performance copper alloy, and the operating temperature reaches up to 150°C, meeting stringent environmental requirements.
| Item | Specification | Unit |
|---|---|---|
| Type | Front-flip | NA |
| Pitch | 0.5 | mm |
| Product height | 1.9 | mm |
| Pin count | 4 ~ 60 ↑ | ckt |
| Operating temperature | -40 to +150 (with qualifying FPC cable) | °C |
| Rated current | 0.5 | A |
| Rated voltage | 50 | V |
| Contact resistance | 60 | mΩ |
| Withstand voltage | 125 | V |
| Mating durability | 20 | cycles |
| Vibration level | USCAR V2 | NA |
2. Reliability Requirements in Harsh Environments
In high-vibration, wide-temperature-swing environments such as vehicles and construction machinery, ordinary connectors can easily loosen and cause signal loss. The FPC0519A adopts a dual independent spring-arm contact structure that improves performance at the mechanical level and ensures highly reliable connections.

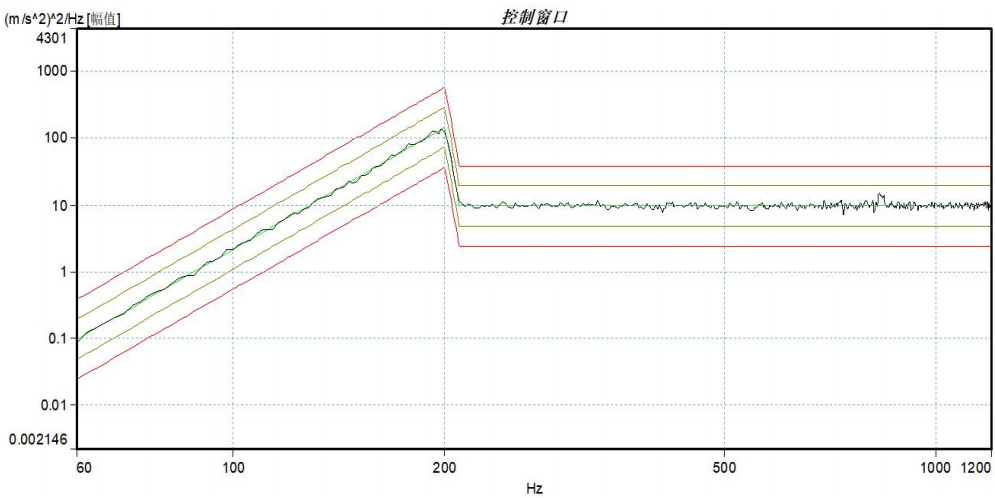

Vibration test curve
3. Versatility Across Diverse Applications
The ear-latch compatible design and generous insertion space, together with a distinct click when the flip cover closes, ensure proper assembly — meeting industrial-grade requirements while also fitting consumer products with frequent mating cycles.

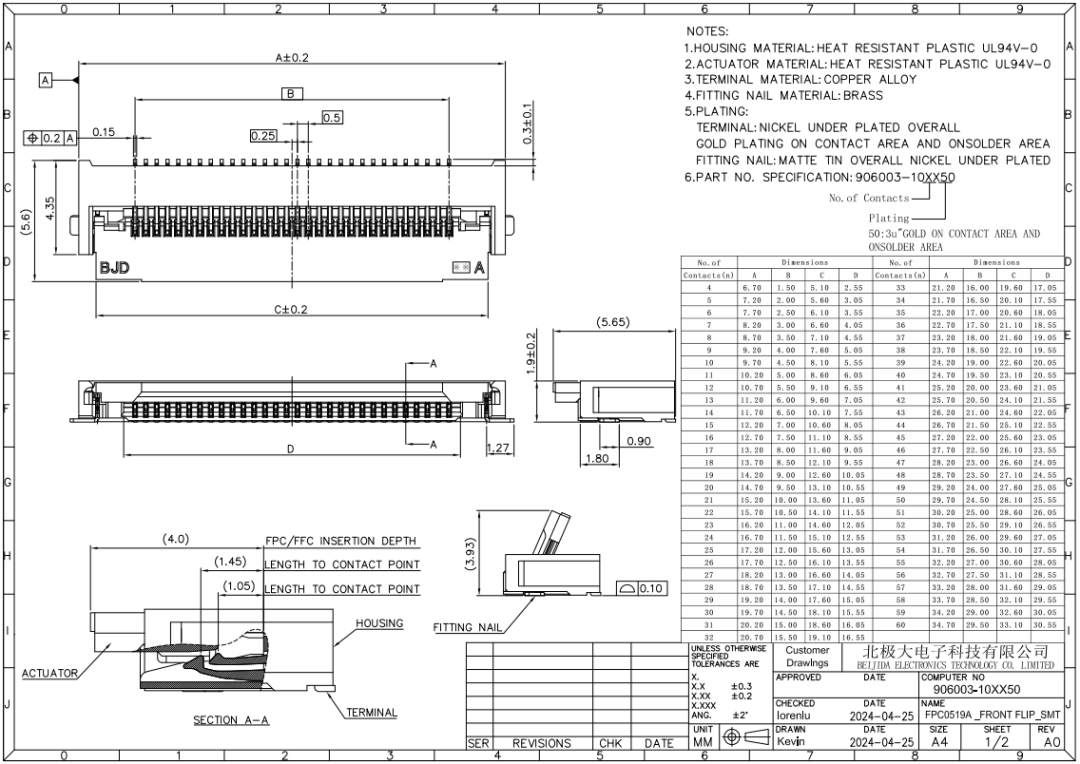

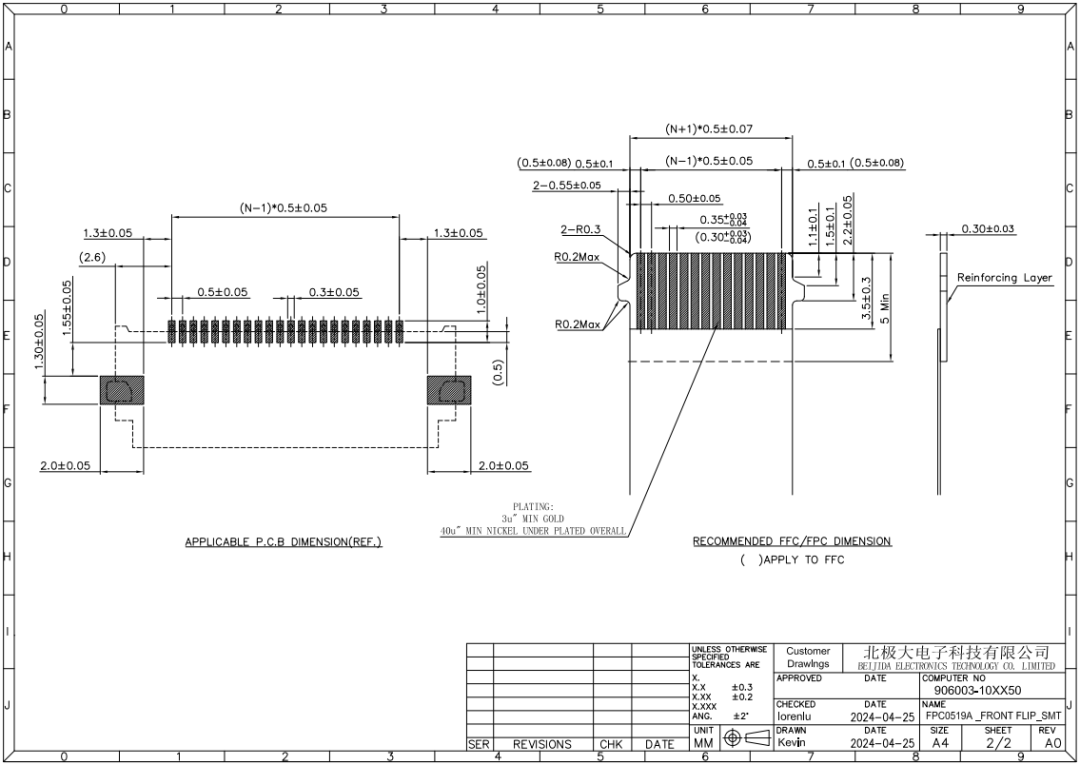

03 Detailed Drawings
04 Application Scenarios
Stable output across multiple scenarios keeps connections intact. For fields requiring high vibration resistance, high reliability, and high-speed signals, the FPC0519A is suited to the following applications:
- Automotive electronics (in-vehicle navigation / instrument clusters)
- In-vehicle entertainment systems (reading lights / rear-view mirrors)
- Home appliances (flat-screen TVs, refrigerators, vacuum cleaners)
- Industrial equipment (drones, robots)
- Consumer electronics (game consoles, VR / AR devices, printers)
05 Summary
With its dual independent spring-arm structure, outstanding vibration resistance, and high-temperature capability, the FPC0519A Series is an ideal replacement solution across automotive, home appliance, industrial, and consumer electronics fields. Whether for new designs or upgrades of existing products, it delivers a more reliable and economical connection solution — and a forward-looking choice for future multi-scenario applications.
