Board to Board Connector
Floating board-to-board connectors keep signal and power transmission stable under vibration, movement, and thermal expansion.
46 filtering results in total
FILTER
-
Product Series
0.4 mm Floating Board-to-Board Series
BTB1.8-1 Series
B3501 Series
BTB0.8-12 Series
TB101/TB201 Series
B0813 Floating Series
0.5-8 High-speed Transmission Floating Series
0.8 Floating Series
0.635 Floating Series
0.5-6 Floating Series
0.5-5 Floating Series
-
Pitch
0.5 mm
0.8 mm
0.635 mm
0.4 mm
3.5 mm
-
Floating Range
Non-floating
—
XY ± 0.6 mm
XY ± 0.8 mm
XY ± 0.5 mm
X/Y/Z: ±1.0 mm
X/Y: ±0.8 mm; Z: ±0.5 mm
XY ± 0.7 mm
— (not applicable)
XY ± 0.4 mm
-
Connection Orientation
Straight (ST)
Right Angle (RA)
Right angle
Vertical
ST (straight)
-
Connector Type
Plug
Receptacle
Board-to-board receptacle
Apply
-
Series
BTB0.8-12 Series
Connector Type
Plug
Mating Part Number
123056-20XX50
Material
Pin Count
44 or 124 (40 or 120 signal + 4 power)
Pitch
0.8 mm
Floating Range
— (not applicable)
Connection Orientation
Right angle
Soldering Process
SMT
Rated Current
Signal: 0.5 A; power: 5 A max/pin
Rated Voltage
100 V AC max
Withstand Voltage
300 V AC/min
Operating Temperature Range
−55°C to +105°C
Power Terminals
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
HRS FX18 Series
Note
-

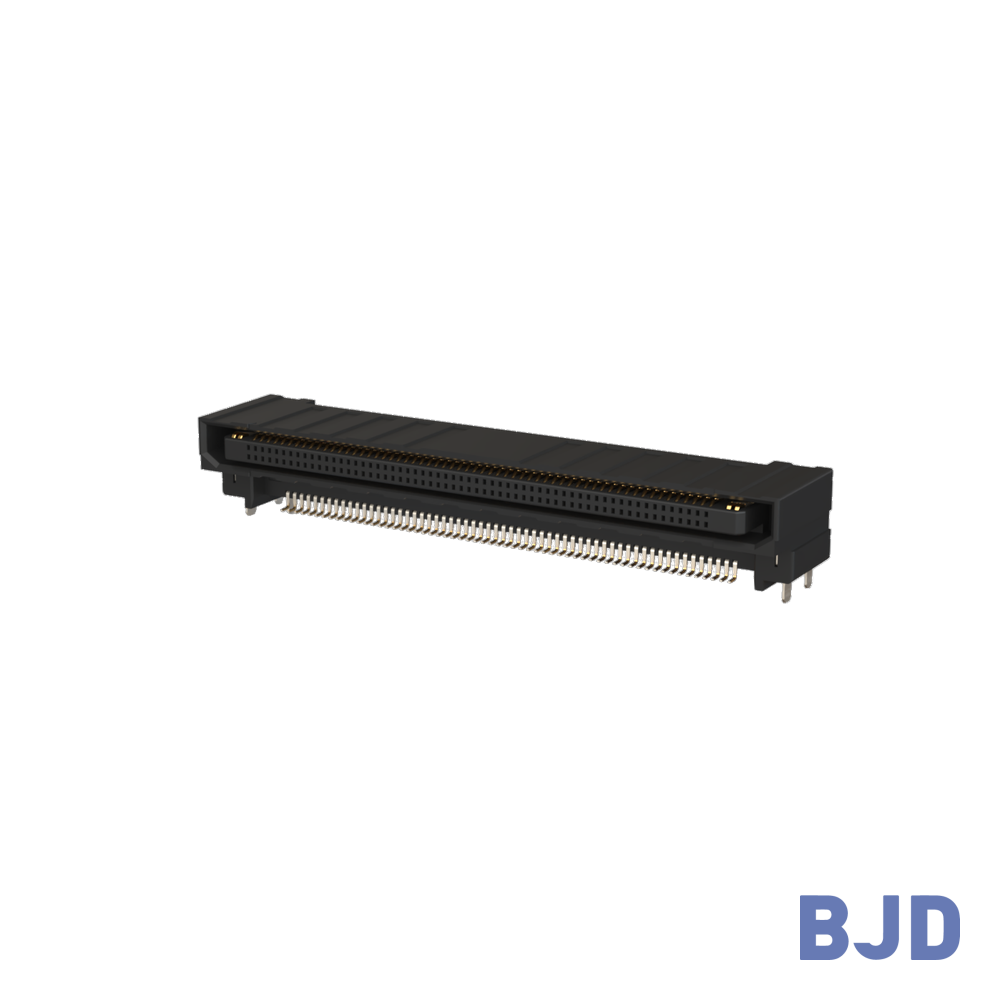

0.8 mm pitch, 44/124-position right-angle SMT board-to-board receptacle.
Explore Now
Parameter Details
Series
BTB0.8-12 Series
Connector Type
Receptacle
Mating Part Number

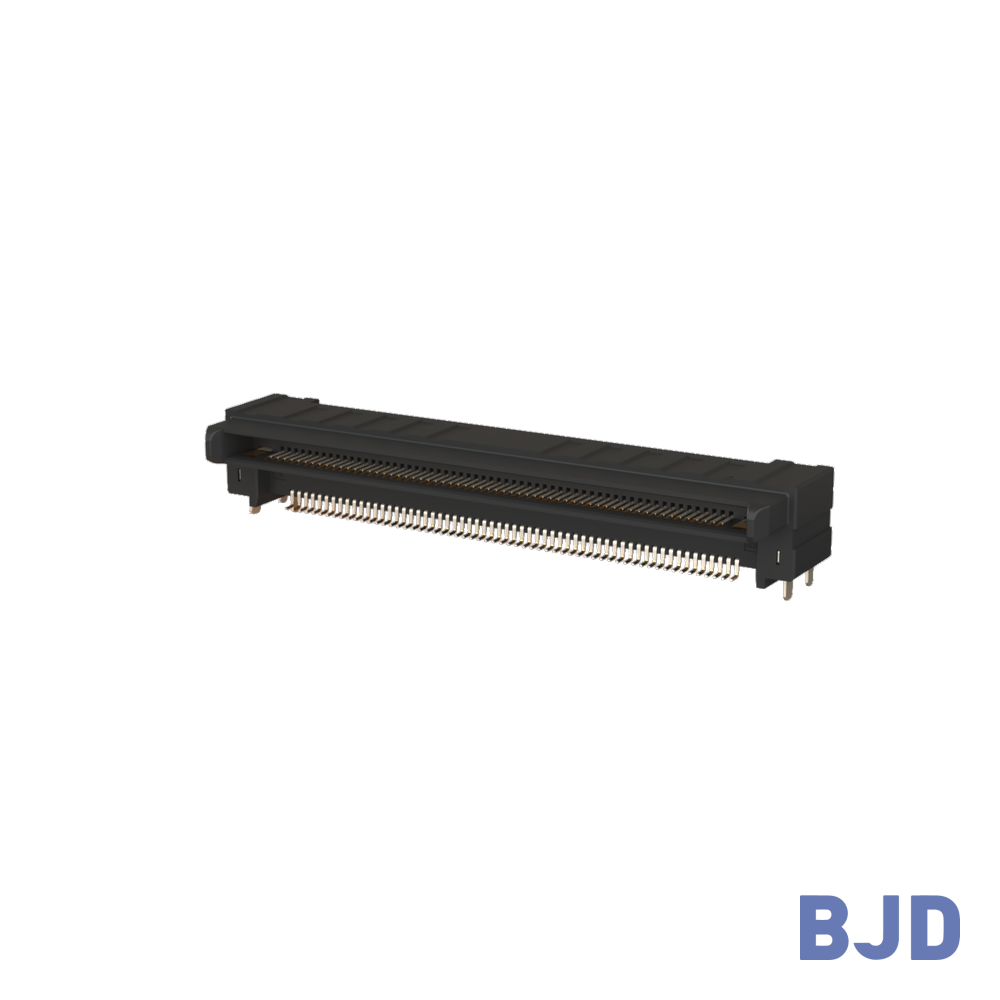

123057-20XX50
Material
Pin Count
44 or 124 (40 or 120 signal + 4 power)
Pitch
0.8 mm
Floating Range
— (not applicable)
Connection Orientation
Right angle
Soldering Process
SMT
Rated Current
Signal: 0.5 A; power: 5 A max/pin
Rated Voltage
100 V AC max
Withstand Voltage
300 V AC/min
Operating Temperature Range
−55°C to +105°C
Power Terminals
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
HRS FX18 Series
Note
-

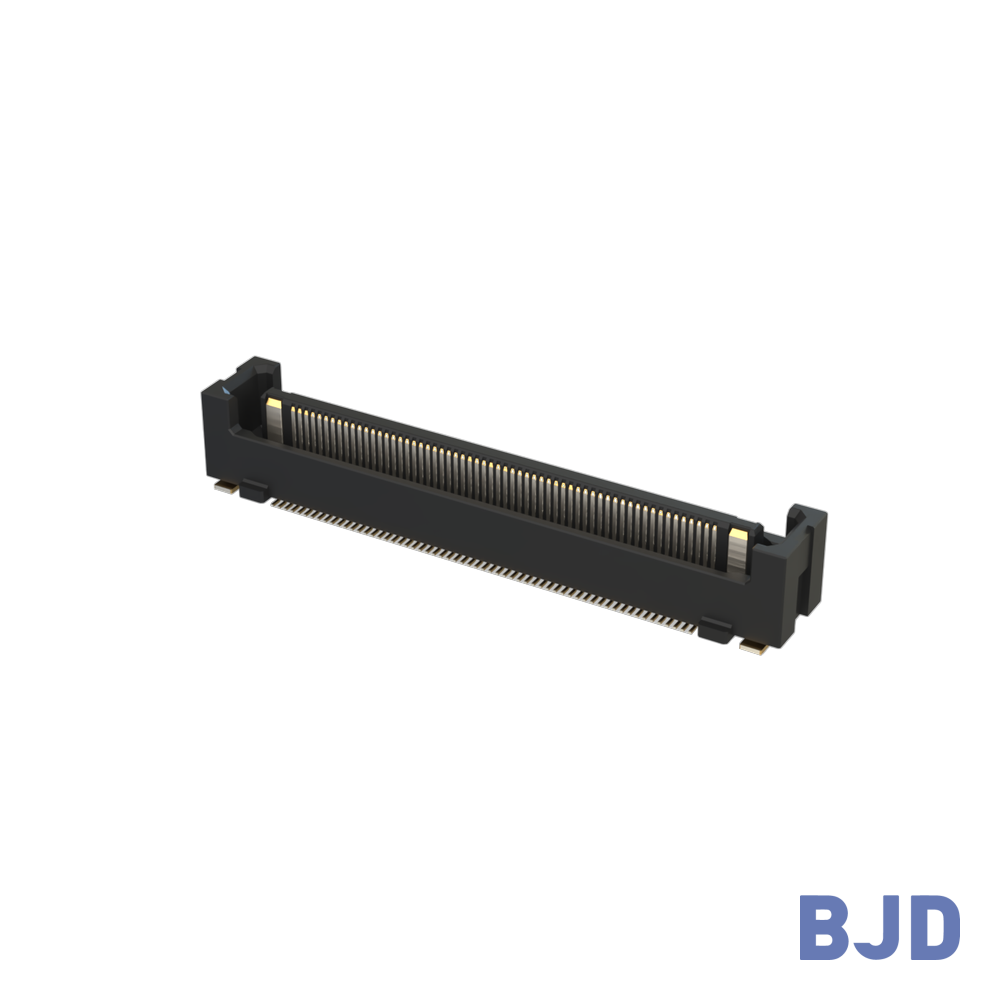

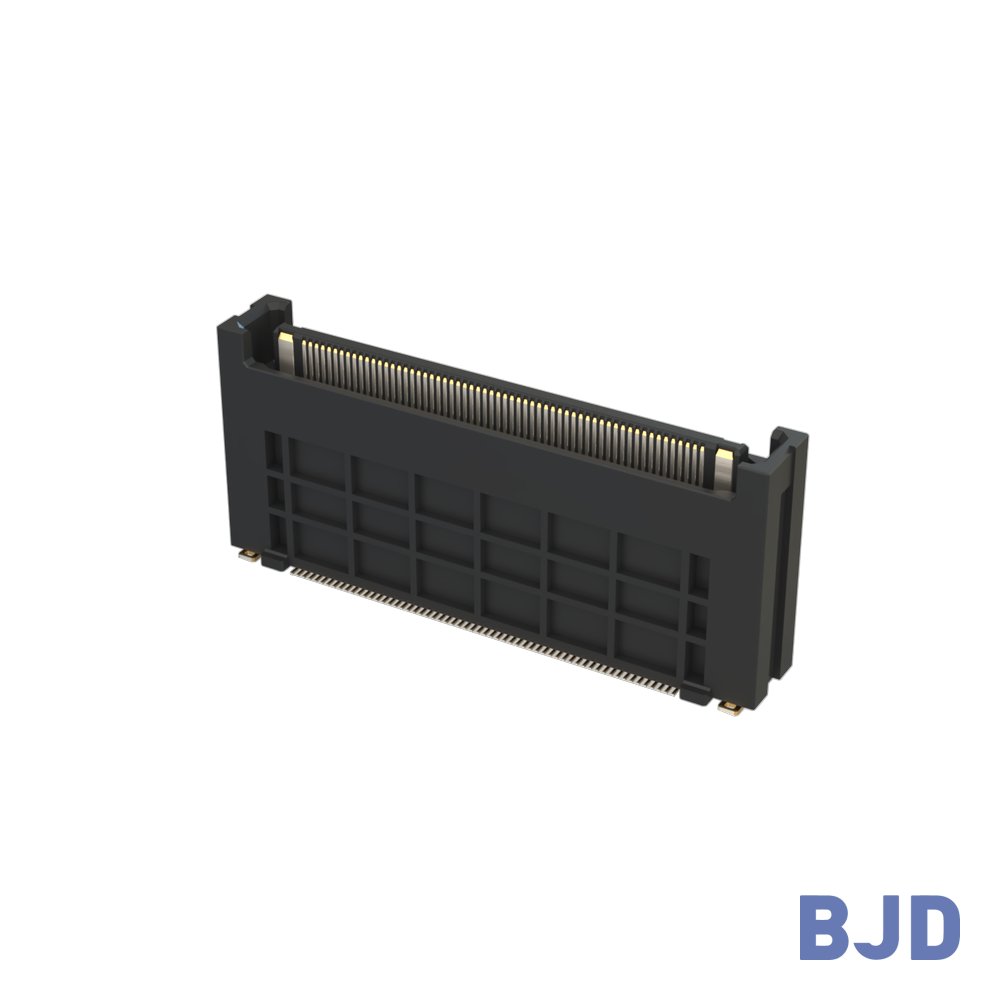

BTB0.5-8P21 PLUG, SMT, ST
Explore Now
Parameter Details
Series
Connector Type
Plug
Mating Part Number
123068-60XX50-HF, 123070-60XX50-HF
Material
Pin Count
20–160
Pitch
0.5 mm
Mated Height
21, 24, 30 mm
Floating Range
XY ± 0.8 mm
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
Signal: 0.5 A/Pin
Rated Voltage
50 V AC/DC
Withstand Voltage
Operating Temperature Range
-40°C to 125°C
Transmission Rate
16 Gbps
Supported Protocol
Power Terminals
5A × 4
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
IRISO 10143
Note
-
Series
Connector Type
Plug
Mating Part Number
123068-60XX50-HF, 123070-60XX50-HF
Material
Pin Count
20–160
Pitch
0.5 mm
Mated Height
11, 14, 20 mm
Floating Range
XY ± 0.8 mm
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
Signal: 0.5 A/Pin
Rated Voltage
50 V AC/DC
Withstand Voltage
Operating Temperature Range
-40°C to 125°C
Transmission Rate
16 Gbps
Supported Protocol
Power Terminals
5A × 4
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
IRISO 10143
Note
-
Series
Connector Type
Plug
Mating Part Number
123068-60XX50-HF, 123070-60XX50-HF
Material
Copper alloy, high-temperature-resistant resin
Pin Count
20–160
Pitch
0.5 mm
Mated Height
10, 13, 19 mm
Floating Range
Non-floating
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
Signal: 0.5 A/Pin
Rated Voltage
50 V AC/DC
Withstand Voltage
AC 250 V/min
Operating Temperature Range
-40°C to 125°C
Transmission Rate
16 Gbps
Supported Protocol
Power Terminals
5A × 4
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
IRISO 10143
Note
